Outdoor Lighting Connectors: What Fails After Installation?

Outdoor lighting rarely fails because the LED itself suddenly stops working. In many installations, the problem starts at a much smaller point: the cable connection.

A lighting system may operate normally when it leaves the factory. After months of exposure to rain, condensation, humidity, temperature changes and repeated maintenance, however, an exposed or poorly protected connection can become a weak point.

This is why connector selection deserves more attention when designing street lighting, landscape lighting, pathway lighting, architectural lighting and other outdoor electrical systems.

For these applications, a waterproof connector can provide a defined connection point while helping protect the electrical interface from environmental exposure. E-Weichat develops waterproof connector solutions for outdoor equipment where compact construction, reliable cable connection and environmental protection are important design considerations.

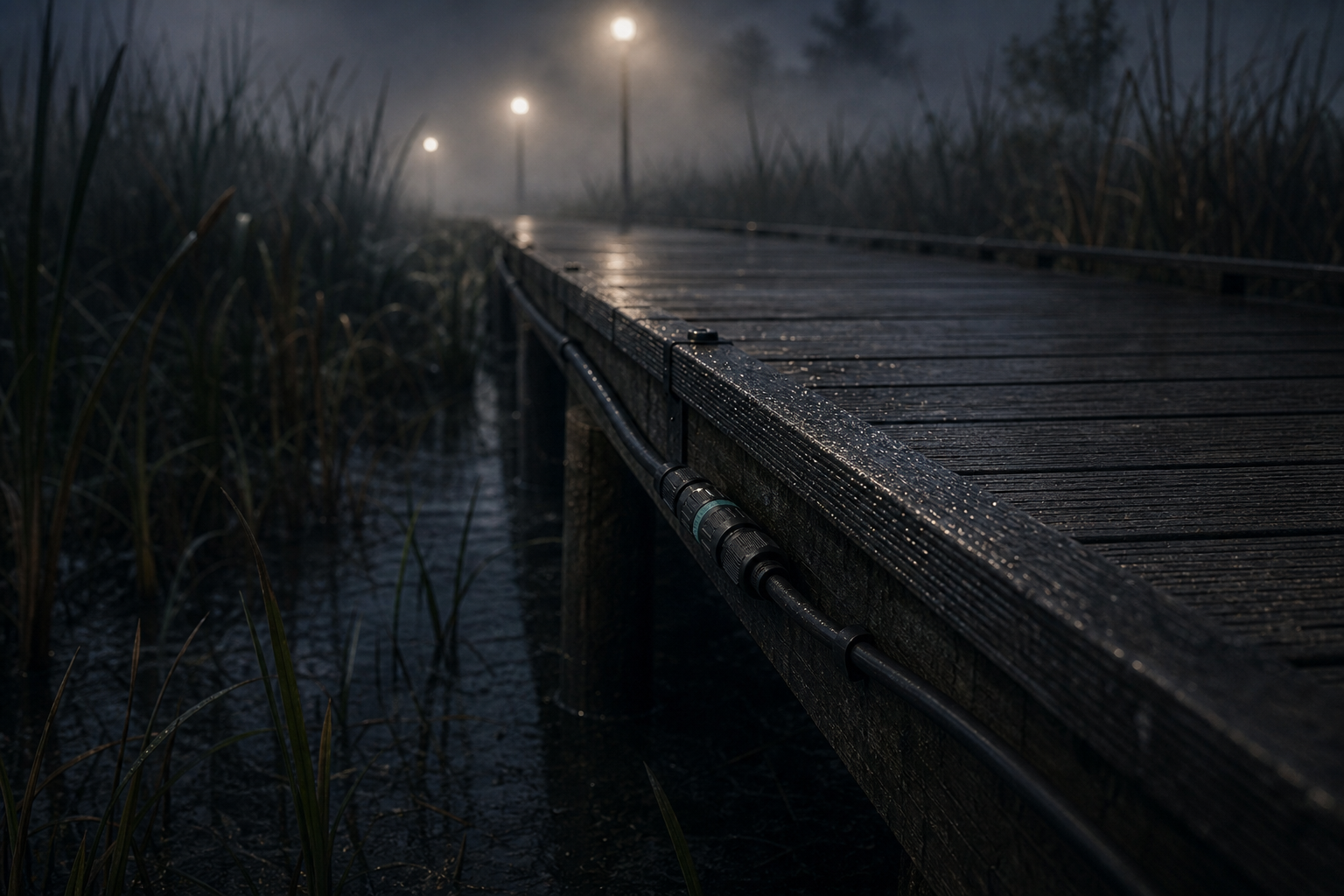

Outdoor Cable Connector

The Connection Point Is Often the Vulnerable Part

Outdoor lighting systems are usually designed around long cable runs. The cable itself may be protected inside conduit, buried underground or routed along a lighting structure.

The connection points are different.

A connector may sit directly behind a light fixture, inside a junction area, beside a pole or close to ground level. These locations can experience water accumulation, condensation and mechanical movement that the main cable does not.

That creates an important engineering distinction.

A cable may have excellent environmental resistance, but the complete installation can still be vulnerable if the connection between two cable sections is inadequately protected.

For outdoor lighting manufacturers and installers, the connector should therefore be evaluated as part of the complete cable system rather than as an isolated accessory.

Why IP68 Matters in Outdoor Lighting

IP68 is frequently specified for outdoor electrical connections because lighting installations can be exposed to water and dust throughout their service life.

However, IP68 should not be treated as a universal statement that a connector will perform under every outdoor condition.

The actual protection performance depends on the connector design, mating condition, cable diameter, sealing structure and installation method.

For an outdoor lighting project, engineers should confirm that the selected connector and cable combination are compatible with the required environmental conditions.

Rain Is Not the Only Concern

Direct rain is easy to understand. Condensation can be more difficult.

Outdoor equipment can experience repeated temperature changes between daytime and nighttime. These changes can contribute to moisture accumulation around equipment and connection points.

A connector designed with an appropriate sealing structure can help control the risk of environmental ingress at the connection interface.

Night-Time Maintenance Creates a Different Requirement

Outdoor lighting is often maintained under practical constraints that indoor equipment does not have.

A failed street light may need to be serviced at night. Landscape lighting may be installed across large areas. Architectural lighting may be mounted in difficult-to-access locations.

In these situations, maintenance time matters.

A connector that provides a defined and secure connection can be easier to handle during replacement than a cable that requires cutting, stripping and reterminating in the field.

This does not mean every lighting system should use a quick-disconnect connector. Permanent connections can still be appropriate for some installations.

The important point is to decide at the design stage whether the connection is expected to be serviced, replaced or reconfigured during the product's operating life.

Connector Size Can Affect Lighting Installation

Outdoor lighting products are increasingly compact. Modern fixtures may contain LED modules, drivers, sensors and control electronics within relatively small housings.

A large connection interface can make cable routing more difficult and may affect the overall enclosure design.

For equipment designers, a compact waterproof connector can be useful when space around the cable entry is limited.

Check More Than the Connector Diameter

Connector selection should include the complete installation envelope.

Connector body dimensions
Cable diameter
Cable bending radius
Locking structure
Available mating clearance
Panel or enclosure thickness
Required cable routing direction

These details become particularly important when several lighting fixtures are installed close together.

Outdoor Lighting Also Means Temperature Changes

Outdoor equipment does not operate in a stable indoor environment.

The connector may experience temperature changes throughout the day and across seasons. Materials used in the housing and sealing system therefore need to be considered together with the expected operating environment.

For OEM lighting manufacturers, it is useful to evaluate the connector as part of the actual cable assembly rather than relying only on a catalog photograph or a general waterproof claim.

Where Waterproof Connectors Are Commonly Considered

Street and Roadway Lighting

Street lighting often involves long cable routes and connection points distributed across poles or equipment enclosures.

A protected connector can provide a defined interface between the fixture and cable assembly while helping manage environmental exposure.

Landscape and Garden Lighting

Landscape lighting can be installed close to soil, vegetation and irrigation systems.

These installations may face moisture from several directions rather than only direct rainfall.

Connector placement and cable routing are therefore important considerations during installation.

Architectural and Commercial Lighting

Architectural lighting often prioritizes clean installation and compact equipment design.

For these applications, the connector needs to fit within the available housing while maintaining the required environmental protection.

Don't Confuse Waterproofing With Chemical Resistance

This is an important point for professional buyers.

An IP68 rating addresses defined ingress protection conditions. It does not automatically mean that the connector is resistant to every cleaning chemical, fertilizer, oil or other substance that may exist around an outdoor installation.

If a lighting system is installed in a particular chemical environment, the housing, sealing materials and cable jacket should be evaluated against the actual substances involved.

What Outdoor Lighting OEMs Should Ask a Connector Supplier

Before selecting a connector, engineering and purchasing teams can ask several practical questions:

What IP rating applies to the specific connector model?
What cable diameter range is supported?
How is the cable sealed at the connector entry?
What locking structure is used?
Is the connector suitable for the planned installation space?
What testing or product documentation is available?
Can cable assemblies or customized configurations be supplied?

These questions are more useful than simply asking whether a connector is “waterproof.”

Why Connection Design Should Be Decided Early

Changing a connector after the lighting housing, cable routing and production tooling have already been finalized can create unnecessary engineering work.

For OEM projects, connector selection should ideally happen while the enclosure, cable exit and wiring architecture are still being designed.

E-Weichat supports waterproof connector development and OEM/ODM cable-related requirements, allowing connector configuration and cable requirements to be discussed according to the equipment design.

FAQ

1. Is an IP68 connector suitable for outdoor lighting?

It can be suitable for outdoor lighting where the required environmental conditions match the connector's specified IP68 test conditions. The complete connector, cable and installation method should be evaluated together.

2. Can waterproof connectors be used for landscape lighting?

Yes, waterproof connectors can be considered for landscape lighting, particularly where cable connection points may be exposed to moisture. Cable routing and installation conditions should also be considered.

3. Can E-Weichat customize connectors for outdoor lighting?

E-Weichat provides waterproof connector and OEM/ODM cable-related solutions. Specific connector, cable and assembly requirements can be evaluated according to the lighting equipment design.
