When a Solar Connector Becomes the Weak Point in a PV System

A photovoltaic system is designed to operate outdoors for years. Solar panels, mounting structures, inverters, cables and electrical protection devices all need to perform under changing weather conditions. Yet one relatively small component can have a significant impact on the reliability of the complete installation: the connector.

A solar connector is more than a simple connection point between two cables. In a PV installation, it may be exposed to sunlight, rain, humidity, dust, temperature changes and mechanical stress throughout its service life. If the connection is not correctly selected or assembled, the resulting problem can extend beyond the connector itself.

For solar equipment manufacturers, EPC contractors, photovoltaic system integrators and electrical distributors, connector selection should therefore be based on the actual installation environment rather than price or appearance alone.

Why Solar Connectors Matter in Outdoor PV Systems

Photovoltaic installations are fundamentally different from many indoor electrical applications. A solar cable connection may remain outdoors for years with limited access for inspection.

During this period, the connection can be exposed to:

Rain and water exposure
High humidity and condensation
Dust and airborne particles
Daily and seasonal temperature changes
UV exposure depending on installation location
Cable movement during installation and maintenance
Mechanical stress around cable entry points

This makes the selection of a waterproof solar connector particularly important for PV applications where environmental protection is required.

The connector needs to work as part of the complete cable assembly. Its sealing structure, cable compatibility, mating method and installation procedure all influence the final connection.

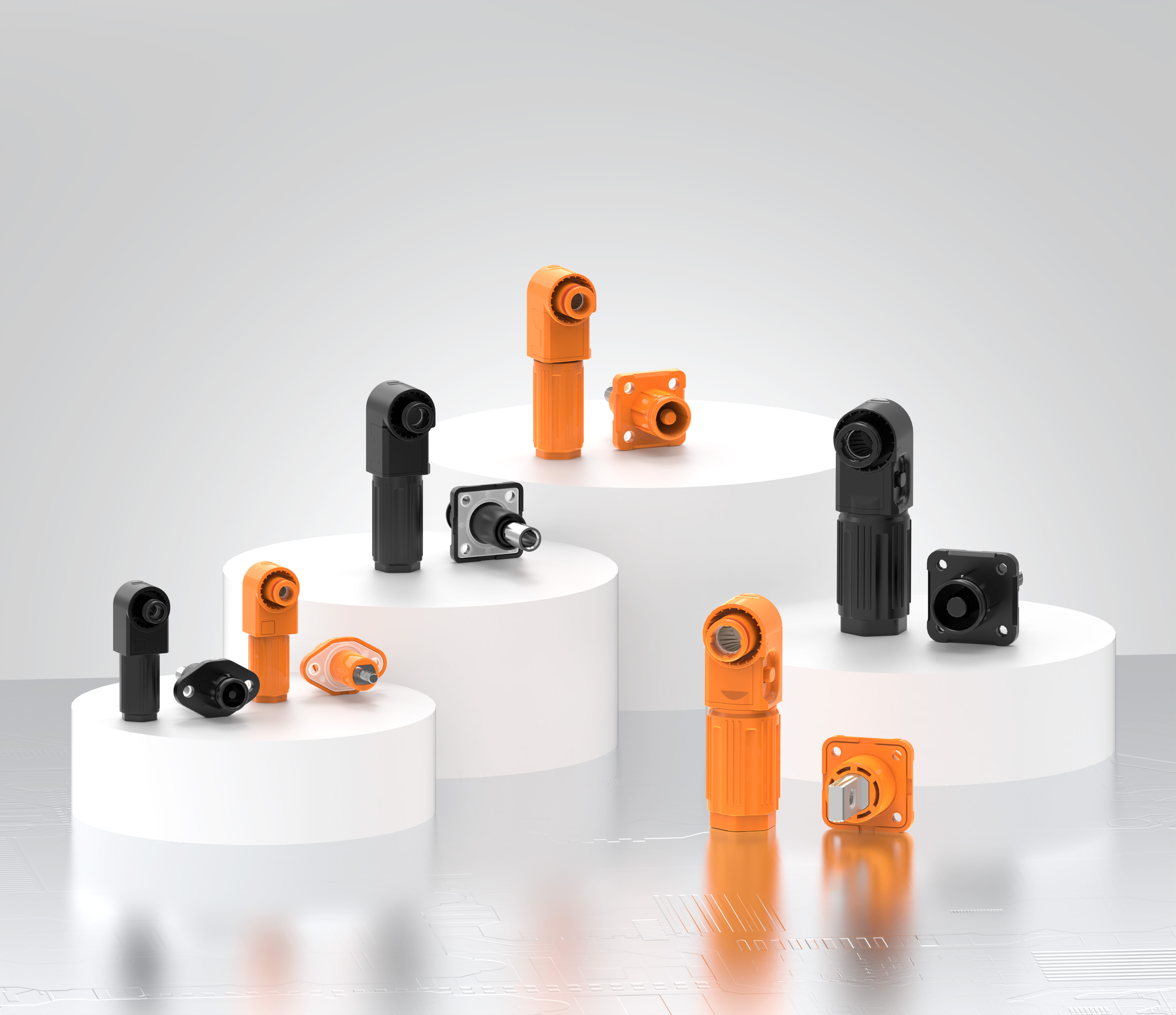

solar connectors

Application Case: Solar Cable Connections in an Outdoor PV Installation

Consider a commercial photovoltaic installation where multiple solar modules are connected across an outdoor array. The cables are routed beneath the modules and connected to the rest of the PV electrical system.

The engineering team needs a connection solution that can tolerate the outdoor environment while remaining practical for installation and maintenance.

The project requirements include:

Reliable electrical connection
Protection against dust and water ingress
Compatibility with the selected PV cable
Secure mating after installation
Suitable mechanical cable retention
Consistent assembly across multiple connection points

In this situation, a properly selected solar cable connector becomes part of the system reliability strategy rather than simply an accessory used to join two cables.

IP68 Protection Should Be Evaluated in the Complete Assembly

For demanding outdoor applications, an IP68 solar connector may be considered where a high level of protection against dust and water ingress is required.

However, an IP rating should not be viewed in isolation.

The final performance of an assembled connection can depend on the connector, cable diameter, sealing components and installation method. If the cable does not fall within the specified sealing range, or if the connector is not correctly assembled, the expected protection may not be achieved.

For this reason, engineers should verify the IP rating and installation requirements of the exact connector model being considered.

For E-Weichat products specified with IP68 protection, the rating should be understood according to the applicable product specifications and test conditions. It should not be interpreted as a universal guarantee for every possible installation environment.

Why Cable Compatibility Matters

A common mistake in connector selection is focusing on the connector body while overlooking the cable.

The cable outer diameter, conductor configuration and application requirements need to match the connector design. The sealing system must be compatible with the cable being used.

For a PV cable connector, this is particularly important because photovoltaic installations can contain long cable runs and numerous connection points. A small installation issue repeated across a large solar array can become a significant system-level concern.

Mechanical Stress Can Affect Solar Cable Connections

Outdoor PV installations are not completely static.

Cables can be moved during module installation, maintenance or replacement. They may also experience mechanical stress from cable routing, support structures or handling during installation.

A connector should therefore be evaluated together with its cable management arrangement.

Suitable strain relief can help reduce unnecessary mechanical stress around the connection point. Correct cable routing and adequate support can also help prevent excessive pulling or bending forces from being transferred directly to the connector.

Connection Security Matters After Installation

A solar connector may be installed once but remain in service for a long period. The connection needs to remain properly mated after installation and under the mechanical conditions expected in the application.

Depending on the connector design, a locking or threaded mating structure can help maintain a secure connection. The appropriate design depends on the installation requirements and how frequently the connection needs to be serviced.

For PV system integrators, connector mating should be treated as part of the installation procedure rather than an insignificant final step.

Temperature Changes Are Part of the PV Environment

Solar equipment operates outdoors, which means connectors and cables can experience repeated temperature changes.

During the day, equipment exposed to direct sunlight can become significantly warmer than the surrounding air. At night, temperatures may fall substantially. Seasonal conditions can create another layer of thermal variation.

These environmental changes make material selection, sealing design and cable compatibility important considerations when evaluating a solar connector for outdoor photovoltaic systems.

Engineers should review the specified operating temperature range of the exact product and confirm that it matches the intended application.

Installation Quality Is Just as Important as Connector Specification

Even a well-designed connector can perform poorly if it is incorrectly installed.

For solar projects, installation teams should follow the manufacturer's recommended assembly procedure. Important considerations may include cable preparation, conductor termination, connector mating and tightening requirements where applicable.

The connection should also be inspected before the system is placed into long-term operation.

This is particularly important for large photovoltaic projects. A solar array may contain hundreds or thousands of electrical connection points. Consistent installation procedures help reduce variation between individual connections.

Certification and Documentation Should Be Verified by Model

Professional PV buyers often require technical documentation when qualifying components for a project.

Where TUV certification or other applicable approvals are required, buyers should verify the documentation for the exact solar connector series and model being evaluated.

Certification should not be assumed to apply automatically to every product manufactured by a supplier. The relevant certification, test report, applicable standard and product configuration should be confirmed during technical evaluation.

This approach is especially important for OEMs, EPC contractors and distributors that need to maintain clear technical documentation throughout the product qualification process.

How Engineers Should Select a Solar Connector

Before purchasing a solar connector, engineering and procurement teams should define the actual application requirements.

Key questions include:

What voltage and current will the connection handle?
What type and size of PV cable will be used?
What is the cable outer diameter?
Will the connection be exposed to rain or water?
Is an IP68 protection level required?
What operating temperature range is expected?
Will the cable experience mechanical stress?
How frequently will the connection be accessed?
Are specific certifications or test documents required?
Does the connector need to integrate with an existing PV cable system?

These questions help move the selection process from a generic product search toward a technically appropriate solution.

Reducing Long-Term PV Maintenance Risk

The cost of a solar connector is usually small compared with the total investment in a photovoltaic system. However, the cost associated with troubleshooting a failed connection can be much higher.

Technicians may need to locate the affected connection, access the installed equipment, replace the component and test the system again. On larger installations, repeated maintenance work can increase both labor costs and downtime.

This is why professional buyers often evaluate connector reliability from a total application perspective rather than comparing unit prices alone.

A properly specified waterproof solar connector, combined with compatible cable selection and consistent installation, can help reduce avoidable connection-related risks in outdoor PV systems.

Solar Connector Selection Is a System-Level Decision

Reliable photovoltaic systems depend on many individual components working together. A solar connector may be physically small, but it forms part of the electrical path between critical components.

For outdoor PV applications, engineers should consider electrical performance, sealing, cable compatibility, mechanical retention, temperature range and installation requirements together.

For applications requiring high environmental protection, IP68-rated connector solutions can be evaluated according to the project's specific requirements. Where TUV certification or other approvals are required, the documentation for the exact product model should also be reviewed during supplier qualification.

E-Weichat provides waterproof connector solutions for photovoltaic, energy and outdoor electrical applications. Solar connector selection can be supported according to cable dimensions, electrical requirements, environmental conditions and project-specific connection requirements.

Frequently Asked Questions

What should I consider when choosing a solar connector?

Key factors include voltage, current, cable size, cable outer diameter, environmental exposure, required IP protection, operating temperature, mating structure and applicable certifications. The connector should be matched to the complete PV cable assembly.

Is an IP68 solar connector suitable for outdoor photovoltaic installations?

An IP68-rated connector can be considered for applications requiring a high level of protection against dust and water ingress. However, the exact product specifications, cable compatibility and installation procedure must also be evaluated.

Does TUV certification apply to all solar connectors from one manufacturer?

Not necessarily. Certification should be verified against the exact connector series or model. Buyers should request the relevant technical documentation and confirm that the certification applies to the product configuration used in the project.
