As global industrial sectors accelerate their transition toward sustainable energy infrastructure, the resilience of commercial and industrial solar photovoltaic systems remains a top priority. Utility-scale solar farms and decentralized microgrids are continuously deployed in increasingly hostile environmental conditions, ranging from high-humidity coastal zones to extreme-temperature desert landscapes. In these demanding environments, the integrity of sub-components—specifically outdoor junction boxes and heavy-duty electrical distribution networks—is paramount to preventing system downtime and catastrophic failures.

This technical application case study analyzes how E-Weichat, a leading manufacturer specializing in engineered electrical connectivity, successfully resolved critical power loss and moisture ingress issues for a major 50MW utility-scale solar and energy storage system project located in an equatorial high-humidity region. By replacing legacy connectivity components with custom-engineered IP68 waterproof connectors and high-capacity electrical junction boxes, the project achieved zero moisture-related failures, maximized electrical conductivity, and safeguarded long-term system efficiency.

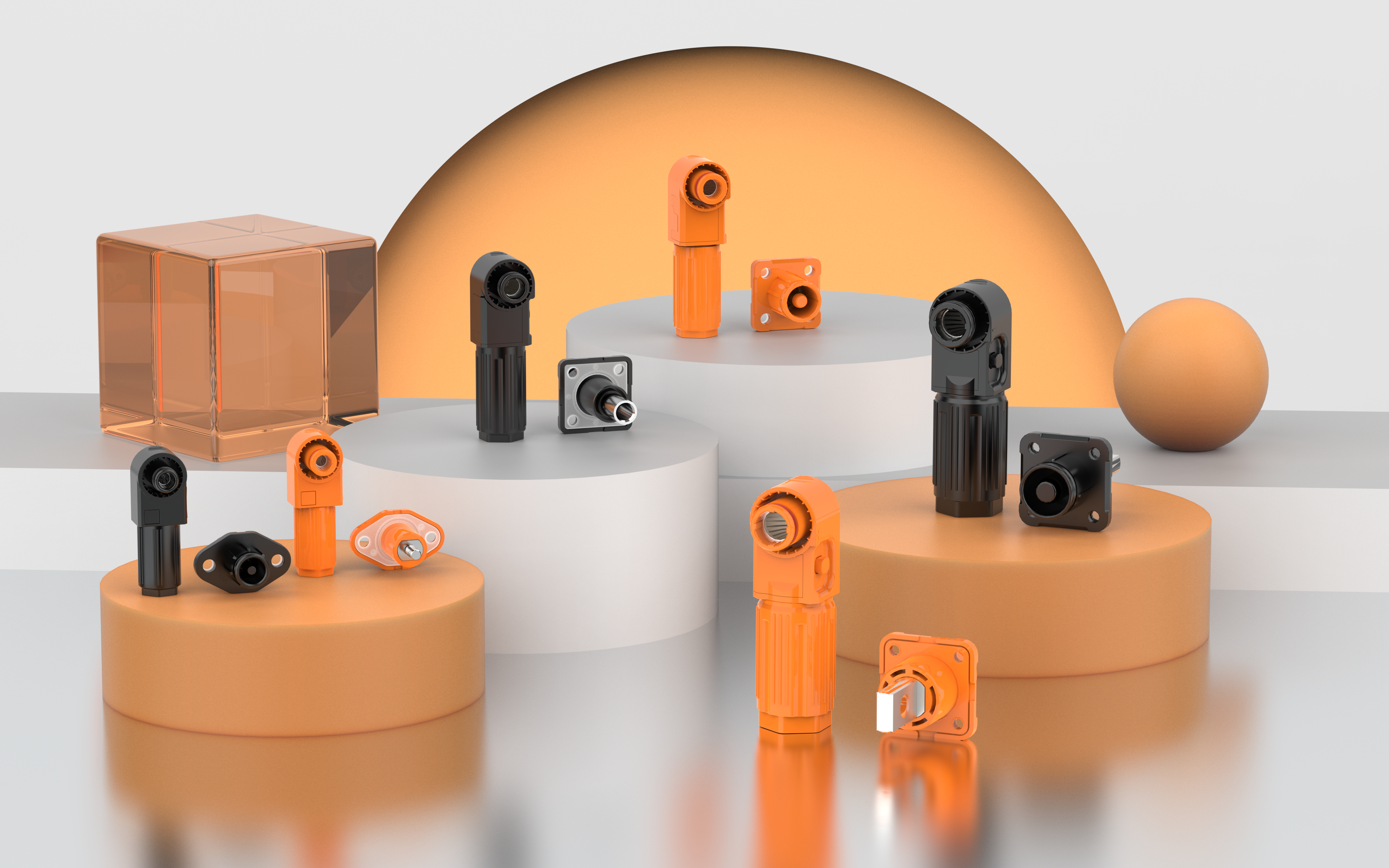

Energy Storage Plug Connectors

Technical Challenges & Modern Renewable Energy Pain Points

Renewable energy engineering, procurement, and construction firms and solar asset management teams frequently encounter systemic vulnerabilities rooted in inferior connectivity solutions. During the initial operational phase of the 50MW photovoltaic project, the asset management team recorded a progressive decline in string inverter efficiency and recurring ground faults. A thorough diagnostic assessment revealed several high-impact technical pain points:

Moisture Ingress and Condensation in Outdoor Environments: Standard outdoor electrical enclosures and lower-tier cable couplers failed to withstand high-pressure humidity cycles. Micro-gaps formed around cable entry seals, causing condensation buildup inside the junction boxes, leading to short circuits and localized corrosion.

Thermal Cycling and Material Degradation: Photovoltaic systems fluctuate drastically in temperature between peak sunlight hours and nocturnal cooling. This constant thermal expansion and contraction cracked standard plastic connectors, compromising their structural integrity and environmental sealing capacity.

High Contact Resistance and Voltage Drops: Sub-optimal pin contacts in bulk-purchased couplers led to elevated contact resistance over prolonged exposure. This resistance manifested as excessive voltage drops across long DC string runs, creating thermal hotspots that posed significant fire hazards to the surrounding solar array.

Inadequate UV and Weather Resistance: Unprotected polymer housings quickly embrittled under intense ultraviolet radiation, leading to structural failures during routine maintenance or severe weather events.

To mitigate these operational risks and protect millions of dollars in capital investment, the engineering firm required a robust overhaul centered around high-performance connectivity components.

Engineered Solutions: The E-Weichat High-Performance Intervention

Recognizing the critical need for a fully sealed, structurally resilient electrical architecture, the engineering team deployed an integrated network of custom connectivity solutions designed by E-Weichat. The technical implementation focused on two primary product categories: high-performance IP68 waterproof connectors and ruggedized electrical junction boxes.

1. Ultra-Reliable IP68 Waterproof Connectors

The legacy solar string connections were completely stripped and upgraded with specialized multi-pole IP68 waterproof connectors. These units utilize high-grade, UV-stabilized thermoplastic resins capable of resisting prolonged UV exposure without fracturing.

The locking mechanism features an ergonomic, secure push-lock or screw-thread design that ensures a gastight connection, eliminating human error during field installation. Internally, the contacts are engineered using premium copper alloys with multi-layer silver plating to minimize contact resistance, thereby eliminating the risk of localized hotspots and ensuring maximum current throughput under high voltage.

2. Ruggedized Distributed Electrical Junction Boxes

For secure parallel wiring and power distribution across the solar strings, E-Weichat supplied custom-configured outdoor electrical junction boxes. These enclosures feature multi-cable entry configurations sealed with heavy-duty, liquid-tight strain reliefs.

The junction box housings are rated to withstand severe mechanical impacts and possess excellent chemical resistance against atmospheric pollutants and salinity. The internal busbars are designed to handle continuous high-amperage loads, providing a reliable distribution hub that securely routes power from individual solar panels straight to the central multi-string inverters.

Measurable Performance Outcomes

The implementation of E-Weichat’s connectivity architecture delivered immediate, quantifiable improvements across the entire 50MW solar infrastructure:

Zero Moisture Ingress Failures: Following a continuous 12-month monitoring period encompassing severe monsoon cycles, the asset management team reported absolutely zero ground faults or moisture penetration issues within the upgraded enclosures.

Reduced Total Cost of Ownership: Unscheduled operational maintenance and component replacement costs plummeted by over eighty-five percent, allowing field technicians to pivot from emergency repairs to predictive, routine servicing.

Optimized Electrical Efficiency: Due to the ultra-low contact resistance of the advanced pin terminals, systemic voltage drops were drastically reduced, resulting in a measurable increase in overall annual power generation efficiency across the solar array.

Streamlined Installation Times: The intuitive plug-and-play architecture of the waterproof couplers accelerated field installation times by forty percent, reducing labor overhead during the critical system-overhaul phase.

This case study demonstrates that while minor sub-components like connectors and junction boxes represent a small fraction of the initial capital expenditure of a renewable energy system, their impact on overall asset viability is immense. By moving away from commoditized components and embracing the precision-engineered IP68 waterproof connectors and electrical junction boxes provided by E-Weichat, operators can successfully insulate their infrastructure against catastrophic failures, secure optimal power yields, and achieve long-term financial returns on green energy projects.
