In high-stakes emergency medical care, equipment failure is simply not an option. From field rescue operations in remote mountain terrains to high-speed transport in emergency response vehicles, portable medical monitors, defibrillators, and diagnostic imaging units must deliver continuous, uninterrupted performance.While significant engineering focus goes into battery efficiency, display clarity, and diagnostic sensor accuracy, the physical connections linking power sources and external patient leads often represent a vulnerable link. Unintentional cable tugs, fluid exposure, and constant transport vibration can cause connection interruptions at critical moments.This case study examines how a specialized medical device manufacturer resolved intermittent power loss and fluid ingress issues in portable diagnostic monitors by integrating high-reliability, self-locking panel-mount interconnects engineered for harsh, unpredictable environments.

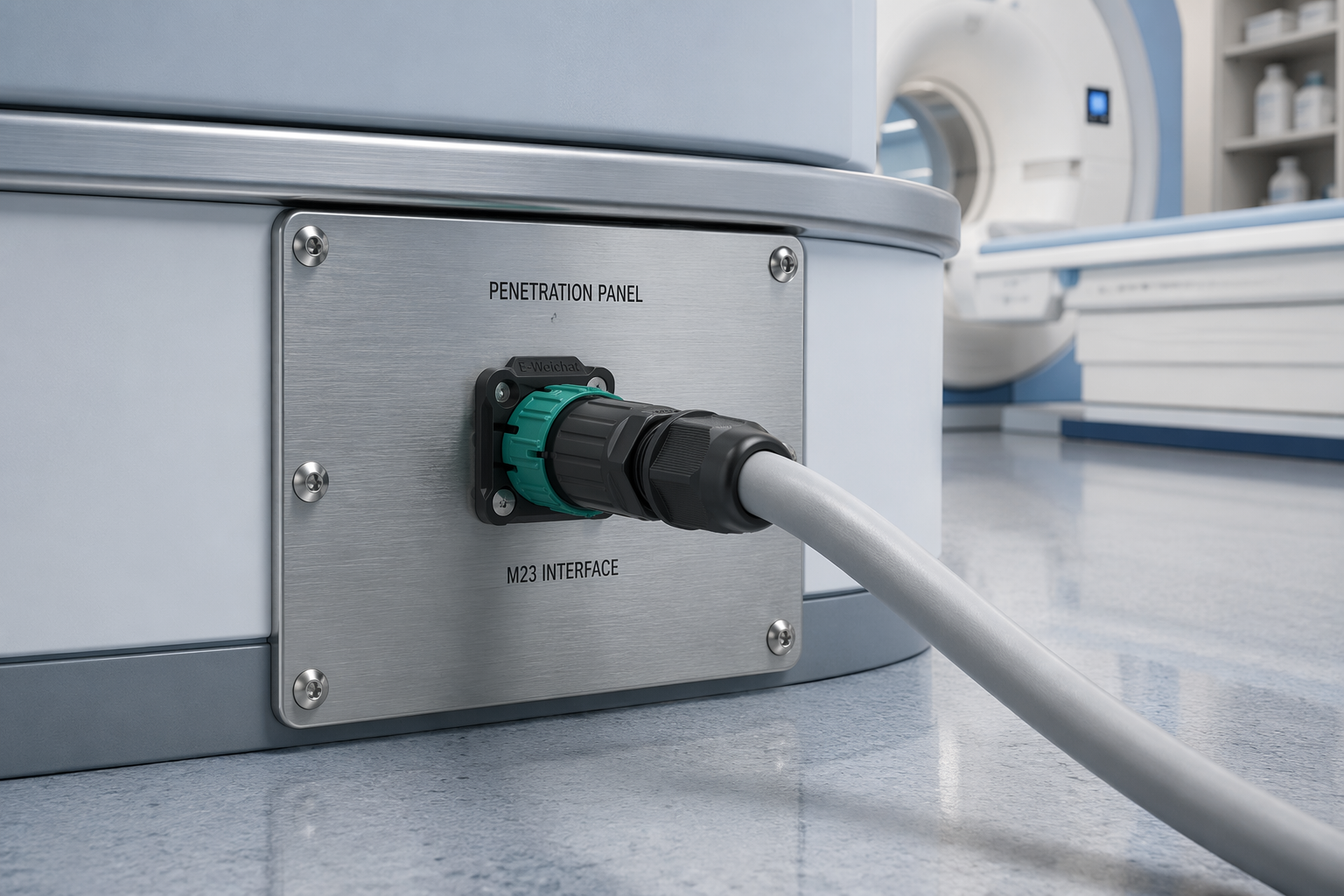

Waterproof Wire Connectors

The Operational Challenge: Power Instability in Extreme Field Environments

A global manufacturer of portable emergency diagnostic monitors faced field performance challenges across their fleet of rescue-grade medical devices. Designed for use by first responders, paramedics, and search-and-rescue teams, these devices operate under intense physical stress, including:

High-Vibration Mobile Transport: Devices mounted in helicopters and ground ambulances experience perpetual mechanical vibration and sudden acceleration shocks during transit.

Aggressive Fluid Exposure: Emergency response environments expose equipment to heavy rainfall, saline solutions, bodily fluids, and frequent chemical disinfectant washdowns.

Rapid Deployment Stress: Paramedics operating in low-light or high-stress environments must connect power and sensor cables instantly, often leading to side-load strain or misaligned insertion attempts.

Root Cause Analysis

An engineering review of returned field units revealed three primary operational failure modes:

1. Accidental Disconnection from Cable Tension: Standard push-pull or friction-fit connectors lacked sufficient latching force. When paramedics moved equipment around patients rapidly, accidental cable snags pulled the connector partially out of its socket, causing immediate loss of power or signal feed.

2. Fluid Ingress Behind Panel Mounts: During field washdowns and rain exposure, liquids seeped through secondary panel seals. Over time, moisture accumulation behind the front panel corroded delicate internal circuit contacts, resulting in short circuits.

3. Contact Pin Deformation: Rushed, blind insertions by operators wearing thick protective gloves frequently damaged exposed male contact pins, requiring expensive factory panel replacements.

To protect patient safety and maintain brand reputation, the manufacturer required a secure, fluid-proof, and mistake-proof connection interface.

The Technical Solution: IP68 Sealed Self-Locking Panel Interfaces

The engineering team executed a complete redesign of the device’s power and signal entry panel, replacing traditional multi-piece gland setups with unified, panel-mount self-locking connection nodes.

Key Structural Advantages Incorporated:

Positive Self-Locking Bayonet Mechanism: The upgraded interface incorporates a tactile, self-locking mechanism. Once engaged, internal detents hold the coupling ring firmly locked, preventing accidental disengagement under vibration, impact, or sudden cable tugs up to high pull forces.

IP68 Ingress Protection: Engineered with multi-stage O-ring seals, the interface achieves verified IP68 protection against continuous liquid immersion and fine dust particles, ensuring the internal electronics remain completely dry during severe storms or fluid splashes.

Chemical-Resistant Housing Materials: The connector housing utilizes high-grade synthetic polymers and corrosion-resistant alloys capable of withstanding daily wipe-downs with harsh medical-grade sterilizing agents and isopropyl alcohol.

Polarized Keyways for Blind Mating: Machined internal keyways ensure that connectors can only mate in the correct orientation, allowing paramedics to achieve instant, error-free connections by feel alone in complete darkness.

Future Trends in Mobile Emergency Care Connectivity

As medical technology becomes increasingly decentralized and mobile, the demand for rugged, reliable interconnects continues to rise. Future medical equipment designs will increasingly rely on compact, high-density panel connectors that combine power delivery and high-speed data transmission into a single, fully sealed interface.By eliminating connection vulnerabilities at the enclosure boundary, medical device manufacturers can deliver equipment that performs flawlessly in the most challenging conditions on Earth—ensuring that life-saving technology stays powered when every second counts.
