Modern urban architecture relies heavily on sophisticated exterior lighting to accentuate building facades, highlight public parks, and enhance commercial plazas. From dynamic LED wall washers on high-rise towers to ground-recessed spotlights along pedestrian walkways, these lighting installations represent significant financial investments for developers and municipalities.However, unlike indoor illumination, outdoor architectural and landscape lighting systems operate in relentless contact with harsh environmental elements. The electrical distribution network powering these fixtures must remain fully functional while exposed to driving rain, shifting ground moisture, intense solar radiation, and fluctuating ambient temperatures. In coastal regions, the presence of airborne salt spray further accelerates material breakdown. When an exterior lighting array fails, identifying and repairing the breach is both labor-intensive and damaging to the client’s brand reputation.

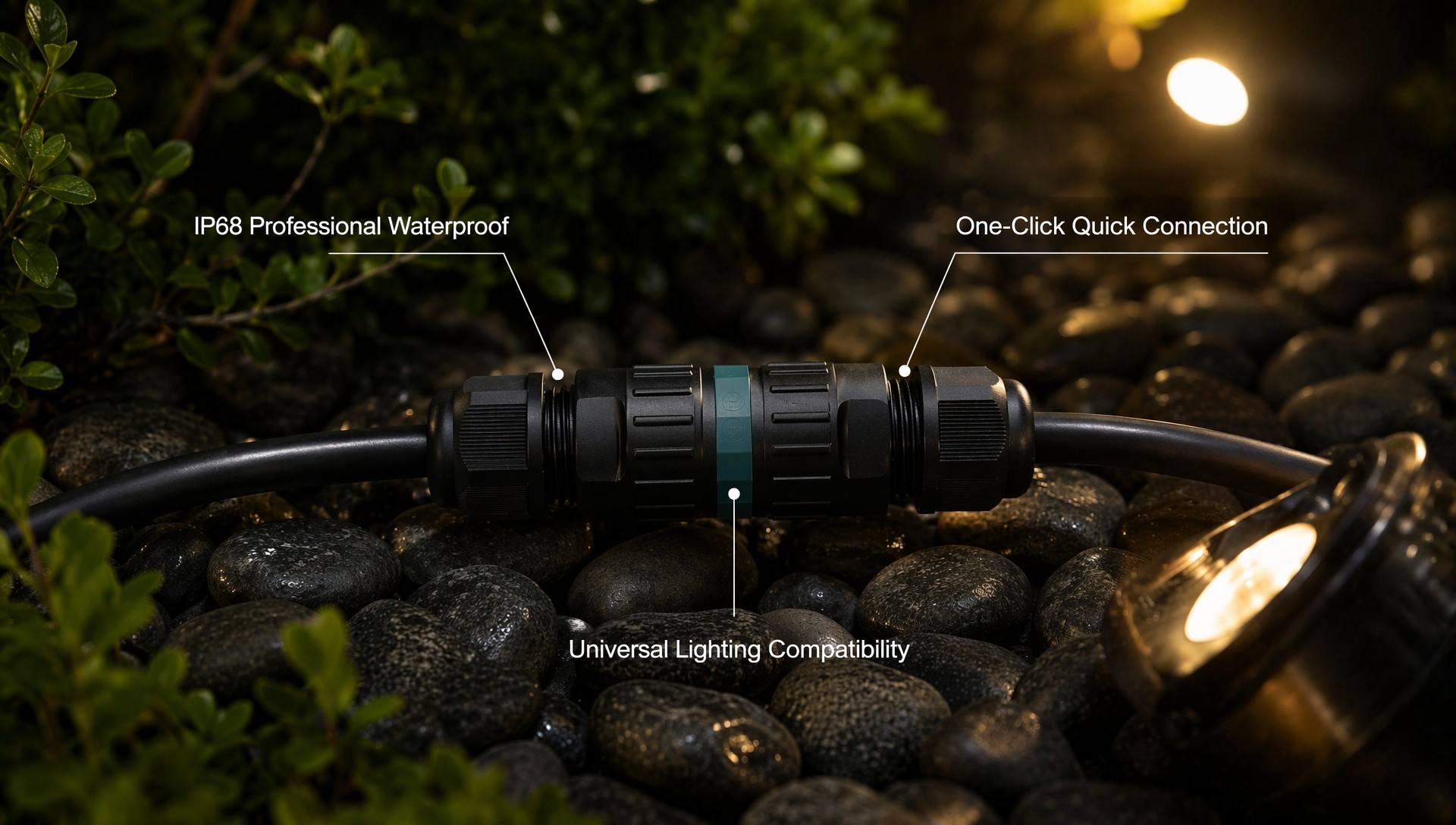

Cable Connector IP68 Waterproof

The Root Cause: Subterranean Infiltration and Thermal Vacuuming

For lighting designers and electrical contractors, the most frustrating issues in field operations stem from "subterranean lighting connection failure." Recessed landscape fixtures and underground power feeds are continuously surrounded by damp soil, pooling rainwater, and organic matter.

Standard junction practices often fail over time due to a physical phenomenon known as thermal vacuuming. As outdoor LED lights operate, the heat generated by the electronic components expands the air trapped inside the wiring pathways. When the fixtures are turned off at night or hit by a sudden cold downpour, the internal temperature drops rapidly, creating a negative pressure differential inside the cable lines. This subtle vacuum effect actively draws surrounding groundwater and ambient moisture directly into the connection housing through microscopic gaps in poorly sealed joints. Over time, accumulated water contacts live conductors, triggering ground-fault circuit interrupters, corroding copper contacts, and causing unexpected section blackouts across the entire lighting grid.

Engineering Criteria for Weatherproof LED Fixture Connections

Ensuring long-term architectural lighting connection reliability requires moving away from traditional field splicing and generic tape solutions. Lighting integrators must specify dedicated, factory-tested connection systems designed specifically to isolate electrical pathways from soil moisture and corrosive atmospheres.

To achieve decades of trouble-free operation, high-performance weatherproof LED fixture connections must fulfill several strict technical criteria:

Certified Environmental Sealing: The primary connection points must provide certified IP67 or IP68 ingress protection. This guarantees that even when buried in saturated soil or temporarily submerged in standing rainwater, the internal contacts remain bone-dry.

Chemical and Salt Spray Resistance: The outer housing and internal elastomeric seals must be formulated to resist degradation from lawn fertilizers, pesticides, acidic soil, and atmospheric salt spray commonly found in coastal developments.

Intuitive Toolless Locking: Because commercial installations involve hundreds of individual light fixtures spread across wide areas, the connection hardware must feature a straightforward, positive-locking mechanism. A clear tactile response upon mating ensures field technicians achieve a perfect seal every time, eliminating human error during installation.

Compact Form Factor: Landscape lighting designs often feature sleek, low-profile fixtures with minimal housing space. IP68 Connectors must maintain a compact footprint so they can be concealed easily within narrow architectural channels or small junction wells without sacrificing sealing performance.

Protecting Investments and Lowering Lifecycle Costs

In the commercial sector, lighting downtime directly compromises the visual appeal and safety of a property. Emergency service calls to locate and repair buried electrical faults are exponentially more expensive than the initial cost of specifying high-grade wiring hardware.By prioritizing dedicated outdoor landscape lighting wiring solutions built to withstand moisture infiltration and thermal shock, project developers protect their capital investment. The exterior lighting infrastructure operates continuously at peak performance, routine maintenance expenses are drastically reduced, and the architectural vision remains brilliantly illuminated season after season.
