Modern healthcare paradigms are shifting rapidly toward decentralized medical services, requiring robust, reliable, and field-deployable point-of-care (POC) testing and advanced outdoor medical imaging equipment. This technical case study analyzes how E-Weichat addressed a critical component vulnerability for an international developer of ruggedized outdoor medical ventilation systems and remote trauma diagnostic enclosures. Confronted with the severe real-world challenges of moisture ingress, unpredictable environmental exposure, and signal degradation, the customer experienced frequent system reboots and flawed sensor readouts. By transitioning to E-Weichat’s custom Multi-Pin Power & Signal Waterproof Connectors, the client engineered an uncompromised, IP68-certified interconnect solution that eliminated critical failures and ensured absolute compliance with strict medical hardware requirements.

The globalization of emergency medical services, field triage units, and tactical disaster response infrastructures has pushed traditional medical equipment outside the sterile, temperature-controlled confines of hospital wards. From alpine search-and-rescue diagnostic stations to mobile ICU trailers operated in high-humidity tropical zones, engineering teams must build electrical systems that withstand ruthless environments while executing critical clinical functions.When designing medical infrastructure meant for variable geographic deployment (targeting key hubs across the EU, North America, and APAC), developers face a massive engineering hurdle: maintaining uninterrupted power distribution and flawless low-voltage data transmission in a singular, space-saving footprint. Component failure in an industrial setting might result in a halted assembly line; component failure in a medical setting can compromise patient safety.

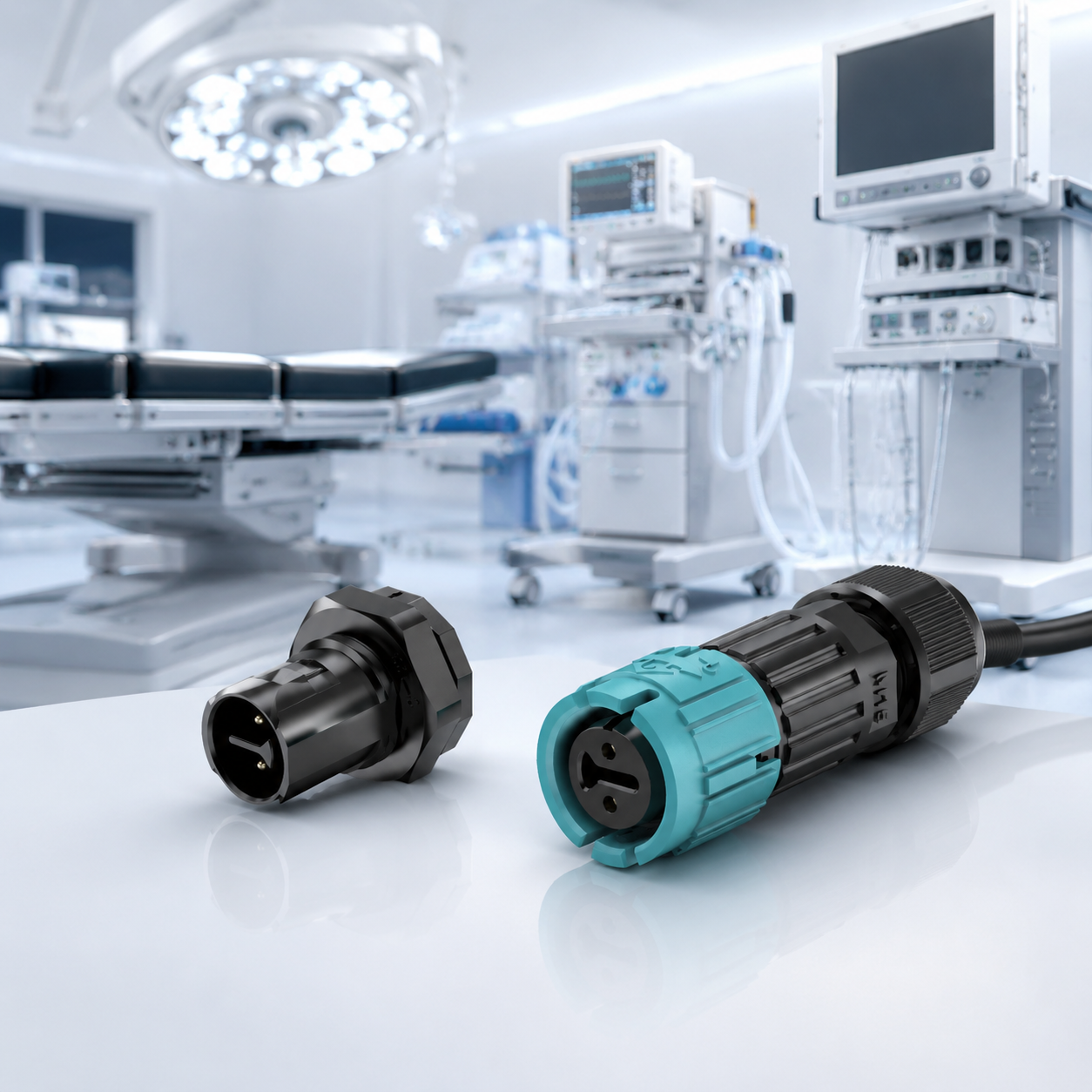

Panel Mount Power Connector

Industry-Specific Pain Points: What the Medical Sector Faces

The client, an OEM specializing in specialized trauma diagnostic enclosures, encountered severe operational bottlenecks during field trials across distinct regional climates—specifically high-humidity coastal testing grounds in the Asia-Pacific region and sub-zero environments in Northern Europe.

Originally, the client's engineering department utilized standard industrial connectors that promised baseline water resistance. However, these connectors failed to withstand the true physical stressors of outdoor medical operation:

The Inefficiency of Manual Screw Couplings: In high-stress surgical or resuscitation scenarios, clinical staff must act with absolute speed. Forcing medical personnel to carefully align and manually spin threaded rings consumes valuable time, drastically slowing down mobile cart deployment and device hot-swapping.

Micro-Ingress and Condensation Cycles: Standard seals failed when subjected to rapid thermal shock—moving from heated vehicle interiors into sub-zero outdoor environments. Air contraction inside the connector shell drew in atmospheric moisture, creating micro-condensation across the internal pin layouts.

Corrosive Sterilization Protocols: Because the diagnostic enclosures required aggressive chemical wipe-downs (such as isopropyl alcohol, hydrogen peroxide vapor, and sodium hypochlorite solutions) to prevent cross-contamination, the connector's plastic housing degraded, cracking prematurely and losing its environmental seal.

Signal Cross-Talk and Voltage Fluctuations: The system required a singular connection point to deliver both high-current DC power to internal heating components and sensitive data/signal links to real-time patient physiological monitors. The previous hardware caused massive electromagnetic interference (EMI) and signal noise, leading to false-positive alarms on the diagnostic software.

The E-Weichat Custom Interconnect Solution

E-Weichat's engineering division intervened to completely overhaul the device interface, substituting the generic parts with our proprietary Combined Power & Signal Waterproof Connector platform.

High-Density Multi-Pin Engineering

Instead of using an inappropriate, over-complicated hybrid connector designed for high-end optical fiber or automotive high-voltage interlocks (HVIL)—which would introduce unnecessary cost and component complexity—E-Weichat deployed a specialized Multi-Pin Layout. By allocating dedicated, high-conductivity copper pins for the 450V power channels and isolating the low-voltage pins for sensor communication within the same rugged housing, we achieved a space-saving, dual-transmission interface without signal interference.

Advanced Material Science against Chemical Stress

To combat the corrosive nature of medical disinfectants and harsh outdoor UV exposure, E-Weichat utilized premium, fiber-reinforced, high-grade polymers for the connector shell. This material prevents micro-cracking when exposed to medical-grade cleansing agents and ensures long-term mechanical stability across the entire -40°C to +85°C temperature range.

True IP68 Waterproof Locking Integrity

Our custom solution integrated a heavy-duty, threaded locking system backed by precision-molded internal O-rings. This mechanical assembly forms an airtight seal that eliminates the threat of micro-ingress caused by localized pressure differentials during rapid temperature shifts.

Real-World Field Results & Market Validation

Following the system-wide implementation of the E-Weichat multi-pin waterproof solution, the client conducted rigorous multi-month stress testing across their primary international deployment targets:

1. Elimination of System Latency & Reboots: The isolated pin layout completely mitigated internal electromagnetic interference, lowering signal-to-noise ratios to optimal clinical standards. Diagnostic telemetry remained completely clean during high-voltage power draws.

2. Zero Environmental Ingress: Over 500 hours of continuous high-pressure water spray and deep-immersion testing yielded zero water accumulation inside the contact chamber, achieving a 100% success rate under IP68 testing conditions.

3. Enhanced Operational Longevity: The specialized polymer housing demonstrated total resistance to chemical degradation, showing no signs of surface embrittlement or seal decay after extensive decontamination cycles.

Conclusion: Uncompromising Connectivity for Critical Applications

As decentralized healthcare and mobile medical equipment become integral to global emergency response networks, component reliability remains the ultimate measure of system success. By focusing on precision engineering and robust material choices rather than generic components, E-Weichat has proven that its Waterproof Power & Signal Connectors provide the uncompromising durability demanded by the world's most critical medical applications. For equipment manufacturers expanding their geographic footprint into demanding markets, E-Weichat delivers the exact interconnect hardware required to turn environmental challenges into reliable operational outcomes.
