Medical equipment designers spend considerable time evaluating sensors, displays, control electronics and mechanical assemblies.

The cable connection is often much less visible in the final product, but it can become a practical problem when equipment needs to be cleaned, moved or serviced.

Medical equipment may be exposed to moisture during cleaning procedures, accidental liquid contact or routine operation. At the same time, modern equipment is becoming smaller and more densely integrated.

This combination makes electrical connector selection an engineering issue rather than a simple component purchasing decision.

Cleaning Changes the Connection Environment

Medical equipment can require frequent cleaning and surface disinfection.

The connector may not be directly sprayed in every application, but equipment designers should still understand where moisture can reach the cable entry and connection interface.

An IP68-rated connector can be considered when defined water and dust protection is required.

However, engineers should not interpret IP68 as a blanket statement of chemical resistance.

If the connector will contact disinfectants or cleaning chemicals, material compatibility should be evaluated separately.

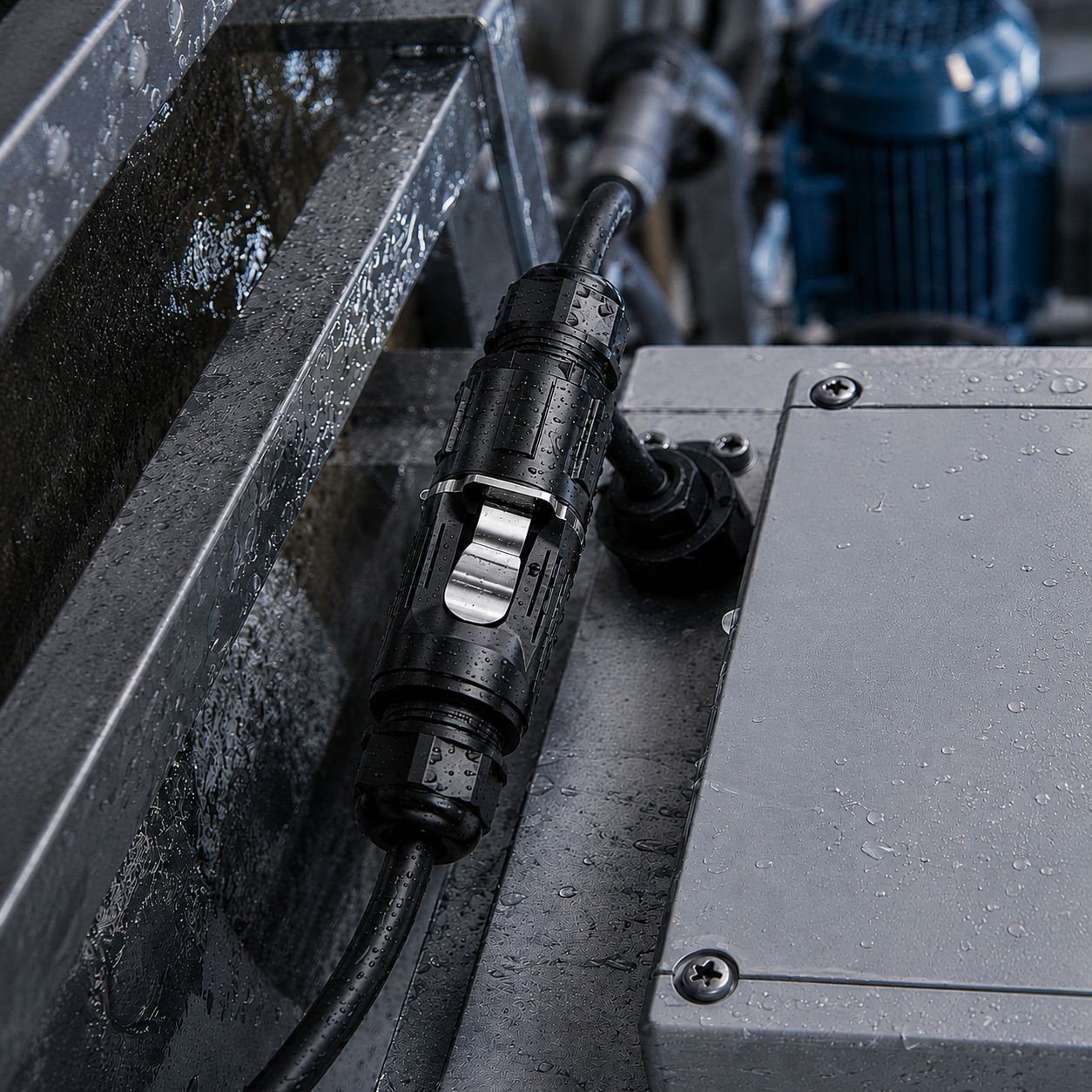

Waterproof Wire Connectors

IP68 Is Only One Part of Medical Equipment Connector Selection

An IP rating answers a specific question: how well does the enclosure protect against defined ingress conditions?

It does not answer every question relevant to medical equipment.

Engineers may also need to evaluate:

Connector size
Cable diameter
Mechanical retention
Mating and unmating requirements
Operating temperature
Cleaning environment
Installation clearance
Service requirements

These factors should be considered together.

Compact Medical Equipment Needs Compact Connections

Medical equipment increasingly combines multiple functions into compact housings.

Displays, sensors, communication interfaces, control boards and power systems may all compete for available internal space.

A connector with an unnecessarily large footprint can complicate cable routing and enclosure design.

For equipment manufacturers, connector dimensions should therefore be reviewed during the mechanical design stage.

External Sensors Need a Reliable Interface

Many medical devices use external sensors or detachable modules.

These connections may need to be removed during transportation, maintenance or equipment configuration.

A defined connector interface can provide a more structured alternative to a permanent cable splice.

The actual connector choice depends on the electrical, mechanical and environmental requirements of the equipment.

Mobile Equipment Adds Mechanical Stress

Medical carts and portable equipment are moved regularly.

Every movement can change how the cable is positioned relative to the equipment.

This does not mean that an IP68 connector automatically becomes suitable for continuous cable flexing.

Engineers should separately evaluate cable routing, bending radius and strain relief.

The connector should be integrated into the mechanical design so that unnecessary force is not transferred to the mating interface.

Maintenance Access Should Be Designed From the Start

Serviceability is often overlooked during early equipment design.

When a product is on the engineering bench, every connector is easy to access.

After the enclosure is assembled, the situation can be very different.

A connector positioned behind another module may be difficult to reach. A cable connection buried deep inside the equipment may require extensive disassembly before replacement.

For OEM designers, connector location should therefore be evaluated together with the expected service procedure.

Why Cable Diameter Matters

Sealing performance depends on the relationship between the connector's sealing structure and the cable entering the connector.

Using an incompatible cable diameter can compromise the intended sealing arrangement.

This is why engineering teams should confirm the supported cable range during product selection.

Medical Equipment Requires Careful Documentation

Professional medical equipment manufacturers may require technical specifications, drawings, test information and material details during supplier qualification.

Not every connector project has the same documentation requirements.

E-Weichat has nearly 20 years of experience in waterproof connector R&D and maintains laboratory capabilities associated with UL and TUV-related testing requirements.

For regulated medical equipment projects, customers should confirm the exact applicable certification, test documentation and regulatory requirements for the final equipment and connector configuration.

A connector's own specification should not be confused with certification of the complete medical device.

Don't Select a Connector Based on IP Rating Alone

A common procurement approach is to start with the IP rating and then compare prices.

For medical equipment, a better process is to define the complete application first.

Ask:

Where will the connector be installed?
Can cleaning fluids reach the connection?
How often will the equipment be serviced?
Does the connector need to be disconnected?
What cable diameter is required?
How much installation space is available?
Will the cable move during equipment operation?
What documentation does the project require?

These questions can eliminate unsuitable connector designs before prototype production.

Prototype Testing Is Especially Valuable

Connector performance should ideally be evaluated in the actual equipment architecture.

A prototype can reveal whether technicians can access the locking mechanism, whether the cable bends correctly and whether the connector fits within the enclosure without interfering with other components.

It can also provide an opportunity to evaluate the complete connection under the actual environmental conditions expected during use.

From Component to Connection System

A connector should not be viewed as an isolated waterproof component.

Its practical performance depends on the cable, sealing structure, enclosure, installation method and surrounding environment.

For medical equipment manufacturers, this system-level approach is particularly useful because equipment may need to balance environmental protection, compactness and serviceability at the same time.

An IP68 industrial connector can be one part of that solution when its specifications match the actual application requirements.

FAQ

1. Can IP68 connectors be used in medical equipment?

They can be considered for suitable medical equipment connection points where the required environmental protection matches the connector specification. The connector does not, by itself, certify the complete medical device.

2. Does IP68 mean a connector can withstand disinfectants?

No. IP68 concerns defined ingress protection conditions. Chemical compatibility with disinfectants and cleaning agents must be evaluated separately.

3. What should medical equipment OEMs confirm before purchasing?

Key points include connector dimensions, cable compatibility, sealing requirements, mechanical retention, installation conditions, maintenance requirements and the documentation or certification applicable to the specific project.
