IP68 Industrial Connectors for Medical Equipment Protection

IP68 Industrial Connectors for Medical Equipment Protection-Medical Industry

Medical equipment is becoming more compact, more connected and more dependent on stable electrical and signal transmission. At the same time, connectors installed inside or around medical equipment can be exposed to cleaning fluids, moisture, vibration, repeated servicing and limited installation space.

For equipment manufacturers, the connector is often a small component with a disproportionately large impact on system reliability. A connector that loosens, allows moisture into the connection area or becomes difficult to service can create maintenance problems that affect the entire machine.

This is why an Industrial Connector IP68 can be considered when medical equipment requires a higher level of environmental protection without moving to a completely enclosed wiring architecture.

Why Connector Selection Has Become More Important in Medical Equipment

Medical equipment manufacturers are facing several practical design constraints at the same time. Equipment must be compact, easier to maintain and capable of supporting increasingly complex electrical and signal functions.

Examples include patient monitoring equipment, diagnostic systems, laboratory instruments, imaging-related equipment, mobile medical carts and other electrically powered devices used in controlled but demanding environments.

In these applications, connector selection is not simply a question of choosing a plug with the correct number of contacts.

Engineers normally need to consider:

Protection against water and cleaning-related moisture
Mechanical stability during equipment movement
Available installation space
Cable routing and strain relief
Frequency of maintenance or replacement
Electrical and signal requirements
Material compatibility with the surrounding equipment
Required environmental protection rating

A connector that looks suitable during initial assembly may become a weak point after months of operation and repeated maintenance.

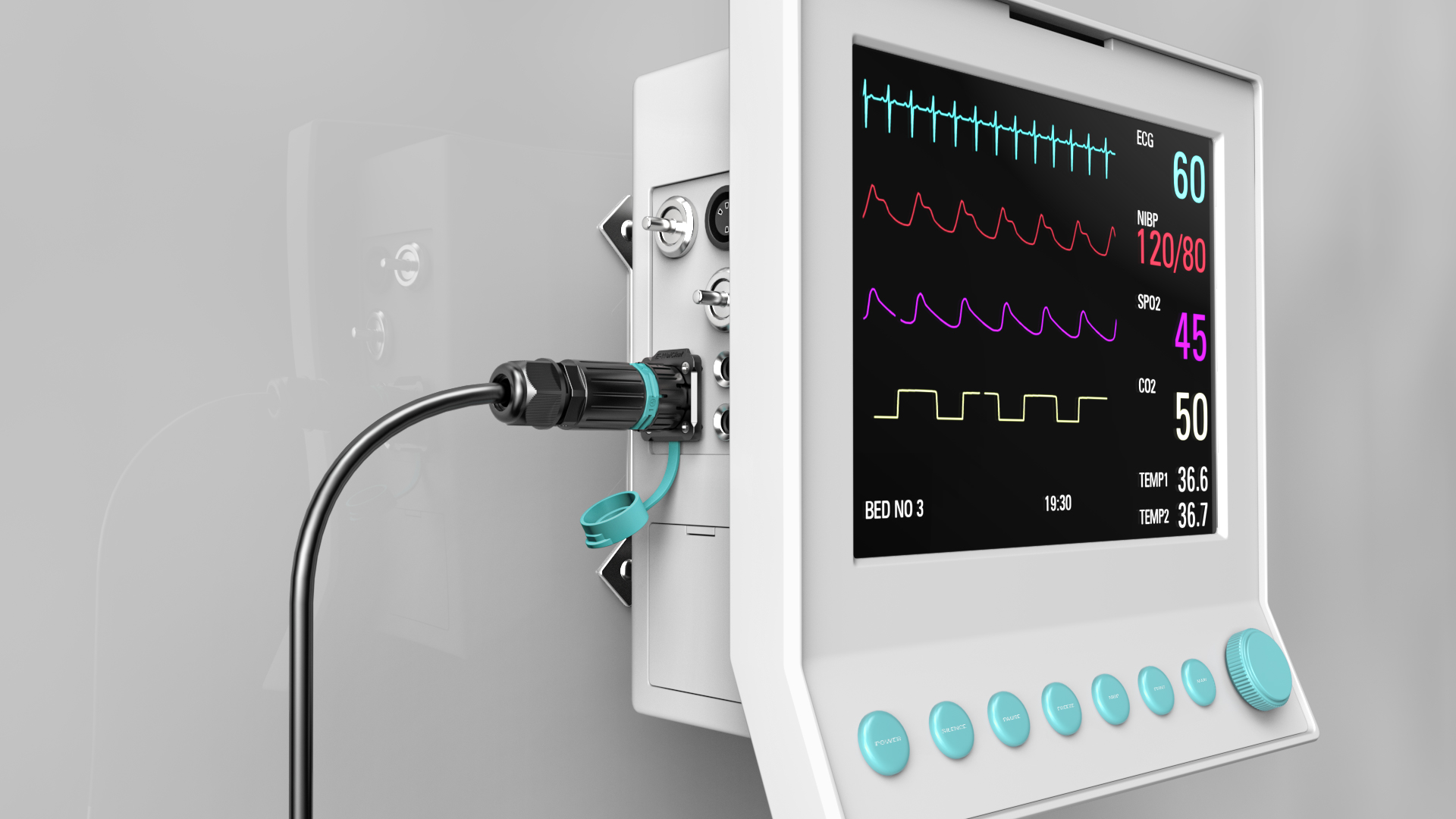

Cable Connector M20

Where an Industrial Connector IP68 Can Fit Into Medical Equipment

IP68-rated connector designs are generally considered when the connection must provide protection against dust and water ingress under the conditions defined by the applicable testing standard and product specification.

For medical equipment, this can be relevant in areas where cables exit an enclosure, where external sensors are connected, or where equipment may be exposed to cleaning procedures or accidental liquid contact.

External Sensor Connections

Modern medical equipment frequently relies on sensors and external signal modules. These connections may need to be disconnected during servicing, transportation or equipment configuration.

A sealed connector can provide a more controlled connection point than an exposed cable joint, particularly when the equipment enclosure has limited space.

Mobile Medical Equipment

Mobile equipment introduces another issue: cable movement.

Medical carts, portable diagnostic systems and movable monitoring equipment may be repositioned regularly. The connector therefore needs to remain mechanically stable while the cable is routed around the equipment.

In these applications, the connector's cable exit, locking mechanism and strain-relief design can be just as important as the IP rating itself.

Equipment Installed in Areas Requiring Regular Cleaning

Cleaning and disinfection are important considerations when designing equipment used in clinical or laboratory environments.

However, IP68 should not automatically be interpreted as resistance to every cleaning chemical or disinfectant.

Engineers should separately verify the connector's housing material, sealing materials and compatibility with the actual cleaning agents used in the application.

This distinction is important. The IP rating describes protection against defined ingress conditions; it does not replace chemical compatibility testing.

IP68 Is a Specification, Not a Complete Reliability Claim

One common mistake in connector selection is treating IP68 as a universal indication that a connector will work in every wet or demanding application.

IP protection is only one part of the selection process.

For a medical equipment manufacturer, the actual question should be:

Will the complete connection system remain reliable under the real operating conditions of the equipment?

This includes the connector body, sealing components, cable diameter, cable jacket, mating condition and installation method.

If the connector is correctly rated but the wrong cable diameter is used, the sealing performance of the finished assembly may not match the expected result.

For this reason, engineers should evaluate the complete connector-and-cable configuration rather than selecting the connector based only on an IP number.

Compact Installation Matters in Medical Equipment Design

Space is another practical challenge.

Medical equipment often contains power supplies, control boards, displays, sensors, cooling systems and communication modules inside a relatively compact enclosure.

Large industrial connectors may provide excellent mechanical strength but can consume valuable installation space.

A compact waterproof connector can provide an alternative when the equipment requires a sealed external connection while maintaining a cleaner cable layout.

Before finalizing the design, engineers should check:

Connector outer diameter
Mating and unmating clearance
Cable bending radius
Panel or enclosure thickness
Locking mechanism access
Required mounting orientation
Available space around adjacent connectors

These details can have a significant impact on the manufacturability of the final device.

Maintenance and Serviceability Should Be Considered at the Design Stage

A medical device may be designed to operate for years, but individual components may still need to be replaced or serviced.

This creates a trade-off between sealing performance and serviceability.

A permanently spliced cable may reduce the number of connection points, but it can make field replacement more difficult. A properly selected waterproof connector can create a defined service interface between the equipment and external cable assembly.

For OEM engineers, this can simplify equipment assembly and potentially reduce the time required for certain maintenance operations.

Material and Sealing Design Matter Beyond the IP Rating

The housing material, gasket design and cable sealing structure all influence connector performance.

For equipment manufacturers, the connector should be evaluated together with the surrounding enclosure materials and cable construction.

For example, the following questions should be answered before approving a connector:

Is the connector housing suitable for the expected operating environment?
Is the cable diameter compatible with the sealing system?
Does the locking structure provide sufficient mechanical retention?
Can the connector tolerate the expected temperature range?
Is the sealing material appropriate for the intended environment?
Are test reports or certification documents available for the required configuration?

This approach helps prevent a common procurement problem: selecting a connector based on a catalog headline while discovering application limitations during equipment validation.

Testing and Documentation: What Medical OEMs Should Ask Suppliers

When purchasing connectors for professional equipment, documentation can be as important as the physical component.

Procurement and engineering teams may need product drawings, specifications, test information, material information and certification documentation depending on the project requirements.

E-Weichat has nearly 20 years of R&D experience in waterproof connector development, with a certified laboratory operating in accordance with UL and TUV-related testing requirements.

For projects requiring specific certification, customers should confirm the exact certification scope and applicable connector configuration with the supplier rather than assuming that every product variant carries the same certification.

From Prototype to Mass Production

Connector selection should ideally happen before the equipment enclosure and cable assembly are frozen.

During prototype development, engineers can verify connector dimensions, mating operation, cable routing and sealing performance under actual assembly conditions.

This is also the stage where potential problems such as insufficient clearance, excessive cable bending or difficult maintenance access can be identified before mass production.

For OEM projects, the ability to discuss cable length, connector configuration, wiring and assembly requirements with the connector supplier can further reduce integration work.

A Practical Selection Checklist for Medical Equipment Engineers

Before approving an Industrial Connector IP68 solution, consider the following checklist:

Define the required IP protection level.
Identify whether the connector will be exposed to cleaning fluids or other chemicals.
Confirm cable diameter and cable-jacket compatibility.
Check available installation space.
Evaluate mating and unmating requirements.
Consider vibration and cable movement.
Verify operating temperature requirements.
Request relevant test reports and certification documentation.
Validate the complete cable-and-connector assembly.
Run prototype testing before mass production.

Why the Right Connector Can Reduce More Than Water Ingress Risk

In medical equipment, connector reliability is closely connected to serviceability, assembly quality and long-term equipment performance.

An IP68 connector can help protect electrical connections from defined dust and water ingress conditions, but its value depends on correct selection and installation.

For equipment manufacturers, the better approach is to treat the connector as part of the complete connection system rather than an isolated component.

When mechanical design, sealing, cable compatibility, certification requirements and maintenance needs are evaluated together, an Industrial Connector IP68 solution can become a practical part of a more reliable medical equipment architecture.

FAQ

1. Is IP68 suitable for all medical equipment?

No. IP68 describes protection against specific ingress conditions and does not automatically cover chemical resistance, sterilization compatibility or every medical-device requirement. The complete application environment should be evaluated.

2. Can an IP68 connector be used with different cable diameters?

Only within the connector's specified cable range. The cable diameter must match the sealing system to maintain the intended protection performance.

3. Can E-Weichat provide connector customization for medical equipment?

Yes. OEM/ODM projects can be discussed based on connector configuration, cable requirements, installation structure and application conditions. Certification and test documentation should be confirmed for the specific configuration.
