Industrial equipment is rarely operated in a perfectly controlled environment. Control cabinets, automation systems, machine enclosures, monitoring equipment and outdoor electrical devices can be exposed to dust, moisture, vibration, temperature changes and repeated cable handling.

In these applications, the cable connection is a small component with a potentially large impact on equipment reliability. A connection that is incorrectly specified, poorly sealed or exposed to unnecessary mechanical stress can become a maintenance problem long after the equipment has been installed.

This is where an industrial waterproof connector can play an important role. Rather than treating the connector as a simple accessory, equipment manufacturers and system integrators need to evaluate it as part of the complete electrical and mechanical interface.

This application case looks at the practical considerations involved in selecting waterproof connectors for industrial equipment, particularly where the connection is exposed to moisture, dust, vibration or mechanical stress.

The Connection Point Is Often Exposed to More Stress Than Expected

Inside an industrial machine, many electrical components are protected by an enclosure. The cable connection, however, often has to pass through that enclosure and remain accessible from the outside.

This creates a transition point between the protected internal environment and the external operating environment.

Depending on the application, this area may experience:

Water or moisture exposure
Industrial dust and particles
Equipment vibration
Repeated cable movement
Accidental pulling or bending
Temperature fluctuations
Routine cleaning or maintenance activities

For industrial equipment manufacturers, the question is therefore not simply whether a connector can transmit power or signals. The more relevant question is whether the connector remains suitable under the actual environmental and mechanical conditions of the equipment.

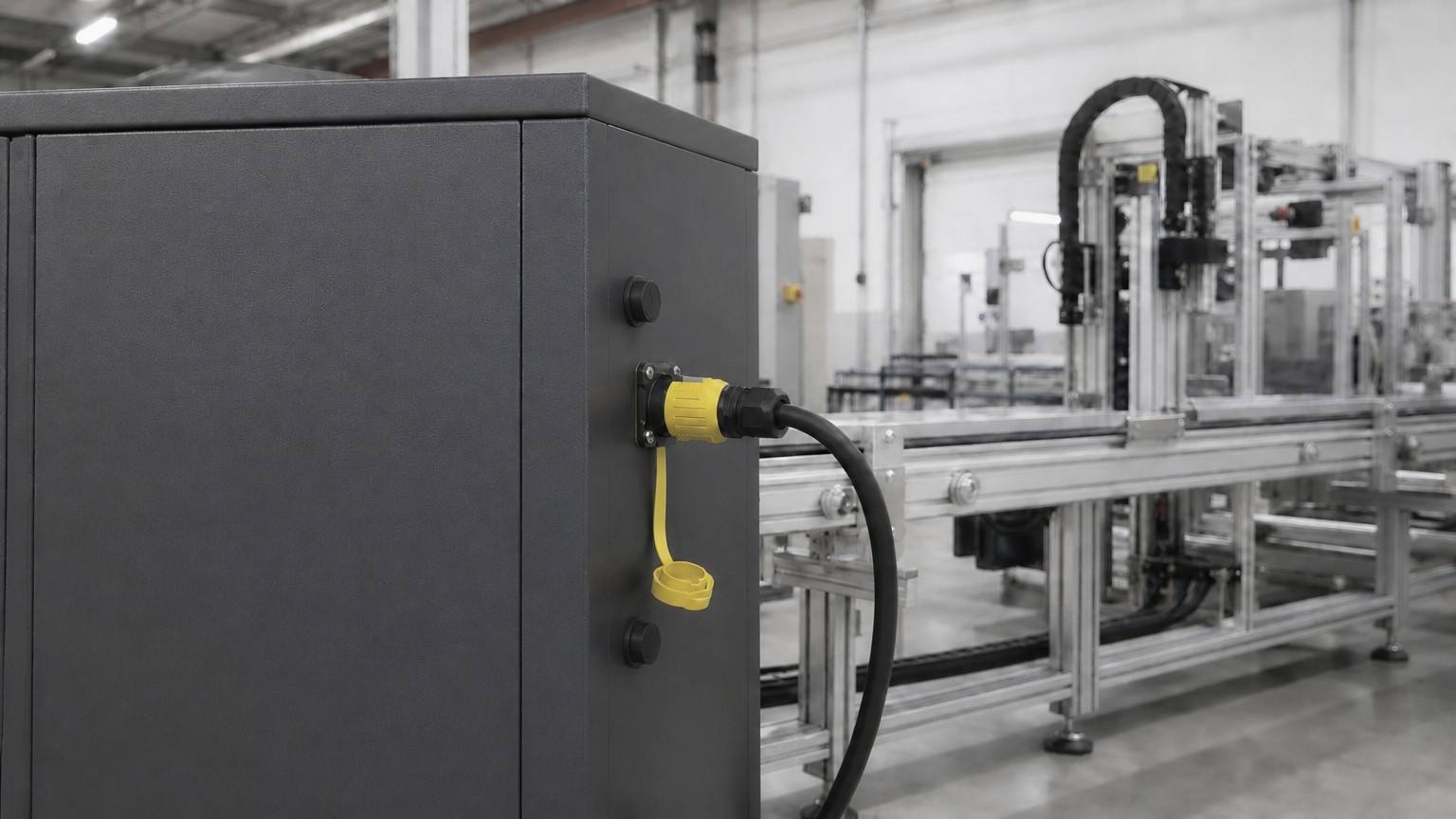

Application Case: Waterproof Cable Connections on Industrial Equipment

Consider an industrial equipment manufacturer building an automated machine for continuous operation. The machine contains controllers, sensors, electrical modules and external cable connections.

Several cables need to enter the equipment enclosure from the outside. The connection points are located close to the production area and may be exposed to airborne dust, humidity and occasional water contact.

The engineering team needs a connector solution that can provide a defined cable interface while supporting the environmental requirements of the equipment.

The initial requirements include:

Reliable power or signal transmission
Protection against environmental exposure
Secure cable retention
Compatibility with the selected cable diameter
Resistance to normal equipment vibration
Practical installation and maintenance

Under these conditions, an industrial waterproof connector can provide a more controlled connection point than an unprotected cable junction.

Why IP68 Protection Can Matter in Industrial Equipment

Industrial equipment does not always require the same level of environmental protection. A connector installed inside a dry electrical cabinet may face very different conditions from one mounted on an outdoor machine or equipment enclosure exposed to rain and cleaning water.

Where a high level of protection against dust and water ingress is required, an IP68 connector can be considered.

IP68 should, however, be evaluated according to the exact product specification and test conditions. The rating of the connector does not eliminate the importance of correct installation.

The final assembled connection can depend on:

Connector design
Sealing components
Cable outer diameter
Correct cable preparation
Proper mating
Installation procedure

For example, if the selected cable falls outside the connector's specified sealing range, the expected sealing performance may not be achieved.

For this reason, buyers evaluating an IP68 industrial connector should review the technical specifications of the exact model rather than relying on the IP rating alone.

Dust Protection Is Not Only an Outdoor Requirement

Industrial dust can be present in many indoor production environments. Machining areas, manufacturing lines, workshops and processing facilities may all contain airborne particles.

Once particles enter a poorly protected connection or enclosure, they can complicate inspection and maintenance and may contribute to long-term connection problems depending on the equipment design.

A properly selected waterproof cable connector helps create a controlled interface between the cable and equipment enclosure.

The connector should still be selected according to the actual application. A high protection rating does not replace proper enclosure design, cable routing or installation practices.

Vibration Makes Mechanical Design Important

Industrial machines rarely remain completely still during operation. Motors, pumps, robotic mechanisms, conveyors and other moving equipment can generate continuous or intermittent vibration.

For cable connections, vibration is important because mechanical stress can be transferred through the cable toward the connector.

Strain Relief Helps Manage Cable Stress

The cable entry area should be designed so that external pulling or bending forces are not unnecessarily transferred directly to the electrical termination.

A suitable strain relief structure can help support the cable and reduce mechanical stress around the connection point.

When evaluating an industrial waterproof connector for equipment, engineers should therefore consider both the connector and the cable management arrangement.

Cable routing, bend radius, support points and the expected movement of the cable can all affect the long-term performance of the connection.

Secure Mating Helps Prevent Unintended Disconnection

Industrial equipment can experience vibration throughout normal operation. A connector should remain securely mated under the conditions specified for the application.

Depending on the connector design, a threaded or locking structure can help maintain the connection after installation.

The correct locking method depends on the application. Equipment that requires frequent service may have different requirements from a permanently installed connection.

Cable Compatibility Should Be Checked Before Ordering

One of the most practical issues in connector selection is cable compatibility.

A connector may appear suitable based on its external dimensions while still being unsuitable for the selected cable. The cable outer diameter, conductor configuration and required electrical performance all need to be considered.

For a waterproof cable connector, the sealing range is particularly important.

Before placing a production order, engineering and purchasing teams should confirm:

Cable outer diameter
Conductor size
Number of conductors
Voltage requirements
Current requirements
Connector contact configuration
Required environmental protection

This basic verification can prevent compatibility problems during equipment assembly.

Panel and Enclosure Installation Also Affect Connector Selection

Industrial connectors are often installed through control cabinets, machine housings or electrical enclosures.

Available space should therefore be considered before selecting the connector.

Engineers should check the panel thickness, mounting dimensions, rear clearance and cable bending space. A connector that fits the external panel but leaves insufficient space behind the enclosure can create unnecessary assembly difficulties.

For equipment manufactured in volume, installation consistency is equally important. A defined connector location and repeatable mounting procedure can help production teams maintain consistent assembly across different machines.

Maintenance Access Can Affect the Total Cost of the Connection

The initial purchase price of an industrial connector is only one part of its cost.

If a connection is difficult to access after equipment installation, a relatively simple cable replacement can require additional labor and machine downtime.

This is particularly relevant for equipment installed in production environments where downtime directly affects operating schedules.

When selecting an industrial waterproof connector, buyers should consider how the connection will be handled after the machine leaves the factory.

Questions worth asking include:

Can technicians access the connector easily?
Can the cable be disconnected without major equipment disassembly?
Is the mating mechanism practical for service work?
Can replacement cables be installed consistently?

These factors can be especially important for OEM equipment supplied to overseas customers.

Testing and Certification Should Be Verified by Product Model

Industrial buyers may require technical documentation before approving a connector for production use.

Where TUV certification or other applicable approvals are required, the documentation should be checked against the exact connector series or model under evaluation.

Certification should not be assumed to apply automatically to every connector in a manufacturer's product range. The applicable standard, product configuration and test documentation should be confirmed during supplier qualification.

The same principle applies to IP protection, material specifications and other technical parameters.

For engineering teams, model-specific documentation provides a more reliable basis for product selection than general marketing claims.

How to Select an Industrial Waterproof Connector

A practical selection process starts with the application rather than the connector catalog.

Before selecting a product, engineers should define the operating environment and electrical requirements.

1. Define the Electrical Requirements

Confirm voltage, current, contact quantity and whether the connector will carry power, signals or both.

2. Confirm the Cable Dimensions

Check the cable outer diameter and conductor specifications against the connector's applicable cable range.

3. Define the Environmental Conditions

Identify whether the connector will be exposed to dust, moisture, water, vibration, temperature changes or other environmental factors.

4. Determine the Required IP Rating

If the application requires high protection against dust and water ingress, evaluate an appropriate IP-rated connector such as an IP68 solution where applicable.

5. Review Mechanical Requirements

Consider cable movement, strain relief, vibration and the connector's mating and locking structure.

6. Check Installation and Maintenance

Make sure the connector fits the equipment enclosure and can be installed and serviced within the available space.

From Factory Assembly to Field Operation

An industrial connector has to work through several stages of the equipment lifecycle.

It needs to be practical for factory assembly, suitable for installation into the finished machine and reliable under the operating conditions expected at the customer's site.

This is why connector selection should be made together with the equipment's electrical, mechanical and environmental design requirements.

For OEMs and industrial equipment integrators, standardizing suitable connector series for defined applications can also simplify purchasing and production. However, standardization should always be based on technical compatibility rather than using one connector for every application.

Conclusion: The Connector Is Part of the Equipment Design

An industrial waterproof connector may be physically small, but it forms part of the equipment's electrical and mechanical interface.

When industrial equipment operates around dust, moisture, vibration or outdoor exposure, connector selection becomes a practical reliability decision.

IP68 protection may be appropriate for applications requiring a high level of resistance to dust and water ingress. Strain relief and secure mating can help address mechanical stress. Cable compatibility helps ensure the sealing system works as intended, while model-specific certification and test documentation can support technical qualification.

E-Weichat provides industrial waterproof connector solutions for industrial equipment, automation systems, outdoor electrical equipment and other demanding cable connection applications. Product selection can be evaluated according to the actual cable dimensions, electrical requirements, environmental conditions and installation requirements of each project.

Frequently Asked Questions

What is an industrial waterproof connector used for?

An industrial waterproof connector provides a protected electrical or signal connection for equipment operating in environments where moisture, dust or other external conditions may affect the cable interface. The required connector specification depends on the application.

Is an IP68 connector always necessary for industrial equipment?

No. The required IP rating depends on the actual installation environment. IP68 can be considered when a high level of protection against dust and water ingress is required. Indoor equipment in a controlled environment may require a different protection level.

What should I provide when requesting an industrial waterproof connector?

Useful information includes the cable outer diameter, conductor size, voltage, current, number of contacts, installation method, environmental conditions and required IP rating. Providing these details allows the connector specification to be matched more accurately to the equipment.
