Where Solar Systems Need Reliable Connections Most

A solar power system is designed to operate outdoors for years. PV modules are exposed to sunlight, rain, dust, humidity, temperature changes and seasonal weather conditions, while electrical connections must continue transferring power safely and consistently.

For this reason, solar connectors are not simply small accessories installed between cables and PV components. They are part of the electrical path that supports the entire photovoltaic system. A poorly selected or incorrectly matched connector can create additional resistance, reduce connection reliability or introduce environmental risks at a critical point in the installation.

For PV equipment manufacturers, EPC contractors and solar system integrators, the challenge is therefore not only finding a connector that fits the cable. The connection must also remain stable under long-term outdoor exposure and match the electrical, mechanical and installation requirements of the complete system.

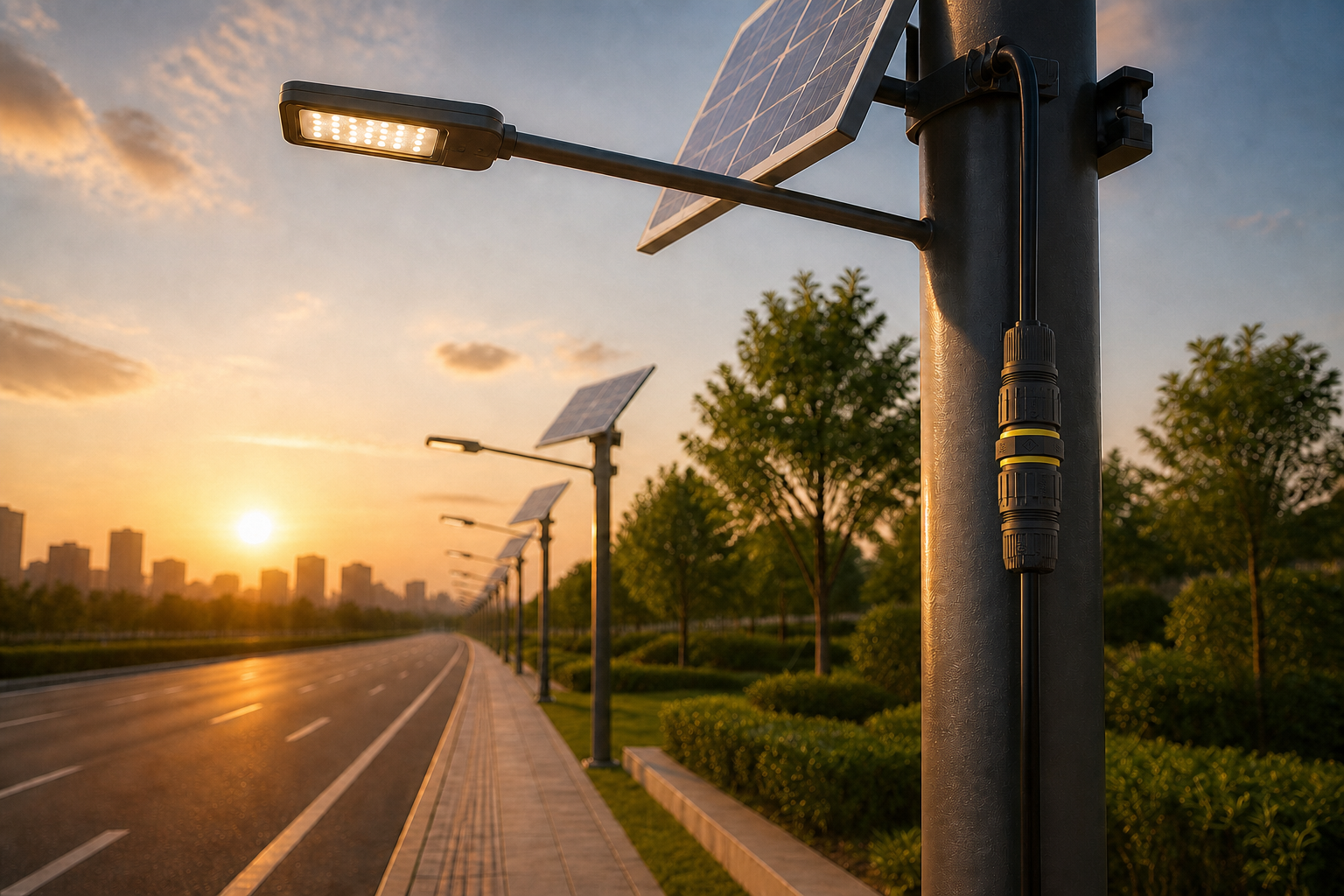

Solar Connectors

The Often-Overlooked Connection Points in Solar Power Systems

Solar projects involve multiple electrical connection points. Depending on the system design, connectors may be used between PV modules, string cables, combiner equipment, monitoring devices, energy storage systems and other power distribution components.

These interfaces can experience demanding conditions throughout their service life:

Long-term UV and outdoor exposure
Rain, humidity and condensation
Dust and airborne particles
High and low temperature cycles
Cable movement caused by installation or maintenance
Mechanical stress at cable entry points
Long operating periods with limited maintenance access

A solar connection may appear simple during installation. However, after the system enters long-term operation, the connector must continue performing under conditions that are very different from those found in an indoor electrical environment.

This is why professional buyers increasingly evaluate solar connectors for outdoor installations according to protection, compatibility, electrical requirements and long-term application conditions.

Application Case: Protecting Outdoor Connections in a Commercial PV Installation

A commercial solar system integrator was designing an outdoor PV installation that required multiple cable connection points across the power generation system. The installation would operate in an environment exposed to rain, dust and significant temperature changes throughout the year.

During the design review, the engineering team identified the external cable interfaces as an area requiring additional attention. The connectors needed to provide reliable environmental sealing while supporting secure cable installation and practical field assembly.

The project team focused on three main requirements:

Reliable protection against dust and water ingress
Stable electrical connections for long-term PV operation
Suitable mechanical retention for outdoor cable installations

Rather than selecting connectors based only on appearance or basic dimensions, the team evaluated an IP68 solar connector solution according to the complete installation requirements.

Why IP68 Protection Matters for Solar Connectors

Outdoor photovoltaic systems can expose electrical interfaces to moisture and dust for extended periods. For suitable applications, an IP68-rated connector can provide a high level of protection against dust and water ingress.

However, the IP rating should be understood within the context of the complete assembled connection. Connector performance depends on correct mating, cable compatibility, sealing components and installation procedures.

For example, selecting the correct cable diameter is important for maintaining the intended sealing performance. A connector may use sealing components designed for a specified cable range, but incorrect cable selection or improper assembly can affect the performance of the finished connection.

Therefore, when evaluating waterproof solar connectors, engineers should review the complete connector-and-cable assembly rather than treating the IP68 rating as an isolated specification.

Long-Term Reliability Depends on More Than Waterproofing

Waterproof performance is important, but it is only one part of connector reliability.

Solar connectors must also maintain stable electrical contact and withstand the mechanical conditions created during installation and operation. Cable routing, pulling forces, bending and maintenance activities can all affect the connection.

For this reason, several design factors should be considered together.

Secure Mating and Locking

A secure mating structure helps maintain the connection after installation. The locking method should be appropriate for the connector design and intended application, particularly where accidental separation or repeated maintenance may be a concern.

Cable Compatibility

The connector should be matched to the actual cable outer diameter and conductor requirements. Incorrect cable matching can affect sealing, mechanical retention and installation quality.

Contact Performance

The electrical contacts should be suitable for the system's specified voltage and current requirements. Buyers should always verify the electrical specifications of the selected connector model rather than assuming that all PV connectors provide identical performance.

Cable Strain Management

Mechanical stress should not be ignored at outdoor connection points. A suitable cable entry and strain management design can help reduce unnecessary pulling forces transferred toward the connection.

Connector Compatibility Is a Critical PV Installation Issue

One important issue in the solar industry is connector compatibility.

Connectors that appear physically similar are not automatically interchangeable. Differences in design, materials, dimensions, locking structures and electrical performance can affect how two components mate and perform together.

For professional PV installations, installers and system designers should follow the connector manufacturer's compatibility guidance and project requirements. Mixing connectors from different product systems without confirming compatibility can introduce unnecessary technical and safety risks.

This is particularly important for photovoltaic connectors used in large systems where the same connection design may be repeated across many installation points.

Choosing Solar Connectors for Different Parts of the Energy System

Modern renewable energy projects often include more than PV modules alone. Depending on the system architecture, connections may also support monitoring equipment, power distribution, battery storage and other electrical devices.

This means buyers may need different connector solutions for different functions.

PV Module and String Connections

These connections should be evaluated according to PV electrical requirements, outdoor protection and compatibility with the system design.

Outdoor Equipment Connections

Monitoring devices, control equipment and auxiliary systems may require waterproof signal or power connectors depending on their location and environmental exposure.

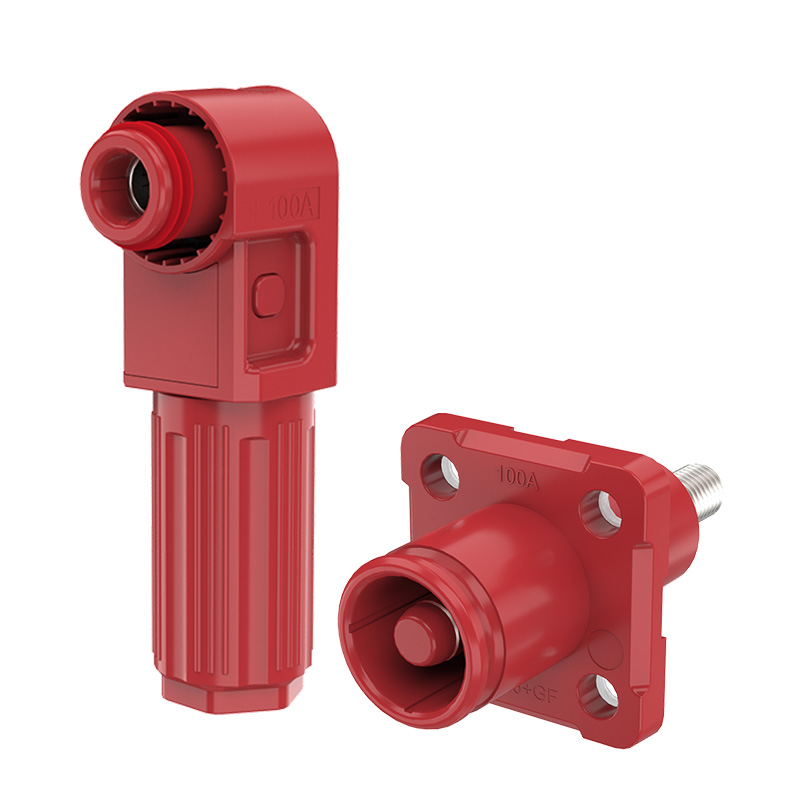

Energy Storage Interfaces

Battery and energy storage equipment can involve different power and connection requirements. Connector selection should consider current, voltage, installation conditions and the applicable system specifications.

Using the same connector category for every application may not provide the most efficient engineering solution. A solar connector solution should match the specific electrical function and operating environment of each interface.

Material Selection and Flame Resistance in Renewable Energy Equipment

Connector housing materials can also be important in solar and renewable energy equipment.

Depending on the product series and application, buyers may evaluate engineering materials according to mechanical strength, environmental resistance and flame-related performance requirements.

Where a specific UL 94 flammability classification is required, the exact material specification and documentation should be verified for the selected connector model. Buyers should avoid assuming that a rating associated with one material or product applies to an entire connector range.

The same approach applies to project documentation and certifications such as TUV certification. Requirements should be checked against the specific product series and the standards applicable to the intended project.

What PV Buyers Should Confirm Before Selecting Solar Connectors

A more reliable connector selection process starts with accurate application information.

Before choosing solar connectors for a PV system, professional buyers should confirm:

Required voltage and current ratings
Applicable PV system requirements
Cable conductor size
Cable outer diameter
Required environmental protection level
Installation location
Expected temperature conditions
Required mating and locking method
Applicable compatibility requirements
Required certifications and technical documentation

This information helps ensure that the connector recommendation is based on the actual project rather than only on a general product name.

Installation Quality Is Part of Connection Reliability

Even a correctly selected connector can perform poorly if installation requirements are ignored.

Field assembly should follow the applicable product instructions, including cable preparation, conductor termination, correct mating and locking procedures. Installers should also avoid damaging sealing components or applying excessive stress to the cable during assembly.

For large commercial installations, consistent installation procedures become increasingly important because small assembly errors can be repeated across many connection points.

This makes product selection, installation training and quality inspection closely connected parts of the same reliability strategy.

Reducing Connection Risks Over the Life of a Solar Project

PV projects are designed for long-term operation. Once a system is installed, accessing and replacing individual connection points may require additional labor, equipment shutdown or site visits.

Selecting the right solar panel connectors during the engineering stage can help reduce avoidable connection-related risks later in the project.

A suitable connector solution can support:

Reliable outdoor environmental protection
Stable electrical contact
Correct cable matching
Secure mechanical connection
More consistent installation procedures
Practical long-term maintenance

The objective is not simply to select the highest available specification. The objective is to select a connector that matches the actual electrical and environmental requirements of the PV system.

Reliable Solar Connections Begin Before Installation

The reliability of a solar power system is built from many individual components and interfaces. Connectors may represent a relatively small part of the overall system, but each connection point can play an important role in maintaining electrical continuity and environmental protection.

For demanding outdoor applications, solar connectors should be evaluated according to IP protection, cable compatibility, electrical specifications, locking design and the actual operating environment.

An IP68 rating, suitable materials and applicable technical documentation can all be important factors, but the final solution should always be matched to the specific installation.

E-Weichat provides waterproof connector solutions for solar, energy storage and other demanding outdoor applications. Product configurations and customized cable solutions can be evaluated according to the project's cable, electrical, installation and environmental requirements.

Frequently Asked Questions

What should I consider when choosing solar connectors?

Key factors include voltage and current requirements, cable size, cable outer diameter, environmental exposure, required IP rating, connector compatibility and applicable project standards.

Are IP68 solar connectors suitable for all PV installations?

Not necessarily. The required protection level depends on the installation environment. IP68 may be suitable for demanding outdoor applications, but buyers should select the protection level and connector design according to actual project requirements.

Can different brands of solar connectors be connected together?

Connectors that look similar should not automatically be considered compatible. The manufacturer's compatibility guidance and the applicable system requirements should be checked before connectors from different product systems are mated.
