The Connection That Keeps Moving: Industrial Waterproof Connectors for Robotic Systems

Industrial robots are designed around movement. Robot arms accelerate, stop, rotate, repeat programmed paths, and operate through thousands of production cycles. Servo motors, sensors, vision systems, end-of-arm tooling, and control modules all depend on electrical connections that must continue working while the surrounding machine is in motion.

This creates a connector challenge that is different from a conventional stationary installation. In robotics, a connection may be exposed to vibration, cable bending, torsion, pulling forces, dust, oil mist, coolant, and repeated maintenance. A connector that performs well in a static electrical cabinet may not automatically be the right choice for a moving robotic system.

For robot manufacturers and automation integrators, selecting an industrial waterproof connector is therefore not simply a question of choosing an IP rating. The connector must be evaluated as part of the complete moving electrical interface, including the cable, locking method, sealing system, installation location, and expected operating conditions.

The Challenge: Robotic Connections Are Under Continuous Mechanical Stress

A typical industrial robot contains multiple electrical connection points. Power must reach motors and actuators. Position sensors send feedback to the controller. End effectors require control and signal interfaces. Additional devices may support cameras, inspection systems, communication modules, or other automation functions.

These connections can be exposed to repeated mechanical stress throughout the robot's working life.

• High-frequency vibration from machine movement
• Cable bending near moving joints
• Torsional stress caused by rotation
• Pulling forces at cable entry points
• Dust, metal particles, and industrial contamination
• Oil mist, coolant, or occasional water exposure
• Repeated connection and disconnection during maintenance

The result is a practical reliability problem: electrical continuity alone is not enough. The connector interface must remain mechanically secure while maintaining appropriate environmental protection.

This is why industrial waterproof connectors for robotic systems are increasingly selected according to the actual motion and installation conditions rather than by electrical specifications alone.

Application Case: Improving Connector Reliability on a Robotic Production System

An automation equipment integrator was developing a robotic production cell used for continuous material handling and automated assembly. The robot arm operated for long production cycles and included multiple electrical interfaces for motor control, sensor feedback, and auxiliary equipment.

During system evaluation, the engineering team identified several risks around the external cable connections. Some cables were installed close to moving sections of the equipment, where repeated vibration and cable movement could gradually place stress on the connector interface. The production environment also contained dust and occasional exposure to water-based cleaning or process fluids.

The original requirement was not simply to find a waterproof plug. The team needed a more complete connection strategy that could address three specific concerns:

• Prevent accidental loosening during vibration and repeated machine movement
• Protect the cable entry and connector interface from environmental exposure
• Support practical installation and maintenance without creating unnecessary complexity

The solution involved selecting an IP68 industrial waterproof connector with a suitable locking structure and cable sealing design for the relevant installation points.

Why the Locking Method Matters in Moving Robot Applications

A connector used near a moving robotic system should be evaluated for more than ease of mating. The locking method affects how the connector responds to vibration, pulling, and repeated operation.

Depending on the application, engineers may consider threaded locking, quick-lock, push-pull, or other secure coupling structures. The correct choice depends on the available installation space, expected maintenance frequency, mating requirements, and mechanical conditions around the interface.

For fixed interfaces exposed to vibration, a secure locking mechanism can help reduce the risk of unintended separation. For equipment that requires faster replacement or frequent service access, a quick-connect design may improve maintenance efficiency when the connector is correctly matched to the application.

The important point is that a connector should not be selected only because it is described as rugged. Engineers should ask how the specific locking structure performs in the actual robot installation.

Questions to Ask Before Selecting a Locking Structure

• Will the connector be installed near a moving joint?
• Can vibration gradually affect the mating interface?
• Will technicians need frequent access to the connector?
• Is there enough space for manual coupling and uncoupling?
• Could cable pulling apply force to the connector body?

These questions help move connector selection from a catalog comparison toward an application-based engineering decision.

IP68 Protection Is Part of the System, Not the Entire System

For robotic equipment operating in demanding industrial environments, protection against dust and moisture can be important. An IP68 waterproof connector may be suitable for applications requiring a high level of ingress protection, particularly where equipment is exposed to dust, water, or wet operating conditions.

However, an IP68 rating should not be interpreted as a guarantee that every installed connection will perform identically in every environment. Actual protection depends on the complete assembly.

Engineers should confirm factors such as:

• Compatible cable diameter
• Correct sealing components
• Proper tightening or mating procedure
• Suitable cable entry design
• Correct installation inside the equipment enclosure
• The specific test conditions associated with the selected connector model

For robotic systems, the cable interface can be just as important as the connector body. If cable movement places excessive stress on the sealing area or termination, the weakest point may not be the electrical contact itself.

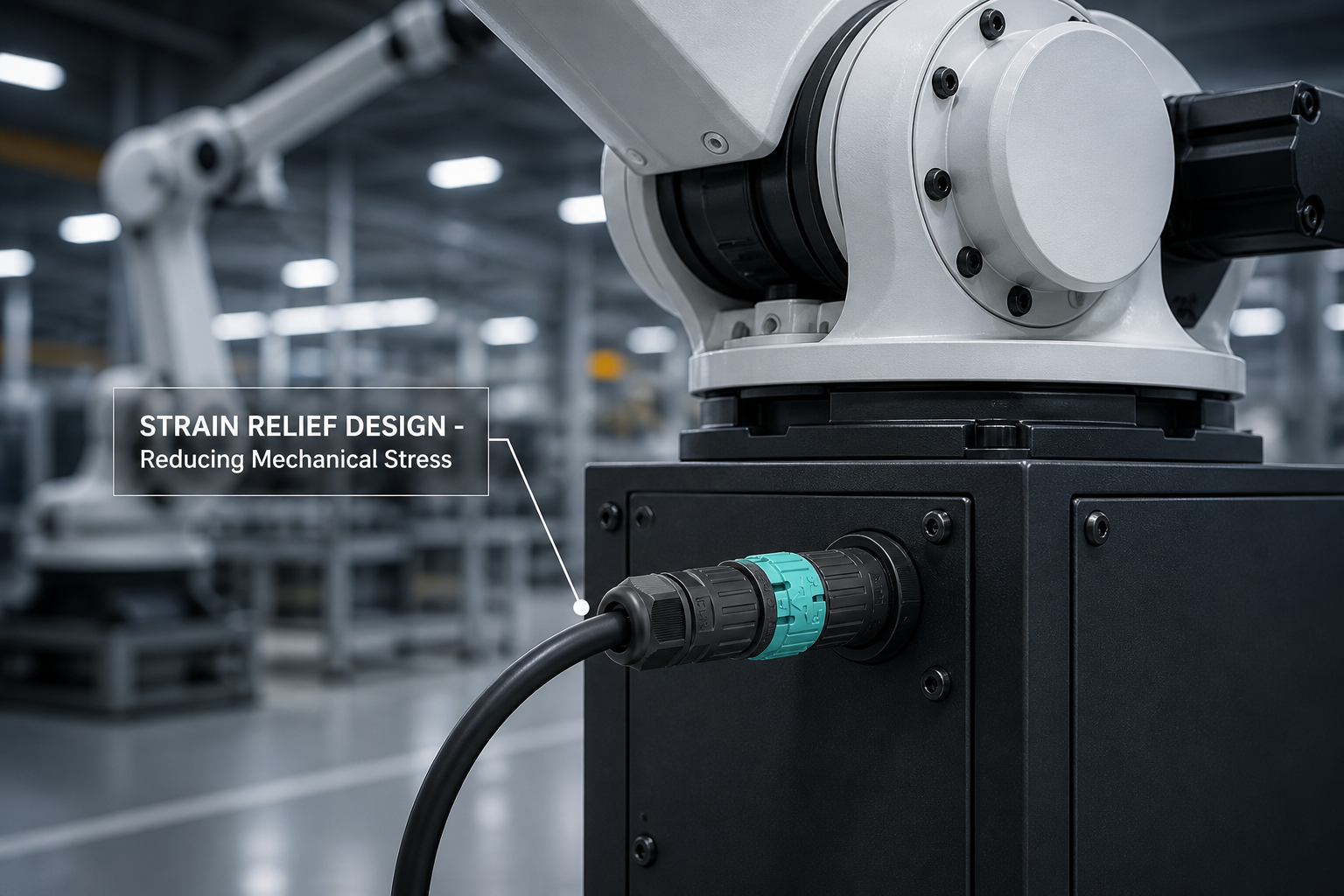

Cable Strain Relief: A Small Feature with a Large Mechanical Role

One of the most overlooked details in robotic connectivity is cable strain management.

When a cable is pulled, bent, or repeatedly moved, mechanical force can transfer toward the connector termination. Over time, this may place additional stress on the cable entry point and internal connection.

A properly designed strain relief or cable locking structure helps manage this mechanical load. Rather than allowing normal pulling forces to act directly on the electrical termination, the connector and cable assembly can distribute or reduce stress at the interface.

This is especially relevant for waterproof cable connectors for robot arms, automated machinery, and equipment with suspended or routed cables.

The correct design still depends on the application. Cable routing, bend radius, robot movement, mounting position, and service access should all be reviewed together. A connector cannot compensate for poor cable routing, but an appropriate cable entry and strain relief design can support a more reliable overall installation.

Power, Signal, and Data Connections May Have Different Requirements

Modern robotic systems do not rely on one type of electrical connection.

A robot may simultaneously require power for motors and actuators, low-voltage control signals, position feedback from sensors, and communication between different equipment modules. These functions can have different electrical and mechanical requirements.

For this reason, buyers should avoid treating every connector in a robotic system as interchangeable.

Power Connections

Power interfaces should be evaluated according to current, voltage, conductor size, thermal conditions, and the mechanical requirements of the installation.

Signal Connections

Signal interfaces may require stable contact performance and an appropriate connector configuration for sensors, control devices, and feedback systems.

Data Connections

Where a robotic system includes industrial communication or data transmission, connector selection may also need to consider shielding, transmission requirements, and compatibility with the relevant communication architecture.

The best industrial waterproof connector for automation equipment is therefore one that matches the specific function of the connection rather than attempting to use a single oversized or unsuitable solution everywhere.

Connector Selection Should Begin with the Robot's Working Environment

For European and North American automation buyers, reliability requirements are often closely connected to the real installation environment. Before comparing product models, engineers should define where and how the connector will operate.

A practical evaluation can include the following conditions:

• Indoor factory or outdoor installation
• Dry production area or washdown exposure
• Fine dust or metal particle exposure
• Oil and coolant exposure
• Continuous vibration
• High-frequency movement
• Limited installation space
• Required maintenance intervals

This information makes it easier to determine whether an industrial waterproof connector needs IP68 protection, a specific locking method, stronger cable retention, or a different installation configuration.

Materials and Flame Resistance in Industrial Connector Selection

The housing and insulation materials used in an industrial connector should also be considered as part of the equipment design.

Depending on the connector series, industrial applications may require engineering plastics with suitable mechanical, environmental, and flame-resistance characteristics. E-Weichat provides product-specific technical information for selected connector series, including protection ratings and material-related specifications.

Where a project requires a particular flammability classification, buyers should confirm the exact material specification and test documentation for the selected product rather than assuming that one rating applies to every connector model.

The same principle applies to certifications such as TUV certification. Certification requirements should be matched to the specific connector series and project requirements. Professional buyers should request and verify the applicable documentation during technical evaluation.

From Connector Selection to a Complete Robotic Connection Solution

In practice, the connector is only one part of the electrical interface.

For robot manufacturers and system integrators, the complete solution may include:

• Industrial waterproof connectors
• Matched cables
• Customized cable assemblies
• Cable strain relief
• Panel-mount interfaces
• Appropriate locking structures
• Application-specific connector configurations

Considering these elements together can help reduce installation problems and simplify later maintenance.

For example, an OEM may require a specific cable length, contact configuration, or panel installation arrangement that is not fully addressed by a standard off-the-shelf cable. In this situation, a customized cable assembly can reduce unnecessary adaptation work during equipment production.

How Industrial Waterproof Connectors Support Robotic Uptime

Connector failure is not always immediately visible. A robot may experience intermittent sensor feedback, unstable auxiliary connections, or occasional communication problems before a complete connection failure occurs.

This makes connector reliability important from a maintenance perspective as well as an electrical one.

A correctly selected industrial waterproof connector for robotics can help support equipment uptime by addressing several common risks:

• Environmental exposure at connection points
• Mechanical loosening caused by vibration
• Stress at cable entry locations
• Incorrect connector-to-cable matching
• Complex or time-consuming service procedures

The goal is not to claim that a connector can eliminate every possible failure. Instead, the goal is to reduce connection-related risk by matching the connector design to the actual operating conditions.

What Robot Manufacturers Should Provide When Requesting a Connector Solution

A more accurate technical recommendation begins with better application information.

When contacting a connector manufacturer, robotics buyers can improve the selection process by providing:

• Power, voltage, and current requirements
• Signal or data requirements
• Required number of contacts
• Cable outer diameter and conductor size
• Expected IP protection level
• Installation method
• Available mounting space
• Expected vibration or movement
• Temperature and environmental conditions
• Required certifications or documentation

This information allows the supplier to evaluate the actual application instead of recommending a connector based only on a general product category.

Reliable Robotic Connectivity Starts with the Moving Interface

Industrial robots are becoming more connected, more automated, and more dependent on uninterrupted power, signal, and data transmission. Yet one of the most demanding parts of the electrical system remains the physical connection between moving equipment, cables, and control interfaces.

An industrial waterproof connector can provide valuable environmental protection, but the most reliable robotic solution also considers locking security, cable strain relief, contact configuration, installation conditions, and long-term maintenance requirements.

For robotic systems exposed to vibration, movement, dust, moisture, and industrial fluids, connector selection should begin with one practical question: what will this connection experience after the robot starts moving?

E-Weichat provides waterproof connector solutions and customized cable assembly options for industrial equipment and demanding connection applications. For robotics projects, connector selection can be evaluated according to actual power, signal, cable, installation, and environmental requirements to support a more application-specific connection solution.

Frequently Asked Questions

What is an industrial waterproof connector used for in robotic systems?

An industrial waterproof connector can be used for power, signal, control, or other electrical interfaces in robotic equipment where environmental protection and reliable mechanical connections are required. The specific connector should be selected according to the electrical load, cable, installation method, and operating conditions.

Is IP68 protection necessary for every industrial robot connector?

Not necessarily. The required IP rating depends on the installation environment. Indoor equipment in a protected cabinet may require a different solution from a robot operating near coolant, washdown processes, dust, or outdoor conditions. The protection rating should match the actual application risk.

How should buyers verify TUV or other connector certifications?

Buyers should verify certification against the specific connector series and product model being evaluated. Certification scope, applicable standards, and current documentation should be confirmed during technical review rather than assumed across an entire product range.
