As global commercial and industrial (C&I) sectors rapidly adopt decentralized renewable energy frameworks, the demand for Battery Energy Storage Systems (BESS) has reached unprecedented levels. Modern solar-plus-storage architectures, microgrids, and localized EV charging hubs rely on containerized and modular battery racks to smooth out grid fluctuations and store peak solar generation.

However, the operational reliability of these high-voltage, medium-current energy storage arrays depends entirely on the physical layer interconnects. In decentralized setups, connectors linking distribution panels to power conversion systems (PCS) are exposed to continuous electrical stress and unyielding outdoor elements. For engineering procurement contractors (EPCs), choosing an industrial-grade lock-line connector that balances absolute ingress protection with certified technical load capabilities is a critical safety imperative. This application case highlights how E-Weichat’s IP68-rated circular connectors deliver flawless power stability in a leading European C&I solar-storage project.

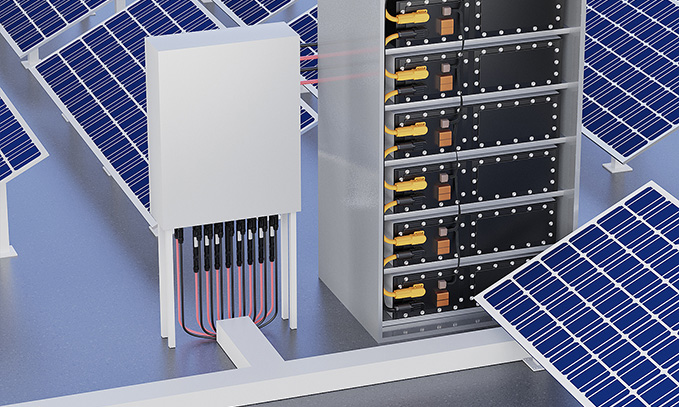

Solar Connectors MC4

Mitigating Thermal Stress and Environmental Vulnerability

An renewable energy deployment firm in Southern Europe was engineering a decentralized 500kWh commercial battery energy storage network across a multi-facility manufacturing campus. The systems were housed in outdoor-rated metal enclosures situated in a semi-arid, dust-heavy region subject to sudden torrential downpours and severe ambient temperature spikes.

The project engineers faced three critical interconnect vulnerabilities:

Electrical Overload Risk: The interconnects needed to continuously handle stable power delivery at 32A and 450V without experiencing thermal runaway or micro-arcing.

Dust and High-Pressure Moisture Ingress: Fine silica dust could penetrate standard couplings, degrading internal pins, while seasonal storms posed a constant threat of high-pressure water ingress.

Vibration and Accidental Disconnection: The constant acoustic and physical vibration from heavy proximity industrial machinery meant traditional push-pull plugs could back out or loosen over time, breaking the continuous ground loop.

To protect their multi-million dollar battery assets and eliminate costly field maintenance, the firm required a certified, medium-power weatherproof industrial connector with a permanent mechanical locking mechanism.

Solution: Integrating E-Weichat 32A/450V IP68 Lock-Line Connectors

To solve these multi-layered operational threats, the integration team deployed E-Weichat’s precision IP68 lock-line connectors (rated precisely at 32A and 450V) as the primary interface between the internal battery distribution units and the external power distribution framework.

1. Rigorous Electrical and Thermal Engineering (32A / 450V)

E-Weichat's circular connector is built with premium, low-resistance gold-plated alloy contacts. This advanced composition ensures that under a continuous high-capacity load of 32A and 450V, the temperature rise remains well within industry-certified thresholds. By maintaining ultra-low contact resistance, the connector significantly reduces thermal dissipation inside the enclosed battery hub, eliminating the risks of power loss and insulation breakdown.

2. Advanced IP68 Waterproof and Dust-Tight Seal

Engineered for extreme environments, these industrial circular connectors utilize heavy-duty, high-resilient silicone O-rings that form an airtight, impervious barrier against external contaminants. Achieving a certified IP68 rating, the interface remains completely safe against prolonged water submersion and high-pressure rain washdowns, maintaining a perfectly sterile internal dry zone for uninterrupted power transmission.

3. The Unyielding Lock-Line Security Mechanism

To combat industrial vibrations and accidental human pulling, E-Weichat’s connector features a dedicated lock-line quick-connect mechanism. Upon mating the plug and socket, a physical metal-reinforced spring latch snaps firmly into position with a tactile, audible click. Once locked, the connection cannot be broken or loosened by wind loads or machinery shaking. This ensures absolute continuity of the electrical circuit and eliminates field downtime caused by contact misalignment.

Results: Uncompromising Renewable Grid Resilience

Integrating E-Weichat’s specialized lock-line interconnect solutions into the decentralized C&I storage network yielded extraordinary field performance metrics:

Zero Electrical Interruptions: Throughout 18 months of continuous operation under high ambient heat and seasonal downpours, the campus recorded zero moisture ingress incidents or thermal faults at the junction nodes.

Enhanced System Safety: The secure lock-line architecture guaranteed a rock-solid physical connection, protecting maintenance technicians from accidental arcing hazards during routine box check-ups.

Streamlined Project Rollout: The ergonomic quick-connect design cut field wiring and assembly times for the outdoor distribution panels by nearly 40% compared to traditional hard-wired compression glands.

For global green energy system integrators seeking scalable, highly certified, and weather-proof connectivity, E-Weichat’s 32A 450V industrial circular connectors represent the definitive benchmark for field-tested reliability.
