As commercial and industrial (C&I) solar microgrids expand worldwide, system developers are pushing installations into harsher geographical zones, including high-humidity coastal basins and severe thermal deserts. A leading international EPC contractor recently deployed a 50MW utility-scale solar facility integrated with a 20MW Battery Energy Storage System (BESS). The project demanded structural electrical joints capable of managing extreme thermal cycling, dense atmospheric moisture, and non-stop operational vibration without incurring power degradation or DC micro-arcing.

To secure the entire power transmission grid, the engineering team bypassed conventional off-the-shelf market alternatives and partnered with E-Weichat to implement an integrated, factory-direct interconnect infrastructure solution.

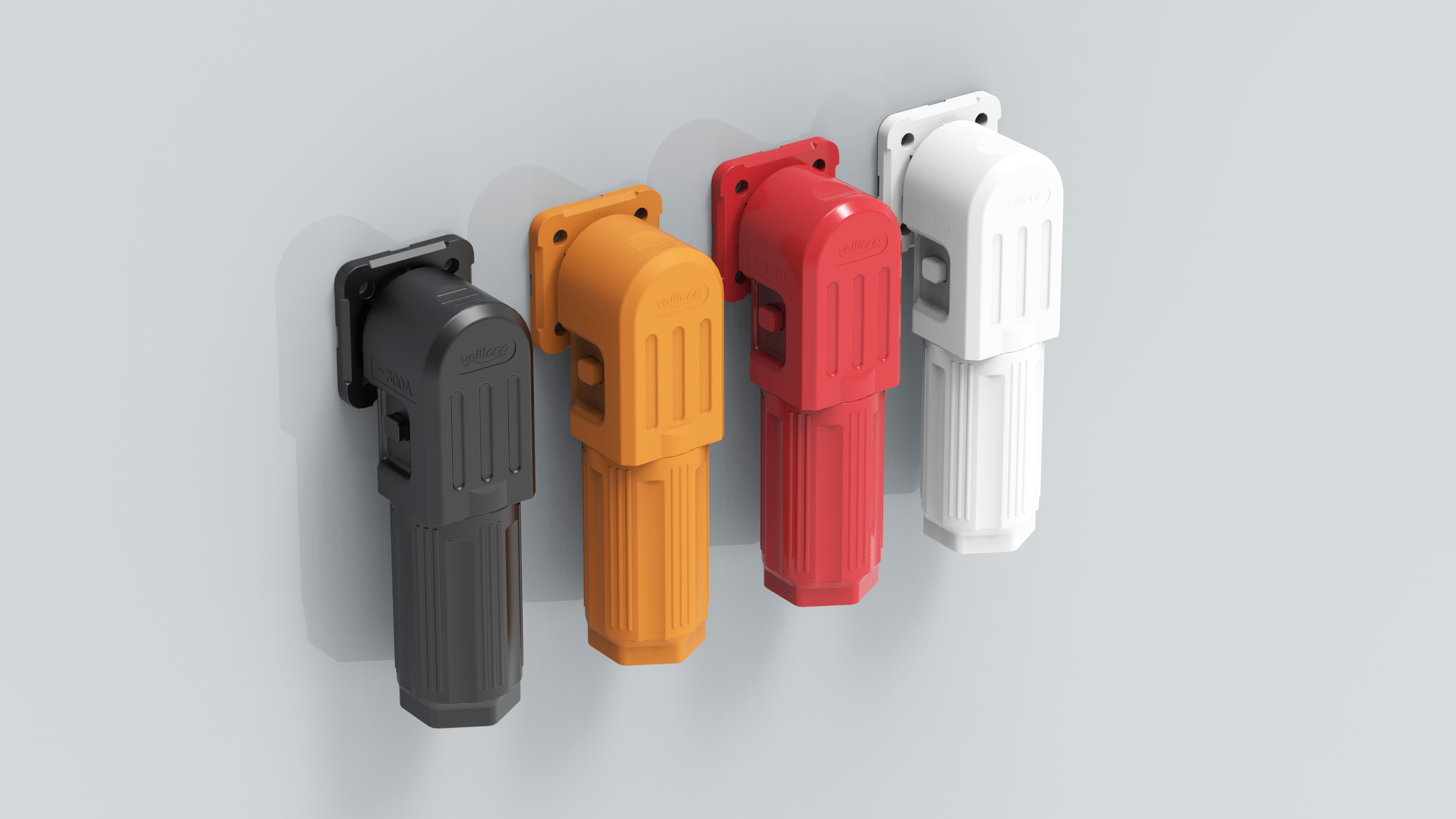

Energy Storage Connector

What are the primary failure points in high-capacity energy storage system connector links?

In large-scale energy storage architectures, massive multi-megawatt battery banks cycle high currents continuously, frequently ranging from 50A to 350A. When standard or low-grade plastics and raw metal alloys are subjected to these immense current densities under prolonged operational cycles, significant local heat generation occurs.

Traditional connection links break down due to thermal fatigue, causing the contact pins to back out slightly. This creates microscopic air gaps that trigger continuous DC micro-arcing. Micro-arcing rapidly degrades energy transmission efficiency, damages nearby system components, and presents a severe, catastrophic fire hazard on the commercial plant floor.

How does a precision-engineered 350A energy storage connector eliminate DC micro-arcing?

To address these thermal and mechanical vulnerabilities, the engineering team deployed E-Weichat’s specialized heavy-duty energy storage connector lineup, featuring continuous current options engineered from 50A up to 350A.

These premium components are built with high-purity copper contact pins coated with a specialized surface electroplating treatment. This advanced electroplating maximizes electrical conductivity while minimizing total contact resistance under prolonged heavy electrical loads.

Furthermore, the external plug housing utilizes 100% virgin, flame-retardant engineering plastics, specifically Polyamide 66 (PA66) and premium Polybutylene Terephthalate (PBT). These high-density materials maintain their rigid structural integrity and anti-loosening locking profile at elevated operating temperatures, ensuring the terminal block pins remain permanently anchored under constant high-voltage distribution.

Why is an IP68 solar PV connector critical for long-term power yield in severe weather solar arrays?

Outdoor photovoltaic grids face relentless exposure to environmental stressors, including driving rain, morning condensation, intense UV radiation, and fine airborne dust particles. Standard IP67-rated connectors frequently experience moisture tracking over a multi-year deployment lifespan, leading to internal corrosion, insulation faults, and systemic power leakage.

Integrating a certified IP68 solar wire connector or a high-performance PV connector network provides an impenetrable, hermetically sealed mechanical barrier.

By utilizing advanced internal silicone sealing gaskets and multi-channel threaded compression coupling glands, these weather-proof interfaces prevent 100% of liquid water and ambient dust ingress. This ultra-rugged construction guarantees that delicate high-purity copper contacts remain entirely dry and oxidation-free, securing uninterrupted, high-yield power generation over a 25-year operational lifecycle.

Engineering Results & Turnkey Customization Capabilities

By integrating E-Weichat’s comprehensive product matrix—spanning micro M6 signal links up to heavy-duty M36 power joints—the facility achieved a flawless commissioning phase with zero localized thermal anomalies or data signal drops.

Beyond utilizing standard catalog parts, the project leveraged full-process direct-factory customization support. Because E-Weichat maintains complete in-house control over the entire manufacturing supply chain—encompassing dedicated R&D engineering, custom mold workshop fabrication, automated injection molding, and precise metal hardware machining—the engineering team successfully executed non-standard structural revisions straight from initial conceptual sketches into deployment-ready finished products.

This comprehensive technical support slashed overall on-site installation labor time by 40% and established a highly resilient, future-proof renewable energy grid infrastructure capable of weathering the toughest outdoor conditions.
