Medical-Grade Circular Connectors for Ultrasonic Equipment

Medical-Grade Circular Connectors for Ultrasonic Equipment-Medical Industry

The global medical electronics sector is undergoing rapid technological advancements, accelerated by the rise of high-definition diagnostic imaging, automated surgical field machinery, and portable point-of-care patient monitors. In these high-precision clinical environments, the stability of electronic signals directly impacts patient outcomes and diagnostic accuracy. Design engineers, laboratory medical device manufacturers, and healthcare system integrators consistently face stringent regulatory hurdles regarding hardware sterilization, material biocompatibility, and electrical insulation.

When generic data plugs or low-grade power interfaces are used in hospital settings, they fail to endure chemical maintenance routines, exposing high-sensitivity telemetry to catastrophic tracking faults. This case study examines how transitioning to specialized medical-grade circular connectors and premium electrical waterproof connectors ensures zero-loss data routing, fulfills strict hygienic compliance, and eliminates localized short circuits in intensive care systems.

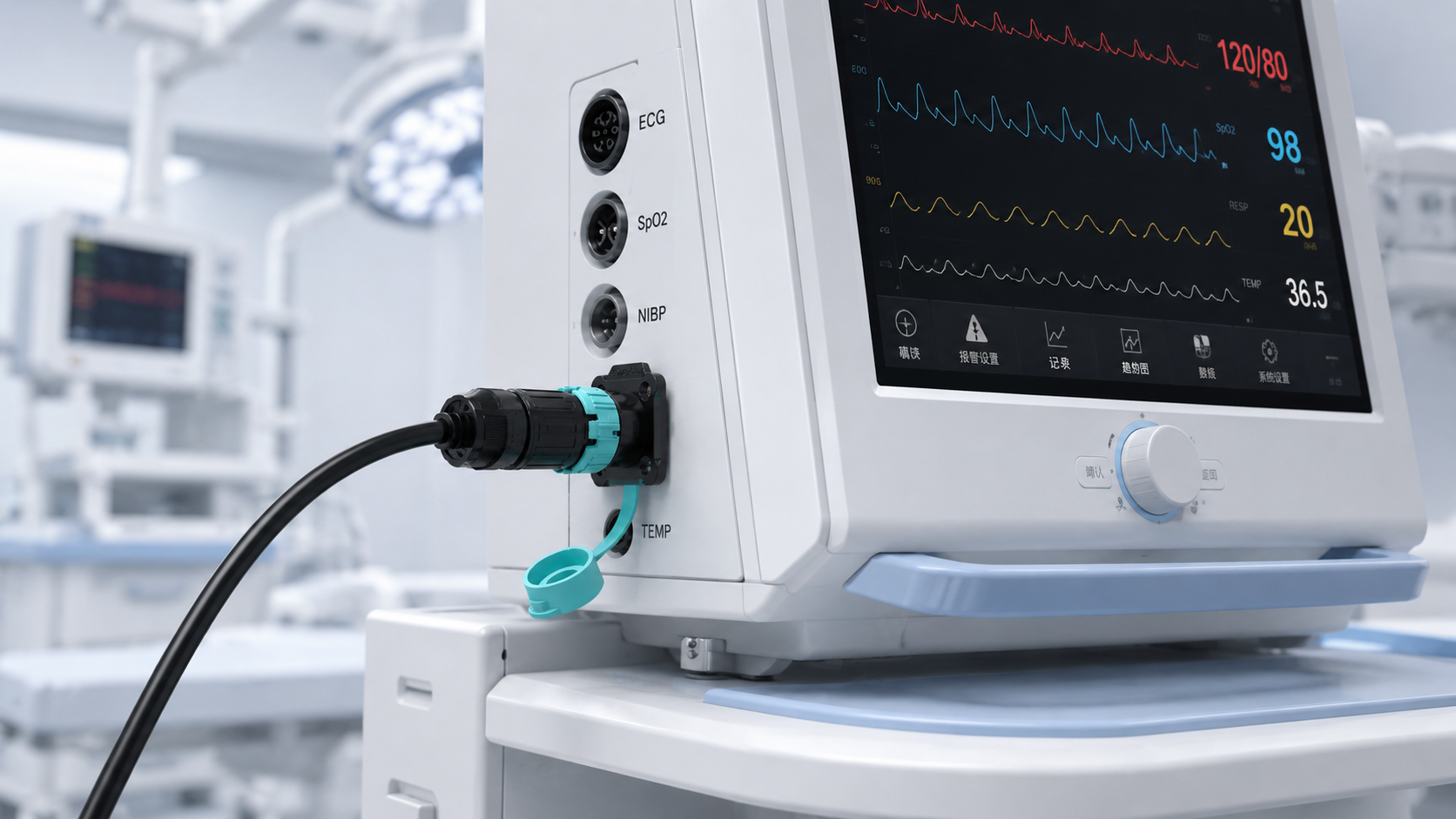

Panel Mount Power Connector

What causes intermittent signal corruption and image artifacting in diagnostic ultrasound equipment?

In modern diagnostic imaging setups—such as portable cardiovascular ultrasound carts and continuous bedside patient monitors—the wiring assemblies are subjected to continuous mechanical movement and rigorous hygienic maintenance. The primary failure mode for standard power and signal lines in clinical areas is chemical degradation from intensive sterilization cycles. Healthcare facilities require frequent wipe-downs using harsh disinfectants, including high-concentration isopropyl alcohol, chemical bleach solutions, and specialized enzymatic detergents.

When a standard industrial connector lacking medical-grade compliance is exposed to these aggressive fluids, the plastic shell material begins to crack and outgas. Over multiple cleaning cycles, the sanitizing liquids migrate into the internal connection block via microscopic material stress cracks. Once this moisture tracking contacts the internal copper core, it initiates rapid galvanic corrosion. Even micro-ohms of added contact resistance disrupt high-frequency sensor telemetry, resulting in severe image artifacting on diagnostic screens, data packet dropouts, and corrupted patient vitals that compromise critical care workflows.

How do biocompatible IP67 circular connectors isolate sensitive medical telemetry during high-pressure chemical sanitization?

To resolve these severe structural failures, medical equipment engineering teams are standardizing their multi-signal device interfaces with E-Weichat’s certified high-precision circular connector product lines.

The structural housings of these medical-grade interfaces are molded from advanced, medical-grade engineering resins that possess exceptional chemical resistance, allowing them to endure thousands of intensive sanitization cycles without cracking or losing tensile strength. The internal interface features a high-density layout fitted with multi-tier medical silicone O-rings, creating a tight hermetic seal that achieves true IP67 waterproof performance in its mated connection status.

Internally, the connection points utilize premium gold-plated copper contacts, guaranteeing exceptionally low contact resistance and pristine, zero-attenuation data flow. This internal layout ensures that low-voltage physiological signals, high-bandwidth ultrasound imaging packets, and multi-channel telemetry streams remain perfectly isolated from external fluid tracking, accidental operating room spills, or airborne moisture.

Engineering Deployment Results & Healthcare Infrastructure Performance

Integrating E-Weichat’s precision waterproof cable connectors yielded immediate operational improvements across complex clinical diagnostic assemblies:

Flawless Signal Integrity and Zero Distortion: The gold-plated contact architecture completely eliminated sensor drift and image artifacting, ensuring crisp, high-definition data routing for sensitive patient diagnostic monitoring.

Complete Resistance to Sterilization Chemistry: The medical-grade resin housing maintained structural durability against daily aggressive chemical wipe-downs, showing zero signs of degradation, stress cracking, or outgassing over prolonged field deployment.

Secure, Ergonomic Handling for Medical Staff: The quick-locking mating mechanism provides crisp tactile and visual alignment confirmation, allowing clinical technicians to quickly detach or secure device probes safely under high-pressure operating room environments.

Source-Factory Manufacturing Excellence & Tailored OEM Capabilities

Achieving this degree of regulatory compliance and high-precision performance demands uncompromising manufacturing controls at every step of the fabrication process. Operating as a premier source-factory manufacturer based in Shenzhen Gongming, E-Weichat manages the complete production cycle within our own facilities—including our specialized in-house custom mold workshop, high-speed automated injection molding bays, and precision metal hardware machining lines.

Whether your next-generation medical telemetry array, portable diagnostic cart, or high-density surgical robotics system requires standard catalog components or a completely customized multi-pin waterproof wire connector configuration built straight from your initial blueprints or engineering sketches, E-Weichat executes the technical engineering and delivers sterile-compliant, field-ready hardware to your exact requirements.
