The expanding global marketplace for architectural illumination, landscape transformation, and smart municipal street networks requires electrical infrastructure to maintain uncompromised continuity under brutal outdoor conditions. Unlike commercial indoor light fittings sheltered within conditioned envelopes, outdoor power distribution grids operate on the frontline of relentless climatic stress.

From seaside coastal boardwalk installations enduring high-salinity marine air to high-density city plaza lighting grids exposed to severe rain drenching and continuous solar radiation, physical termination nodes face intense degradation. Within these sprawling electrical arrays, a minor sealing vulnerability at a single cable connection point can trigger extensive circuit shorting, trip safety breakers, accelerate terminal corrosion, and result in catastrophic municipal or commercial maintenance overhauls. This case study details how standardizing on specialized, premium IP68 waterproof cable connectors and high-reliability circular splitting blocks provides long-term operational resilience and future-proofs high-exposure lighting networks against catastrophic water egress.

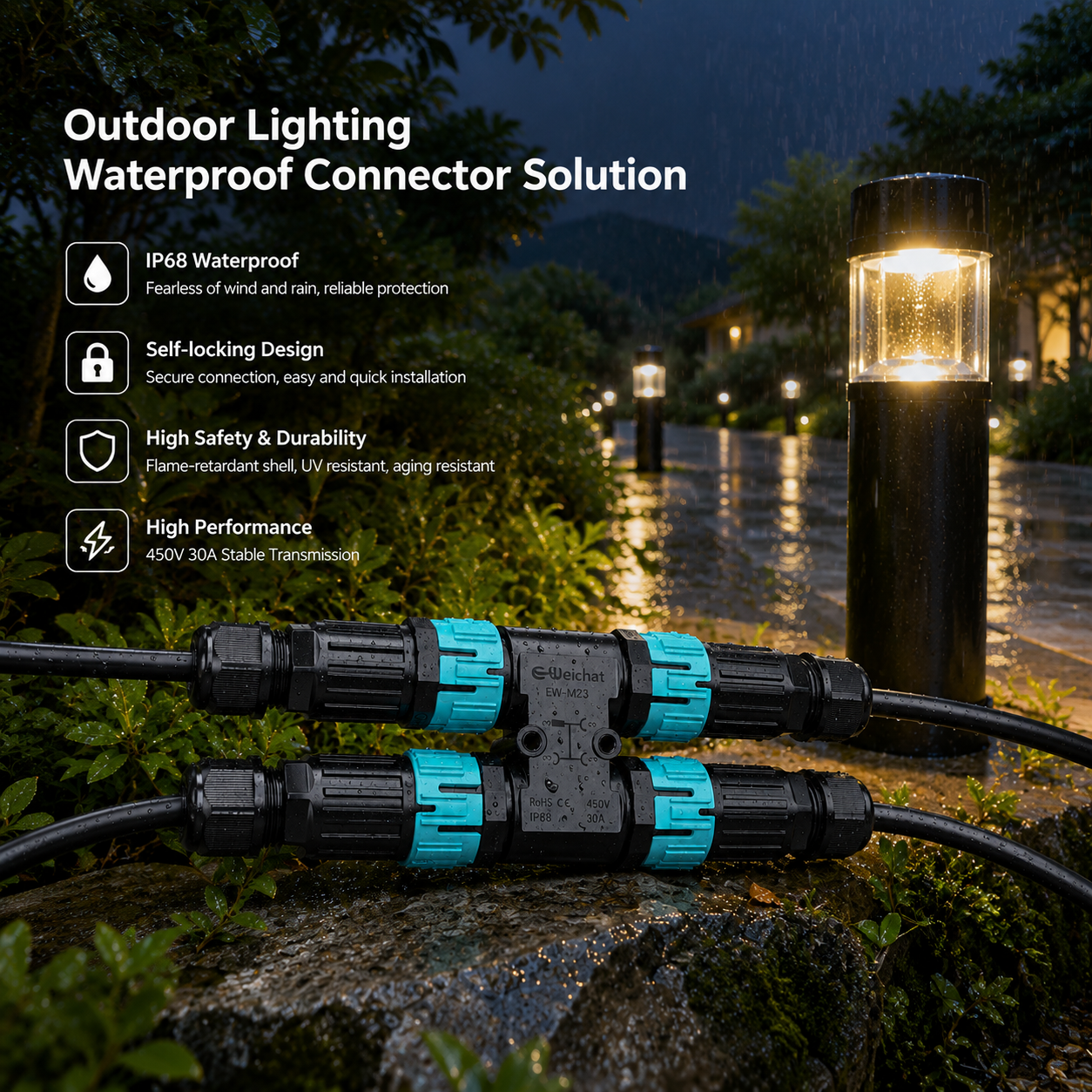

ip68 cable connector


Field Challenge Analysis: Capillary Pressure Waves and Thermal Cycling

A leading commercial electrical contracting firm executing a multi-million-dollar outdoor infrastructure upgrade across a sprawling public parkland and coastal waterfront entertainment district encountered recurring electrical faults, intermittent lamp flickering, and ground-fault circuit interrupter (GFCI) tripping. The project featured hundreds of ground-recessed uplights, high-mast architectural wash lights, and linear LED facade accents.

An in-depth technical diagnostic review identified a series of physical layer design vulnerabilities linked to standard installation methods:

  • The Vacuum Effect of Diurnal Thermal Cycling: During operational hours, high-power LED arrays generate substantial localized heat, which causes the internal air inside the luminaire housing and adjacent cable lines to expand. At dawn, when the system powers down, temperatures drop sharply, creating a localized micro-vacuum inside the cable jackets. If the terminating junctions are not completely sealed with a certified waterproof cable connector, this pressure differential draws humid air, ground moisture, and dew straight into the core of the wire.
  • Capillary Moisture Tracking Along Copper Strands: Once moisture crosses a weak connection seal, capillary action takes over. The liquid travels horizontally along the interior spaces between copper strands like a straw, eventually reaching sensitive drivers and internal distribution control cabinets located dozens of meters away, leading to widespread corrosion and systemic component failure.
  • Ultraviolet Degradation and Material Embrittlement: Connections positioned on exterior building envelopes or light poles face relentless exposure to ultraviolet (UV) radiation. Standard, non-rated industrial plastics degrade quickly under solar radiation, experiencing surface micro-cracking, brittleness, and structural relaxation that destroys the physical seal holding the cable insulation.
  • High Labor Overhead and Complex Branch Topology: Outdoor lighting networks require continuous branching lines to drive long series of light fixtures. Traditional techniques using field-wrapped splice tape inside standard plastic junction boxes are labor-intensive, dependent on technician skill, and prone to installation errors that increase the mean time to repair (MTTR) during routine maintenance.

    • The Engineering Solution: Standardizing on Advanced Circular IP68 Interfaces

    To eliminate these systemic failure points and ensure an uninterrupted twenty-five-year operational lifecycle, the project engineering desk replaced all makeshift field splices with standardized, high-performance industrial circular waterproof connectors and integrated multi-way splitters across the entire electrical network.

    Key Structural and Material Advancements of the Overhauled Framework:


  • Certified IP68 Submersion Defense: The upgraded circular connector interfaces utilize precision-molded internal silicone compression gaskets and dual-stage sealing rings. This configuration creates a true hermetic barrier around varying cable diameters, preventing moisture ingress even during extended deep-water submersion or during intensive high-pressure municipal washdown procedures. Zero Moisture Ingress Incidents: Across multiple severe storm surges and continuous high-pressure landscape irrigation washdowns, not a single electrical node recorded moisture intrusion or altered insulation resistance.
  • UL94-V0 Flame-Retardant and High-UV Polymers: Molded from premium, impact-resistant, and UV-stabilized engineered polymers, the outer shells eliminate structural weathering, cracking, and dimensional shifting despite enduring constant thermal expansion and contraction cycles across a broad operating threshold from minus 40 up to plus 85 degrees Celsius. Zero Moisture Ingress Incidents: Across multiple severe storm surges and continuous high-pressure landscape irrigation washdowns, not a single electrical node recorded moisture intrusion or altered insulation resistance.
  • Vibration-Resistant Threaded Locking Rings: To guarantee that high winds, structural shifting, or heavy ground traffic do not compromise physical connection continuity, the connectors utilize a secure threaded locking ring system. Once torqued, it locks the male and female elements together into a single mechanical block that cannot be disconnected without tools. Zero Moisture Ingress Incidents: Across multiple severe storm surges and continuous high-pressure landscape irrigation washdowns, not a single electrical node recorded moisture intrusion or altered insulation resistance.
  • High Power Density in a Compact Footprint: The streamlined circular profile enables optimal layout flexibility within compact handholes, architectural trim pathways, and tight pole-base junctions, allowing multi-phase power distribution loops to run smoothly without taking up excessive spatial layout volume. Zero Moisture Ingress Incidents: Across multiple severe storm surges and continuous high-pressure landscape irrigation washdowns, not a single electrical node recorded moisture intrusion or altered insulation resistance.

    • Strategic Field Implementation Protocol

    The deployment of the specialized weatherproof connectivity system followed a strict integration sequence to guarantee zero environmental bypass:

  • Phase 1: Outer Jacket Strip Calibration: Field technicians used specialized tools to clean back the outer insulation jackets of the heavy-core outdoor cabling, leaving a perfectly round, smooth cross-section to pass through the internal sealing glands.
  • Phase 2: Terminal Block Wiring Integration: Individual wire leads were secured into high-purity copper alloy terminal contacts, which maintain exceptionally low contact resistance and prevent localized heat spikes during extended operation.
  • Phase 3: Gland Dome Nut Compression Torque: The external compression dome nuts were torqued to specific factory parameters. This forced the internal rubber sleeves to grip the cable jackets tightly, completing the airtight hermetic seal.
  • Phase 4: Multi-Way Branching Distribution: For multi-light arrays running in series, technicians deployed specialized 3-way waterproof cable connectors, allowing them to split the main incoming feed into clean, isolated branch outputs directly on the structural masonry without needing bulky external junction enclosures.
