Heavy-Duty Circular Connectors for AGV Automated Charging

Heavy-Duty Circular Connectors for AGV Automated Charging-Robotics Industry

As global logistics hubs and smart manufacturing facilities rapidly transition toward complete automation, Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs) have evolved from novelty systems into critical operational infrastructure. To maintain continuous 24/7 fleet cycles, these robotic systems demand highly optimized, fast-charging docking bays and zero-latency data telemetry uplinks.

A primary failure point in robotic fleets is the degradation of standard plastic interfaces caused by continuous blind-mating cycles, high mechanical vibration, and dust accumulation. This application case study examines how a leading material handling robotics manufacturer eliminated fleet downtime by integrating premium E-Weichat high-precision all-metal push-pull circular connectors into their next-generation heavy-duty fleet charging platforms.

Operational Challenges In Robotic Fleet Deployment

The client, an elite industrial robotics integrator specializing in heavy-load AMRs for automotive assembly lines, faced a recurring bottleneck during autonomous docking procedures. Their previous fleet architecture relied on standard threaded plastic or rectangular multi-pin interfaces for power recharging and system health diagnostic data downloading.

Field diagnostics revealed three significant vulnerabilities under continuous factory floor operations:

Mechanical Structural Fatigue: The repetitive "push-and-pull" action of automated blind-mating docking stations subjected the plastic housings to extreme shear stress, resulting in cracked alignment keys and pin misalignment.

Severe Environmental Contamination: Factory floors generate substantial airborne particulates, metallic dust, and ambient moisture. Standard interfaces failed to maintain an unyielding IP67 isolation perimeter over extended cycles, causing micro-short circuits during high-current charging.

Data Transmission Interruption: High-frequency data syncing from the AMR’s onboard LiDAR and central processing micro-controllers suffered from localized electromagnetic interference (EMI) generated by nearby heavy factory machinery, leading to corrupted firmware updates during dock updates.

IP68 Industrial Connectors

Technical Solution: Integrating Heavy-Duty All-Metal Push-Pull Interconnects

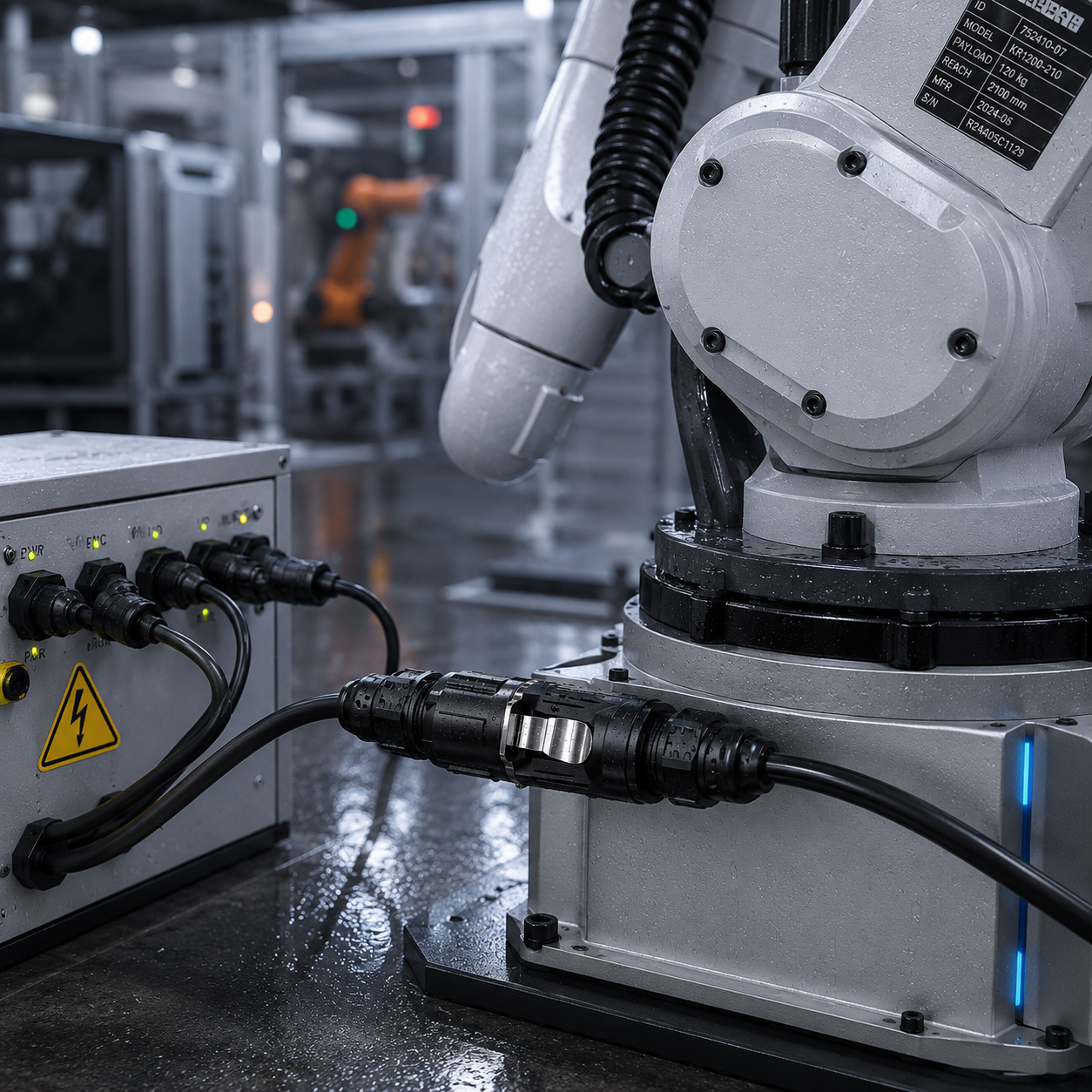

To resolve these technical bottlenecks without adding excess physical footprint to the compact robot chassis, the engineering team overhauled the docking array by implementing custom E-Weichat rugged metallic circular connectors featuring a precise push-pull self-locking mechanism.

- For Primary Fleet Power Recharging: A specialized heavy-duty circular connector for AGV automated charging, handling a continuous 25A current allocation at 500V AC. It utilizes a dedicated hybrid layout to manage main feeder paths safely alongside grounding infrastructure.

- For Diagnostic Telemetry Uplinks: A high-density 12-pin IP67 push-pull connector for AMR sensors and telemetry routing, ensuring multi-channel telemetry streams are synchronized in seconds.

Technical Engineering Advantages:

One-Button Quick-Release Tactile Latching: Unlike time-consuming threaded locks, the push-pull self-locking design enables the robot to establish an instantaneous mechanical joint upon contact with the charging dock. The intuitive click feedback ensures full locking insertion without requiring physical rotational torque from the internal robotic actuators.

Anti-Vibration All-Metal Shielding: Crafted from a premium zinc-aluminum alloy with high-grade electroplated finish, the robust housing functions as a native Faraday cage. This ensures comprehensive electromagnetic shielding while easily absorbing severe drops, structural impacts, and high mechanical pulling forces.

Blind-Mating Docking Connector Alignment: Designed with high-tolerance internal guidance channels, the connector allows for optimized axial misalignment compensation, making it the perfect blind-mating docking connector for automated robotic docking columns.

Concluding Long-Tail Industry Focus

Modern automated fulfillment centers cannot afford localized network vulnerabilities. By choosing an elite, vibration-proof, all-metal circular design over cheap plastics, robotics integrators can future-proof their fleets against environmental wear. For advanced industrial systems requiring high-ampacity power and multi-channel data integration within spatial-restricted frames, E-Weichat’s comprehensive portfolio of high-precision push-pull metallic circular connectors delivers the field-tested performance that modern automated infrastructure demands.
