The modernization of acute care infrastructure—specifically integrated operating rooms, hybrid surgical suites, and advanced diagnostic imaging departments—has significantly heightened the density of local electronic apparatus. Within a standard three-meter sterile field around a patient, a synchronized network of high-definition endoscopy cameras, electrosurgical units (ESUs), patient vitals monitors, automated fluid pumps, and mobile C-arm X-ray systems operate simultaneously.

Managing the intricate web of power lines and data telemetry links driving these critical care sub-systems presents a unique set of engineering challenges. Traditional commercial-grade terminal interfaces or basic industrial plugs are fundamentally unsuited for clinical environments. They fail to meet strict medical safety margins and pose significant biological and electromagnetic risks.

This technical application case study examines the systematic implementation of factory-certified ISO 13485 compliant interconnects and high-density medical-grade circular connectors. These solutions optimize power distribution architecture, ensure uninterrupted signal integrity, and maintain absolute compliance with strict international medical device standards.

The Core Technical Challenge: Mitigating Leakage Current and EMI

When deploying multiple high-frequency electrical devices in close proximity to an anesthetized patient, two major technical vulnerabilities emerge: microscopic leakage current and electromagnetic interference (EMI).

Under international safety standard IEC 60601-1, the maximum allowable patient leakage current under normal operating conditions is exceptionally low (often down to 100A or fewer for Type BF/CF applied parts). Standard industrial plugs allow minor stray currents to ground through internal capacitive coupling. In a surgical environment, even a minor micro-ampere electrical leak migrating through a cardiac catheter or an open surgical site can cause localized tissue damage or trigger cardiac arrhythmias.

Electromagnetic Interference (EMI) Waveforms

Modern electrosurgical units generate massive bursts of radiofrequency (RF) energy to execute tissue cutting and coagulation. If the adjacent data lines feeding vital sign monitors or endoscopic video feeds are poorly isolated, this RF energy couples directly into the signal paths. The result is distorted visual displays, false physiological alarms, or corrupted diagnostic telemetry.

To isolate these compounding variables, facility infrastructure engineers specify advanced low-leakage current surgical interconnects. These interfaces integrate unique safety and shielding mechanisms:

High-Dielectric Polymer Insulators: Utilizing specialized liquid crystal polymer (LCP) or polyetheretherketone (PEEK) insert matrices guarantees an exceptionally high insulation resistance (exceeding 10^12 Omega), preventing stray electron migration between adjacent contact pins.

360-Degree Comprehensive Grounding Shells: Specifying a continuous, metal-to-metal internal shield structure ensures that high-frequency EMI waveforms are intercepted at the connector interface and safely shunted to the system ground line before they can distort sensitive data packets.

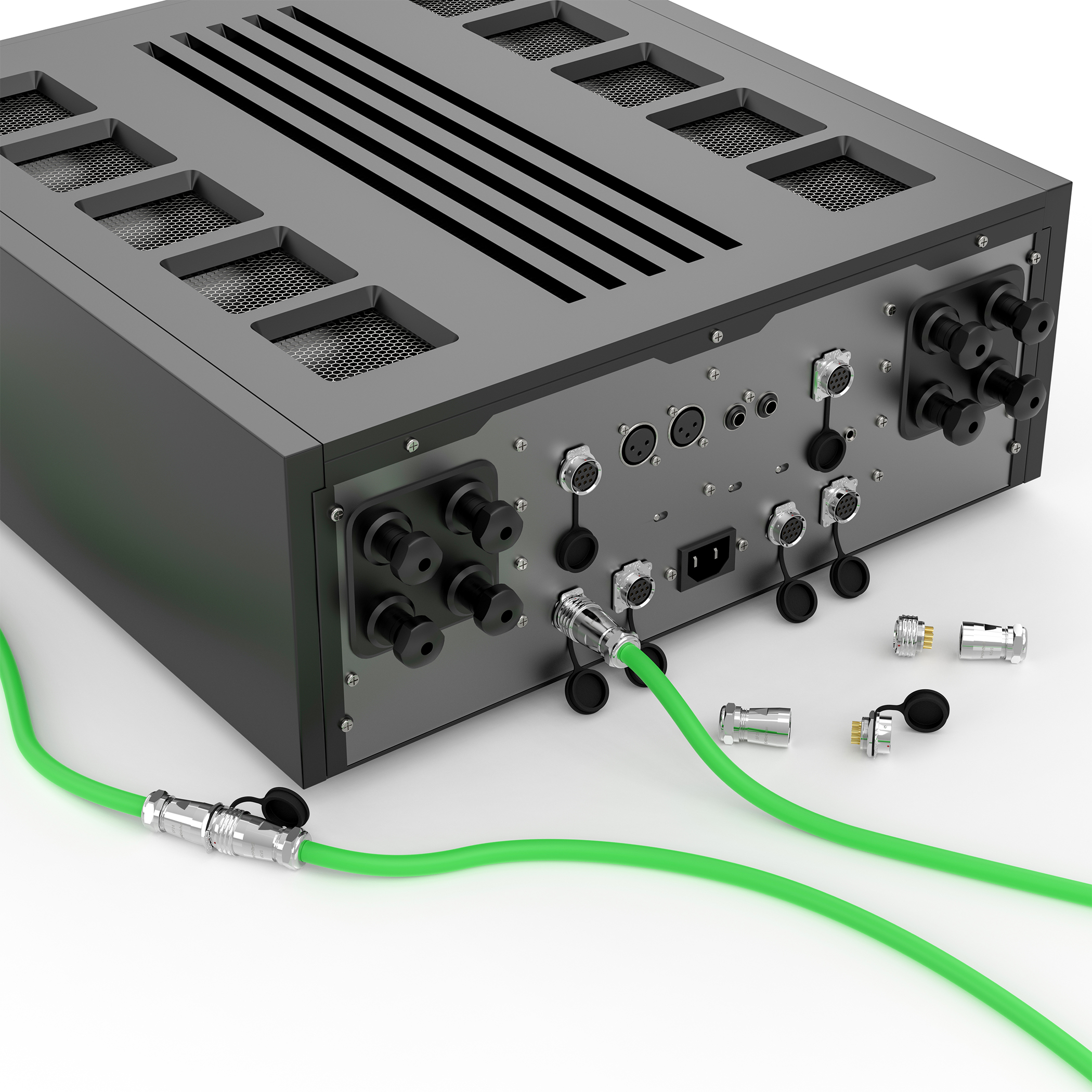

Electrical Waterproof Connectors

Material Integrity Against Harsh Clinical Disinfection Regimens

Beyond achieving perfect electrical performance, components deployed within a sterile field must withstand continuous, aggressive chemical and thermal decontamination protocols.Between surgical cases, clinical environmental services teams apply intensive chemical washdowns utilizing hydrogen peroxide vapor, isopropyl alcohol concentrations, and quaternary ammonium compounds to eliminate pathogens. Furthermore, modular cable assemblies connected to handheld surgical tools are routinely subjected to steam sterilization cycles inside high-pressure autoclaves (typically running at 134°C at 2 bar of pressure for extended exposure times).Standard plastics degrade rapidly under these conditions, turning brittle, cracking along stress points, and losing their sealing capabilities within a few dozen cycles. To guarantee long-term durability, leading medical device manufacturers specify specialized autoclave-resistant push-pull connectors and antimicrobial medical cables.The outer material armor utilizes proprietary medical-grade silicone or thermoplastic elastomer (TPE) jackets engineered to resist chemical absorption. The mating interfaces integrate specialized Viton or high-performance silicone O-rings that maintain their elastic sealing memory over hundreds of autoclave cycles, ensuring a permanent IP67 touch-proof connectors rating that prevents liquids from entering the internal contact array.

Human Factors: Push-Pull Mating and High Mating-Cycle Durability

In high-stress operating room environments, medical staff must be able to swap out modular accessories quickly, intuitively, and without looking directly at the interface. Traditional threaded twist-lock connectors are ill-suited for these quick changeovers because they are slow to operate and can easily be cross-threaded if forced under pressure.

Integrating a precision-machined high-mating cycle medical interfaces layout with an automatic self-latching push-pull mechanism resolves these human factor challenges. This ergonomic design offers several distinct operational benefits:

Blind-Mating Guide Paths: Internal structural keyways align the plug automatically upon entry, ensuring perfect pin registration every time and eliminating the risk of bent or broken contacts.

Audible and Tactile Connection Feedback: The click of the spring-loaded latching sleeve provides immediate feedback, giving surgical technicians full confidence that a secure connection has been established.pins.

Space-Saving Cross-Sections: The compact, slim profile of these circular connectors allows multiple interfaces to be packed tightly together on the equipment panel, shrinking the footprint of the medical cart or surgical boom console.

Long-Term Operational Benefits and Supply Chain Compliance

Transitioning to a modular, high-reliability shielded signal interfaces framework delivers significant operational advantages across a healthcare network’s entire equipment lifecycle. Hospital biomedical engineering teams can perform routine maintenance or update separate hardware components without needing to overhaul complex, hardwired internal systems.When a surgical tool or video monitor cable needs a safety check, the modular line can be disconnected in seconds. This allows technicians to replace just the pluggable cable assembly rather than taking the entire medical console out of service.Ultimately, choosing fully documented, factory-certified medical interconnect components ensures complete regulatory alignment during strict clinical audits, safeguards patient safety, and provides the uncompromised power and signal continuity required by modern medical facilities.
