In high-pressure industrial fluid power applications, the interface between electronic control units (ECUs) and hydraulic actuators represents a critical failure point. This case study explores how a leading manufacturer of industrial forging presses overcame persistent signal loss and physical connector degradation caused by high-frequency vibration and hydraulic oil exposure. By implementing specialized Ruggedized Industrial Circular Connectors and Vibration-Dampening Interfacing, the facility transitioned from reactive maintenance to a high-uptime operational model.

1.The Industrial Context: The Forging Environment

Unlike the precise, low-impact movements found in the robotics sector, heavy industrial forging equipment operates under conditions of extreme physical stress. The client utilized a 5,000-ton hydraulic press system that generated significant structural resonance and operated in an environment saturated with aerosolized hydraulic fluids and metal particulates.The primary challenge was the degradation of the power and signal lines feeding the proportional valves. Standard industrial connectors were failing within three months, leading to unplanned outages that cost the facility approximately $12,000 per hour in lost productivity.

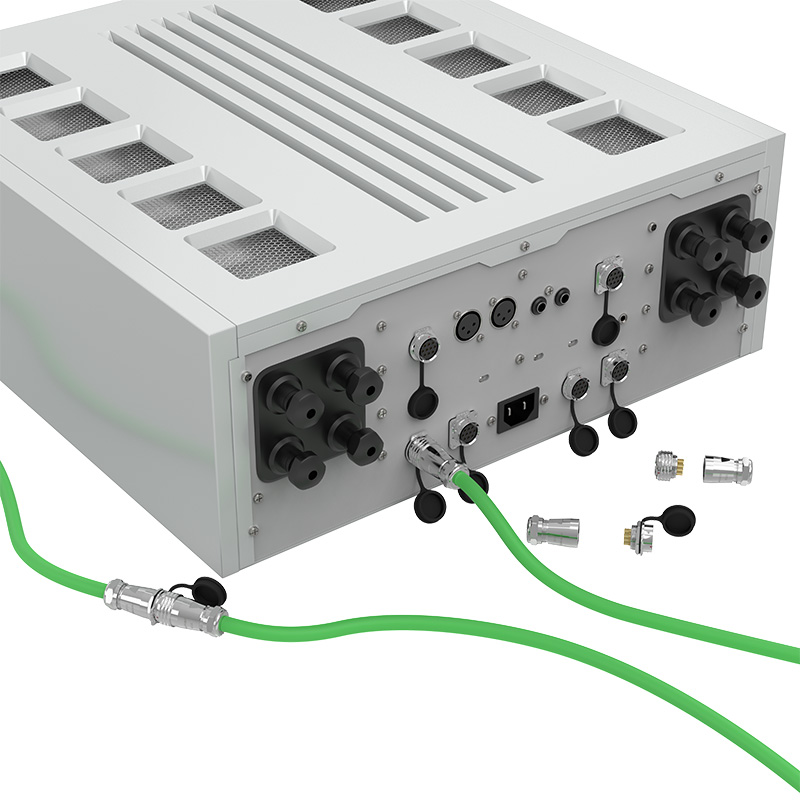

industrial cable connectors

2.Technical Challenges: Beyond Standard Sealing

The engineering audit identified three primary failure modes that rendered typical connectivity solutions obsolete:

Stress Corrosion Cracking (SCC): Continuous exposure to fire-resistant hydraulic fluids (Phosphate Esters) caused standard plastic connector housings to embrittle and crack.

Contact Fretting: High-frequency vibration led to micro-movements between the pin and socket, resulting in oxidation and intermittent signal "noise" that confused the PLC (Programmable Logic Controller).

Hydrostatic Pressure Ingress: During high-pressure wash-downs for maintenance, cleaning agents were forced past traditional O-rings, leading to internal short circuits.

3. The Solution: High-Integrity Interconnect Architecture

The project required a total overhaul of the wiring architecture, moving away from generic hardware toward Industry-Specific Heavy-Duty Interconnects.

A. Material Selection for Chemical Inertness

The team replaced standard polymers with Nickel-Plated Aluminum Alloy and Fluoroelastomer (Viton) seals. These materials are chemically inert to the aggressive hydraulic fluids used in the plant, ensuring that the connector housing and internal seals remained pliable and intact over a multi-year lifecycle.

B. Vibration-Resistant Locking Mechanisms

To combat contact fretting, the solution utilized Triple-Start Threaded Coupling with an integrated anti-decoupling ratchet. This mechanical lock ensures that even under constant 20G vibration, the connector cannot back off. Internally, the use of Hyperboloid Contacts provided multiple points of contact per pin, ensuring signal continuity despite structural resonance.

C. Integrated Strain Relief and Shielding

Given the electromagnetic interference (EMI) generated by large motor drives in the facility, the new connectors featured 360° EMI shielding. Furthermore, heavy-duty Metal Cable Glands with integrated strain relief were used to ensure that the weight of the hydraulic hoses and cables did not put physical tension on the electrical termination points.

4. Results: Operational Excellence and ROI

After 18 months of continuous operation with the new interconnect strategy, the results were definitive:

MTBF (Mean Time Between Failures) Extension: The connector lifecycle extended from 3 months to over 18 months (and counting) without a single reported failure.

Signal Accuracy: Digital oscilloscope testing showed a 95% reduction in signal noise on the proportional valve control lines, leading to more precise press movements and higher quality finished parts.

Maintenance Savings: The facility eliminated four major unplanned shutdowns per year, resulting in an estimated annual saving of over $450,000 in direct production time.

5. Conclusion: Precision in Heavy Industry

The success of this application demonstrates that in the Industrial Equipment sector, the connection point is the most vital component of the control loop. While the robotics industry may prioritize speed and light weight, the heavy machinery sector demands Mechanical Resilience and Chemical Defense. By investing in high-integrity interconnect technology tailored for the hydraulic environment, manufacturers can safeguard their productivity against the harshest operational realities.
