Industrial equipment is usually designed around major components: motors, controllers, sensors, drives, power supplies and mechanical assemblies.

Connectors receive far less physical space in the design documentation.

Yet a connection point can determine whether a sensor remains connected, whether a cable can be replaced efficiently and whether moisture or dust reaches an electrical interface.

For equipment manufacturers, the connector is therefore not just a wiring accessory. It is part of the machine's service and environmental protection strategy.

Industrial Equipment Is Becoming More Modular

Modern industrial machines increasingly combine multiple functional modules.

Sensors, control units, motors, displays and communication devices may be connected as separate assemblies during manufacturing or servicing.

This modular structure creates a practical requirement: the electrical connection needs to remain reliable while still allowing the equipment to be assembled, tested and serviced efficiently.

A waterproof connector can provide a defined interface between these modules when environmental protection is required.

Why Fixed Wiring Is Not Always the Best Option

A permanently spliced cable can work well when the equipment is assembled once and rarely serviced.

Industrial machinery is often different.

A damaged sensor, cable or external module may need to be replaced without dismantling the entire machine.

A properly designed connector interface can make the replacement process more structured.

This does not mean every industrial connection should be detachable. The decision should be based on the machine's maintenance strategy.

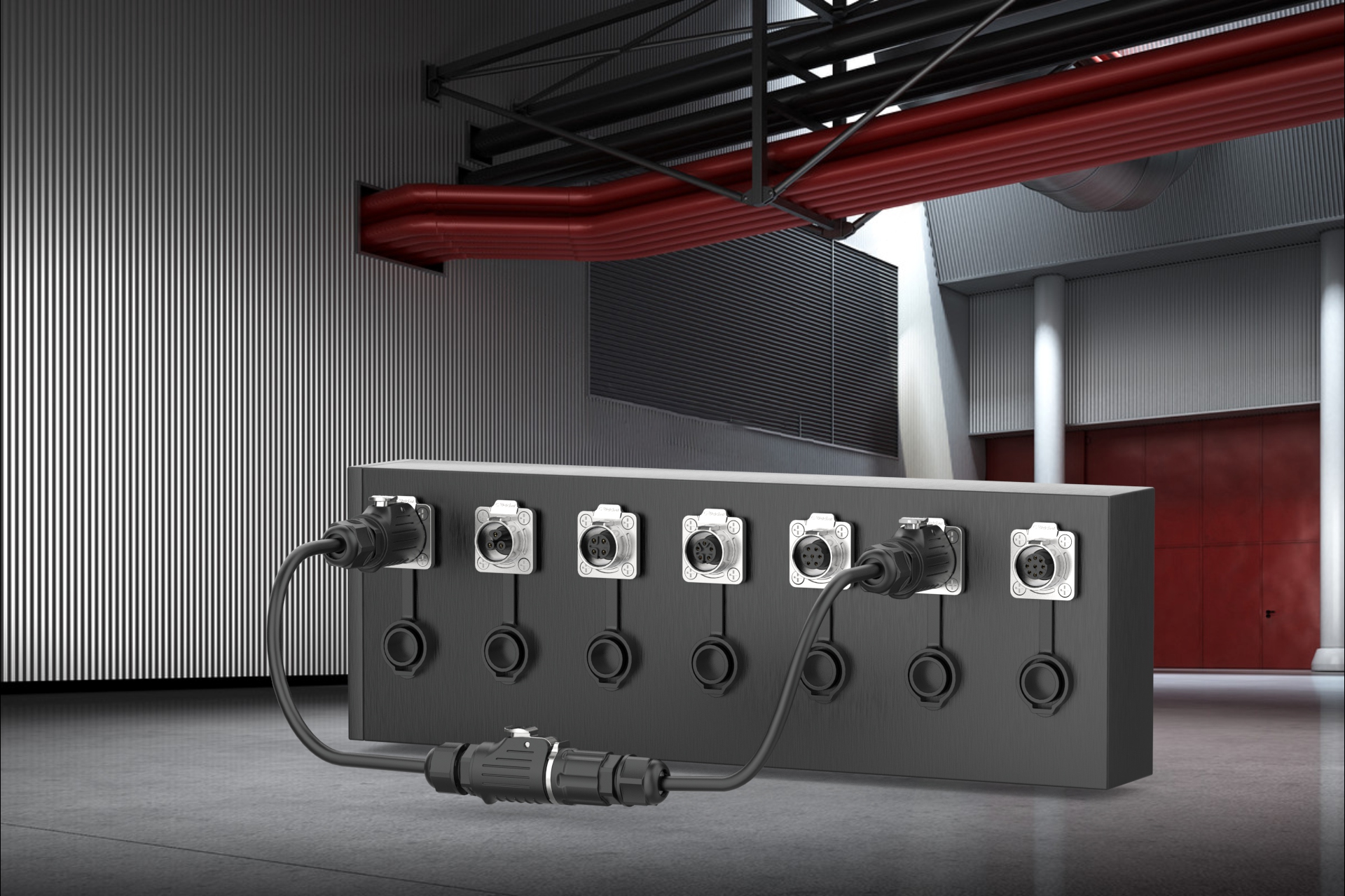

Industrial Waterproof Connector

IP68 for Equipment Installed in Exposed Environments

Industrial equipment may operate indoors, outdoors or in partially protected areas.

Some machines face humidity, water spray, dust or cleaning processes.

When the connection point requires enhanced environmental protection, an IP68 waterproof connector can be considered.

However, IP68 should be understood within its defined test conditions.

It does not automatically indicate resistance to vibration, continuous cable flexing, chemicals or every possible industrial environment.

Vibration and Cable Movement Need Separate Attention

One of the most common mistakes in industrial connector selection is assuming that environmental protection automatically means mechanical durability under every condition.

Industrial machinery can generate vibration during normal operation.

In some machines, the cable may also move relative to the connector.

Engineers should therefore evaluate connector locking, cable routing and strain relief as separate design considerations.

The Connector Should Not Carry the Cable Load

A connector is designed to establish an electrical interface. Cable routing and strain relief should prevent excessive mechanical load from being transferred directly to that interface.

When the cable is routed correctly, the connector can operate within its intended mechanical conditions.

Compact Equipment Creates Installation Problems

Industrial control systems are becoming more compact.

Manufacturers want more functionality without increasing the machine footprint.

This puts pressure on every component inside the enclosure, including connectors.

Engineers should consider connector dimensions early because changing the connector after the enclosure is finalized can require changes to panel openings, cable routing and assembly procedures.

Connection Design and Maintenance

Maintenance is one of the strongest reasons to think about connector architecture during the initial machine design.

A field technician may need to replace a sensor, cable or external device.

If the connection is accessible and clearly defined, troubleshooting can be simpler.

If the connection is buried inside a wiring harness or enclosure, the same repair may require significantly more work.

This is particularly relevant for equipment sold into overseas markets where field service may be performed by technicians who were not involved in the original assembly.

What Industrial Equipment Buyers Should Check

When qualifying a connector supplier, buyers should consider more than price and delivery time.

Environmental protection rating
Connector dimensions
Cable compatibility
Locking mechanism
Operating conditions
Installation method
Available product documentation
Customization capability
Testing requirements

These factors can have a direct effect on assembly efficiency and field maintenance.

Waterproof Does Not Mean “Maintenance-Free”

This distinction is important.

An IP68 connector can help protect a connection from defined ingress conditions, but it does not remove the need for correct installation and periodic inspection where the application requires it.

If a machine operates in an environment with oil, chemicals, abrasive dust or continuous vibration, those factors should be evaluated separately.

OEM Projects Require More Than Standard Catalog Selection

Industrial equipment manufacturers frequently have requirements that do not fit perfectly into a standard catalog configuration.

Cable length, connector orientation, wiring configuration and installation structure may vary from one machine to another.

E-Weichat supports OEM/ODM requirements for waterproof connectors and cable assemblies, allowing application-specific connection requirements to be discussed during equipment development.

Testing Before Mass Production

Prototype testing is particularly useful for industrial equipment.

Instead of evaluating the connector only on a workbench, engineers can install it on the actual machine and evaluate cable routing, mating access, clearance and environmental exposure.

This can reveal design issues before tooling and mass production are finalized.

Why the Connector Should Be Part of the Machine Architecture

Industrial equipment is a system. The connector is one part of that system.

Its performance depends on how it interacts with the cable, enclosure, mounting structure and surrounding environment.

For this reason, connector selection should happen alongside mechanical and electrical design rather than being left until the final purchasing stage.

FAQ

1. Why use an IP68 connector on industrial equipment?

IP68 connectors can be considered when an electrical connection requires protection against defined dust and water ingress conditions. The complete application should be evaluated before selection.

2. Does IP68 mean the connector is suitable for continuous vibration?

No. IP protection and vibration performance are different considerations. Locking structure, cable routing and mechanical strain should be evaluated separately.

3. Can E-Weichat provide customized industrial connector assemblies?

E-Weichat supports OEM/ODM waterproof connector and cable assembly requirements. Specific dimensions, cable specifications and connection configurations can be discussed according to the equipment design.
