Why the Panel Interface Matters in Medical Equipment Design

In medical and laboratory equipment, cable connections are often treated as small details compared with controllers, sensors, imaging modules, pumps or power systems. However, the connection point between an external cable and the equipment enclosure can directly affect installation, serviceability and long-term reliability.

A panel mount connector provides a fixed interface through the equipment housing, allowing cables and external devices to be connected without routing every cable permanently through the enclosure. For equipment manufacturers, this creates a more structured connection point. For service teams, it can also simplify cable replacement and maintenance.

However, selecting a panel mount connector for medical equipment involves more than choosing a connector that fits into a cutout. Engineers need to consider the electrical load, contact configuration, cable requirements, enclosure design, environmental exposure and maintenance access.

The right panel interface can support reliable equipment operation. The wrong selection can create unnecessary assembly complexity or make future servicing more difficult.

Application Case: External Connections on Medical and Laboratory Equipment

Consider a manufacturer developing equipment that uses external sensors, auxiliary modules and power or signal cables. The device enclosure contains sensitive electronic components, while selected connections need to remain accessible from the outside.

Routing every cable directly into the enclosure would make assembly and future replacement more complicated. The engineering team therefore requires a fixed connection interface mounted through the equipment panel.

The main requirements include:

Secure mounting through the equipment enclosure
Stable cable connection
Clear and repeatable connector positioning
Electrical specifications matched to the application
Practical access for equipment assembly and maintenance
Suitable environmental protection where required

In this type of application, a medical equipment panel mount connector can provide a defined connection point between the internal electrical system and external equipment cables.

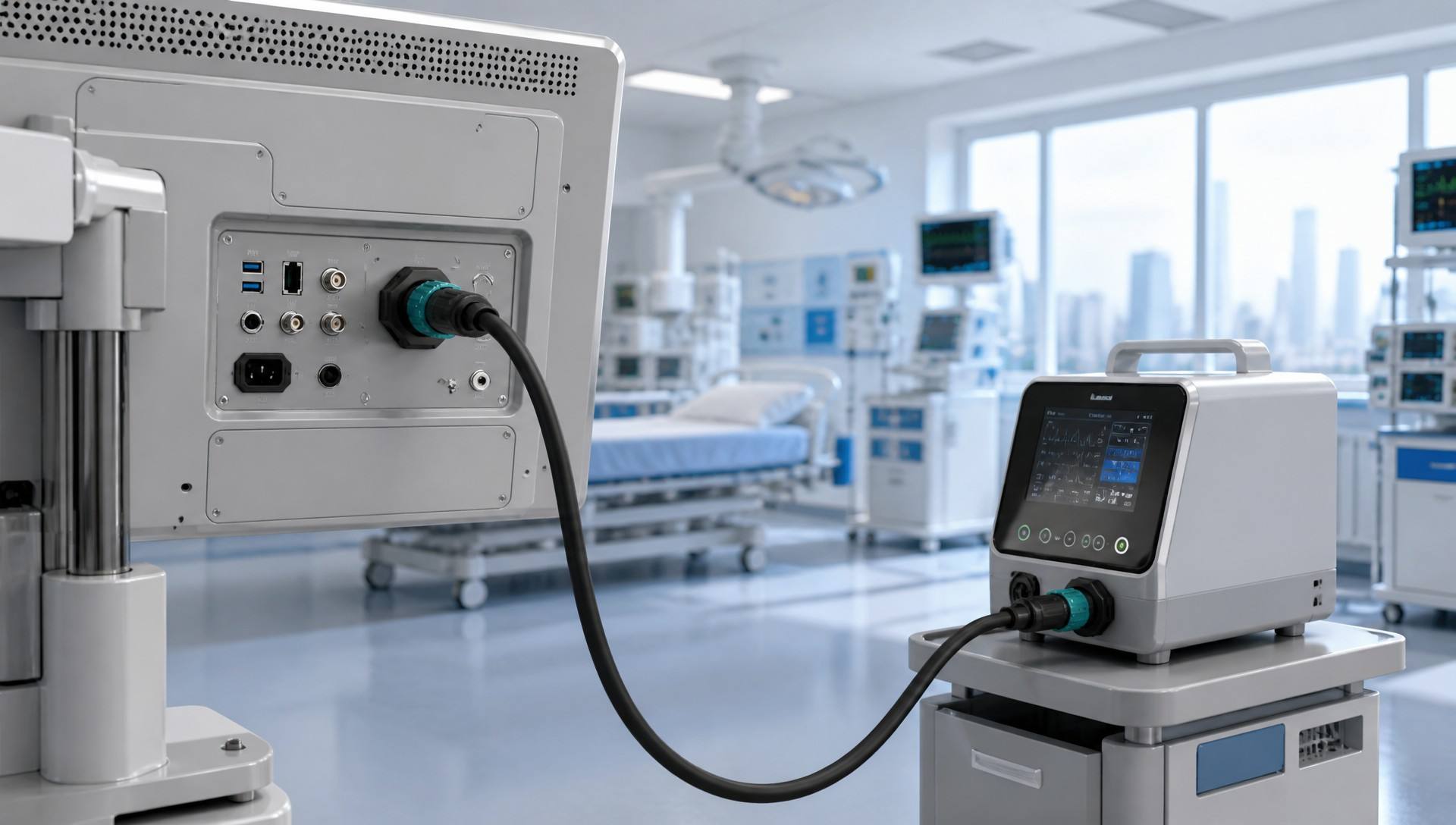

Male and Female Connectors

Why a Fixed Panel Interface Improves Equipment Design

A panel-mounted connection creates a consistent interface on the equipment enclosure. Rather than depending on a permanently attached external cable, the device can use a connector mounted in a defined location.

This approach can support several engineering and manufacturing objectives.

More Consistent Assembly

For equipment produced repeatedly, connection locations should be consistent from one unit to another. A properly specified panel mount cable connector helps create a standardized interface during assembly.

The panel opening, mounting arrangement and connector orientation can be incorporated into the equipment design, helping production teams follow a more repeatable assembly process.

Simplified Cable Replacement

External cables can be exposed to repeated handling, bending or accidental pulling. If a cable needs replacement, a detachable panel interface may simplify service compared with replacing a permanently routed cable assembly.

This is particularly relevant when equipment is installed in laboratories, clinics or technical environments where service access and maintenance time need to be considered.

Sealing Requirements Depend on the Actual Equipment Environment

Not every medical device requires the same level of environmental protection. A connector installed inside a controlled laboratory may face different conditions from equipment used near liquids, cleaning processes or demanding industrial environments.

Where protection against dust and water ingress is required, a waterproof panel mount connector may be considered. For applications requiring a high level of protection, an IP68 panel mount connector can be evaluated according to the product's specified operating conditions.

However, engineers should not select a protection rating without considering the complete installation.

The performance of the final connection can depend on factors including:

Correct panel installation
Sealing components supplied with the connector
Proper mating between connector halves
Compatible cable dimensions
Correct assembly procedures

An IP68 rating should therefore be reviewed in relation to the exact connector model and the intended installation conditions.

Electrical Requirements Should Define the Connector Configuration

Medical and laboratory equipment may use different types of electrical connections within the same system. Some interfaces may carry low-level control signals, while others may support higher power requirements.

For this reason, a general term such as “medical device connector” is not enough to define the correct product.

Before selecting a panel mount connector for medical equipment, engineers should confirm:

Operating voltage
Required current
Number of contacts
Signal or power requirements
Required cable size
Cable outer diameter
Panel thickness and mounting dimensions

The connector configuration should be selected according to the actual electrical and mechanical requirements of the equipment.

Panel Space Is Often an Overlooked Design Limitation

Equipment panels may contain displays, switches, control interfaces, ventilation structures and multiple cable connections. Available space can therefore become limited.

Connector selection should take into account not only the front-facing interface but also the space required behind the panel.

Engineers should evaluate:

Connector body dimensions
Rear clearance inside the enclosure
Cable bend space
Required spacing between adjacent interfaces
Access for installation and service tools

A connector may physically fit the front panel while still creating difficulties inside the enclosure. Reviewing the complete installation geometry early in the design process can help avoid unnecessary redesign later.

Secure Mating Helps Maintain a Stable Equipment Interface

Medical and laboratory equipment may be moved during installation, repositioned during use or serviced throughout its operating life. External cables can also be handled frequently.

A suitable mating structure helps maintain the intended connection after installation. Depending on the connector design, threaded or other locking mechanisms may help prevent unintended separation.

The correct approach depends on how often the cable needs to be disconnected, how accessible the connection is and what mechanical conditions the equipment will experience.

For frequently serviced equipment, engineers should balance secure connection performance with practical usability.

Cleaning and Maintenance Should Be Considered During Selection

Some equipment environments require regular cleaning or involve exposure to moisture. In these cases, the connector interface should be evaluated according to the actual cleaning method and environmental requirements.

A sealed panel connector may help support enclosure protection where the specified connector and complete installation are suitable for the application.

It is important to distinguish between a general industrial connector and a connector configuration selected for the actual environment.

Buyers should verify the relevant specifications of the exact product, including protection ratings, material information and applicable documentation.

Certification and Documentation Must Be Checked by Product Model

Medical and laboratory equipment manufacturers may have specific documentation requirements during product development and supplier qualification.

Where TUV certification or other applicable approvals are required, the documentation should be verified for the exact connector series or model being evaluated.

Certification requirements should not be assumed based on a manufacturer's general product range. The exact product configuration, applicable standards and intended use should be confirmed during the selection process.

The same principle applies to material properties, flammability requirements and environmental performance.

Key Questions Before Choosing a Panel Mount Connector

Before selecting a connector for medical or laboratory equipment, engineering teams should define the application clearly.

What electrical load will the connector carry?
How many contacts are required?
Will the interface carry power, signals or both?
What cable dimensions will be used?
What panel thickness and mounting space are available?
Is environmental sealing required?
Does the application require an IP68-rated solution?
How frequently will the cable be connected or disconnected?
How accessible will the connector be after equipment installation?
What documentation or certifications are required for the project?

Answering these questions early can help narrow the selection of a panel mount connector for medical equipment and reduce the risk of choosing a connector that creates later assembly or maintenance problems.

The Connection Point Should Support the Entire Equipment Lifecycle

A panel interface is used throughout more than one stage of equipment production.

It affects manufacturing assembly, external cable installation, routine operation and future maintenance. For equipment manufacturers, connector selection should therefore consider the complete lifecycle rather than only the initial installation.

A properly selected industrial panel mount connector can help create a defined and repeatable equipment interface while supporting the electrical, mechanical and environmental requirements of the application.

For projects requiring additional protection, waterproof connector designs can be evaluated according to the specified conditions, including IP68-rated options where appropriate.

E-Weichat provides panel mount and waterproof connector solutions for industrial equipment and customized cable connection applications. Connector selection can be evaluated according to the actual electrical specifications, cable dimensions, enclosure design and environmental requirements of each project.

Frequently Asked Questions

What is a panel mount connector used for in medical equipment?

A panel mount connector creates a fixed connection interface through an equipment enclosure. It can support external power, signal or equipment connections while providing a defined location for cable connection and service access.

When should a waterproof panel mount connector be considered?

A waterproof panel mount connector may be considered when the equipment environment requires protection against dust or water ingress. The required protection level should be matched to the actual operating and installation conditions.

Can an IP68 panel mount connector be used for every medical device?

Not necessarily. An IP68-rated connector should be selected only where the required protection level and installation conditions match the application. Electrical specifications, panel dimensions and the complete assembled connection must also be considered.
