High-Reliability Outdoor LED Waterproof Connectors for Industrial Lighting

High-Reliability Outdoor LED Waterproof Connectors for Industrial Lighting-Lighting Industry

For outdoor industrial lighting infrastructure—ranging from coastal high-mast seaport arrays and stadium floodlights to municipal street lamps and architectural facade washers—electrical connectivity determines system longevity. Because these luminaires are frequently installed in inaccessible locations, premature connectivity failure leads to exorbitant maintenance overheads and brand damage for lighting manufacturers. At Weichat, we engineer and manufacture high-reliability outdoor waterproof connectors designed to deliver a permanent, gas-tight power and signal bridge capable of defying the world's most punitive outdoor climates.

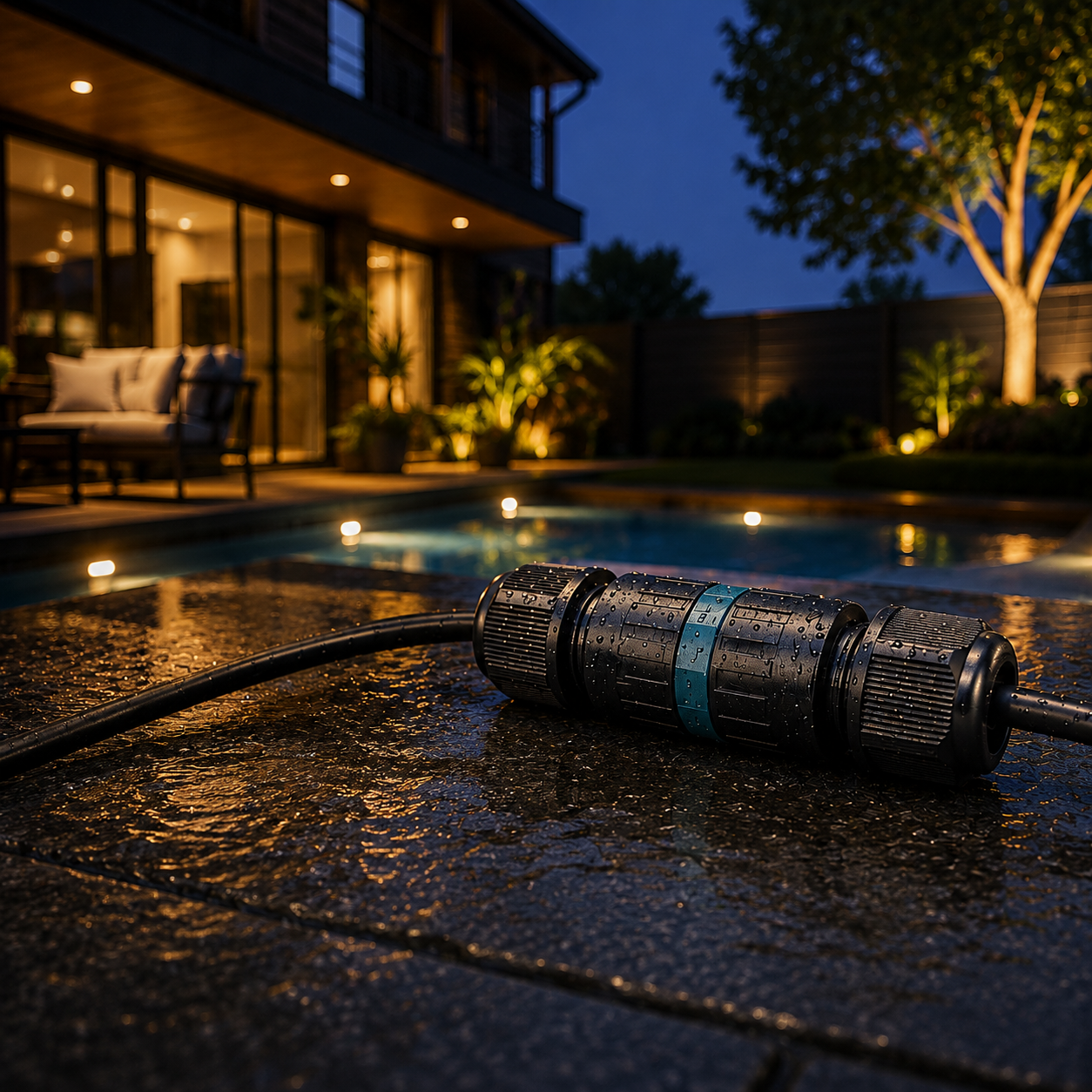

Waterproof Cable Connector

Critical Sealing Challenges Facing Outdoor Luminaire Integrators

1.Moisture Ingress via Capillary Action and Vacuum Cycling

High-power LED luminaires generate substantial internal heat during operation, causing internal air expansion. When turned off at dawn, the sudden drop in temperature creates an intense internal vacuum—the thermal "breathing effect." If the outdoor connectors lack precise structural tolerances, this vacuum forces humid ambient air and micro-droplets of rainwater straight through the cable strands into the driver housing via capillary action, causing devastating electrical shorts.

2.UV-Induced Degradation and Salt-Spray Corrosion

Outdoor lighting nodes installed on coastal highways or marine terminals are subject to non-stop solar ultraviolet (UV) radiation and airborne salinity. Standard commercial plastics quickly degrade, fade, and develop microscopic fractures under intense UV exposure. Concurrently, corrosive salt ions penetrate unsealed contact interfaces, rapidly oxidizing copper pins, causing resistance spikes, voltage drops, and localized thermal thermal failure.

3.High Field Labor Costs and Human Error in Installation

Wiring and splicing cables on a bucket truck thirty meters in the air during bad weather is a recipe for operational failure. Traditional screw terminal blocks and manual tape-wrapping require high technician precision. One single loosely torqued screw or unevenly wrapped tape can compromise a multi-thousand-dollar lighting installation, resulting in expensive warranty recalls and massive field liabilities for contractors.

The Weichat Heavy-Duty Waterproof Connector Solution

To eliminate these persistent industry vulnerabilities, Weichat developed a specialized series of architectural-grade outdoor waterproof connectors featuring quick-mating threaded locking mechanisms.

1.Multi-Tier O-Ring Compression Technology

Weichat’s outdoor waterproof connectors utilize a proprietary multi-tier sealing system featuring anti-aging silicone O-rings. When the connector halves are mated, these gaskets undergo calibrated radial and axial compression inside precision-machined grooves. This creates an absolute physical barrier that completely blocks water under high pressure, effectively neutralizing the vacuum forces generated during the luminaire's nightly thermal cycles.

2.Premium UV-Stabilized Engineering Polymers

To guarantee decades of reliable operation under direct sunlight and aggressive coastal salt atmospheres, our connector bodies are injection-molded from premium, UV-stabilized engineering plastics. These materials resist structural embrittlement, stress cracking, and chemical weathering. Internally, the contacts are manufactured from solid brass with high-thickness gold or nickel plating, passing strict multi-hundred-hour salt-spray testing to ensure zero oxidative degradation.

3.Error-Proof Threaded Mating Architecture

Weichat’s quick-connect architecture replaces tedious field slicing with a simple, tool-less push-and-twist threaded locking mechanism. The physical lock provides tactile and audible feedback to field technicians, ensuring a secure, IP-rated environmental seal is established in under ten seconds. This plug-and-play simplicity entirely eliminates human error from high-altitude field installations, slashing labor timeframes on-site.

Manufacturing Excellence and Long-Term Infrastructure ROI

Formally incorporated in 2016 and built upon an R&D and manufacturing foundation originating in 2006, Weichat infuses nearly twenty years of technical expertise into every components we produce. Deploying our specialized outdoor waterproof connectors across global municipal and commercial lighting arrays has generated measurable structural returns:

0% Water Ingress Faults: Complete eradication of condensation-related driver shorts across all monitored coastal and highway lighting infrastructure.

65% Reduction in Field Assembly Overhead: Pre-molded connector interfaces allowed field crews to mount and link luminaires significantly faster than traditional hard-wiring methods.

Guaranteed Maintenance-Free Lifespan: Protecting the electrical junctions allowed high-mast arrays to achieve their full 50,000-hour operational lifespan without a single connectivity interruption.

Strategic Conclusion

In the outdoor lighting industry, the true value of a component is proven by the service calls it prevents. By specifying Weichat’s heavy-duty outdoor waterproof connectors, you insulate your large-scale lighting installations from the costly effects of weather exposure. Contact our B2B technical sales division today using your corporate email address to request comprehensive 3D CAD files, full product specifications, or factory-direct bulk pricing quotes.
