A prominent North American manufacturer of heavy-duty computer numerical control (CNC) milling machinery and automated multi-axis packaging systems was upgrading its high-speed production line infrastructure. The operational core of these complex industrial machines relies heavily on precision servo motor drives that require continuous, uninterrupted transmission of both high-amp power and sensitive encoder feedback data.

The manufacturing plant environment presents incredibly severe challenges for standard electrical interconnections. During 24/7 continuous operations, the factory floor machinery is subjected to intense structural vibrations, high mechanical shocks, and non-stop exposure to airborne cutting fluids, industrial oil splattering, and fine metallic dust. The client’s previous standard-grade terminal plugs experienced frequent pin backing-off and fretting corrosion due to the continuous micro-vibrations. This led to intermittent signal loss in the encoder feedback loop, triggering automatic system errors and causing expensive, unscheduled assembly line shutdowns. Additionally, standard rubber gaskets degraded prematurely under constant contact with corrosive synthetic lubricants, resulting in internal short circuits.

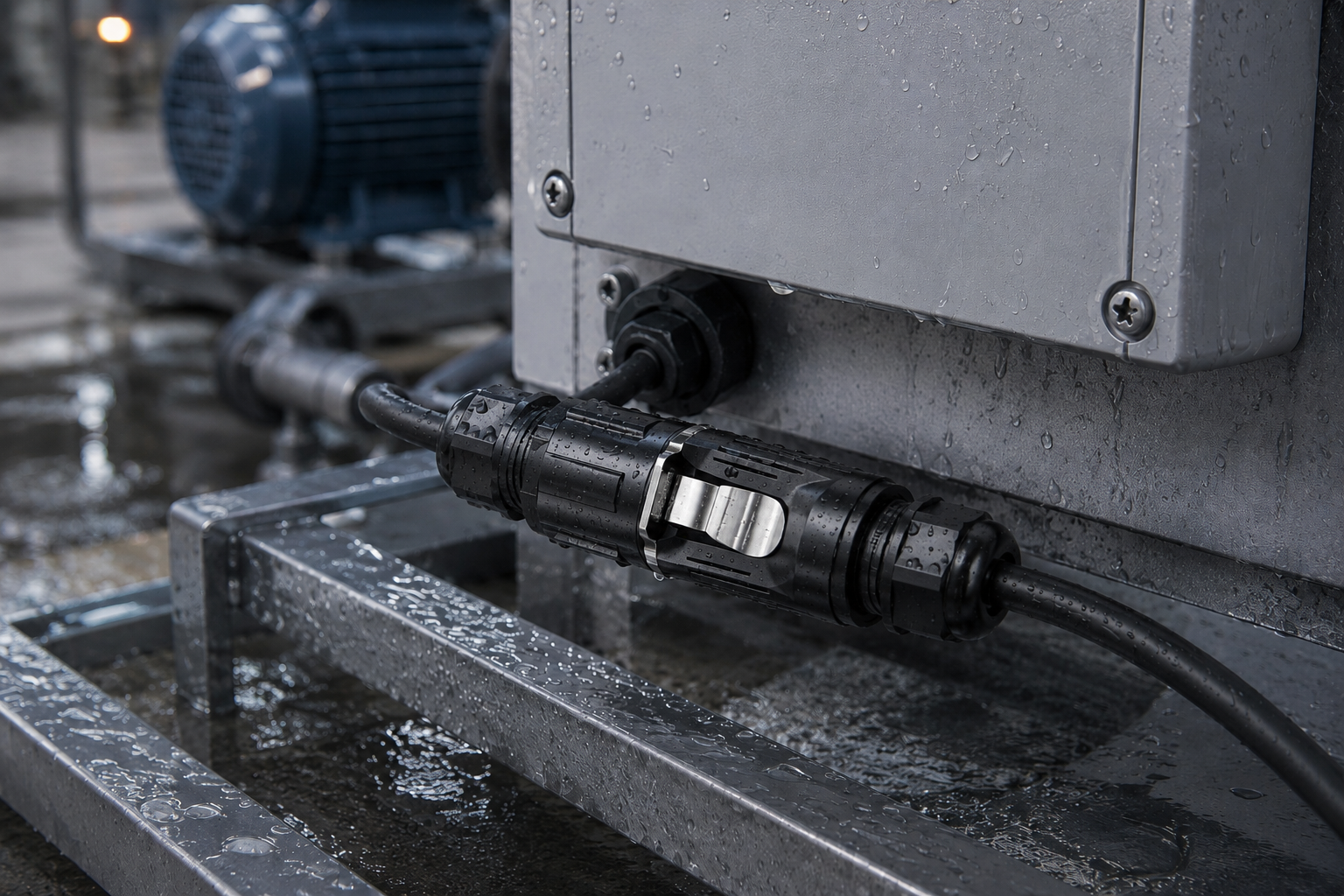

industrial cable connectors

Tailored Technical Interconnect Solution

To eliminate these heavy industrial vulnerabilities, we deployed our ultra-rugged, industrial-grade heavy-duty circular connector series, engineered specifically for high-torque servo motor and factory equipment deployment. The structural plug housing is machined from high-tensile, corrosion-resistant aluminum alloy treated with a hard-anodized finish, ensuring maximum impact protection against dropped tools or heavy shop-floor accidents.

To solve the spatial constraints on modern compact servo motor backplanes, we implemented a specialized high-density power and signal composite contact layout. This integrated design allows a single circular interface to housing 4 heavy-current power pins (engineered for up to 40A each to drive the motor stator) alongside 8 precision gold-plated signal pins (for error-free encoder feedback data). The coupling system features a heavy-duty quick-lock bayonet mechanism integrated with an anti-vibration wave spring washer. This physical locking mechanism ensures the plug remains permanently mated even under severe, multi-axis mechanical oscillation. The entirely sealed interface achieves a certified IP67 and IP68 waterproof and dustproof rating, utilizing durable fluororubber (FKM) O-rings that resist chemical breakdown from harsh cutting oils and coolants.

Implementation Results and Long-Term Value

The integration of our high-durability industrial circular connectors completely transformed the operational efficiency and reliability of the client’s factory automation equipment:

Substantial Space and Labor Savings: Combining high-current power delivery and sensitive control data channels into one single composite aviation plug streamlined the wiring architecture, cutting installation and maintenance time by 45%.

Absolute Environmental Ingress Defense: The oil-resistant fluororubber seals successfully blocked all cutting fluids, mist, and particulate matter, maintaining insulation resistance far above 500 megohms.

Enhanced Machine Longevity: By preserving pristine electrical integrity at the servo motor connection point, the CNC machines maintained maximum positioning accuracy, significantly increasing overall equipment effectiveness (OEE).
