IP68 Waterproof Lighting Connectors: Architectural Success Case

IP68 Waterproof Lighting Connectors: Architectural Success Case-Lighting Industry

Modern municipal lighting infrastructure and commercial architectural illumination projects demand extreme weather survival from underlying electrical components. High-power outdoor LED floodlights, intelligent streetlamp networks, and underwater structural water features are permanently exposed to unforgiving outdoor elements, ranging from sub-zero winter freeze cycles to scorching summer heatwaves. When scaling large-scale exterior lighting systems, project managers consistently encounter tracking failures, ground faults, and sudden insulation resistance drops caused by humidity and moisture ingress.

Subpar terminal junctions and standard plastic wiring casings quickly fracture under relentless ultraviolet radiation, allowing driving rainwater, morning condensation, and high-pressure washing streams to breach the internal power lines and short-circuit the array. Without rugged localized interconnection systems, a single environmental breakdown can darken an entire municipal array, forcing expensive emergency field repairs.

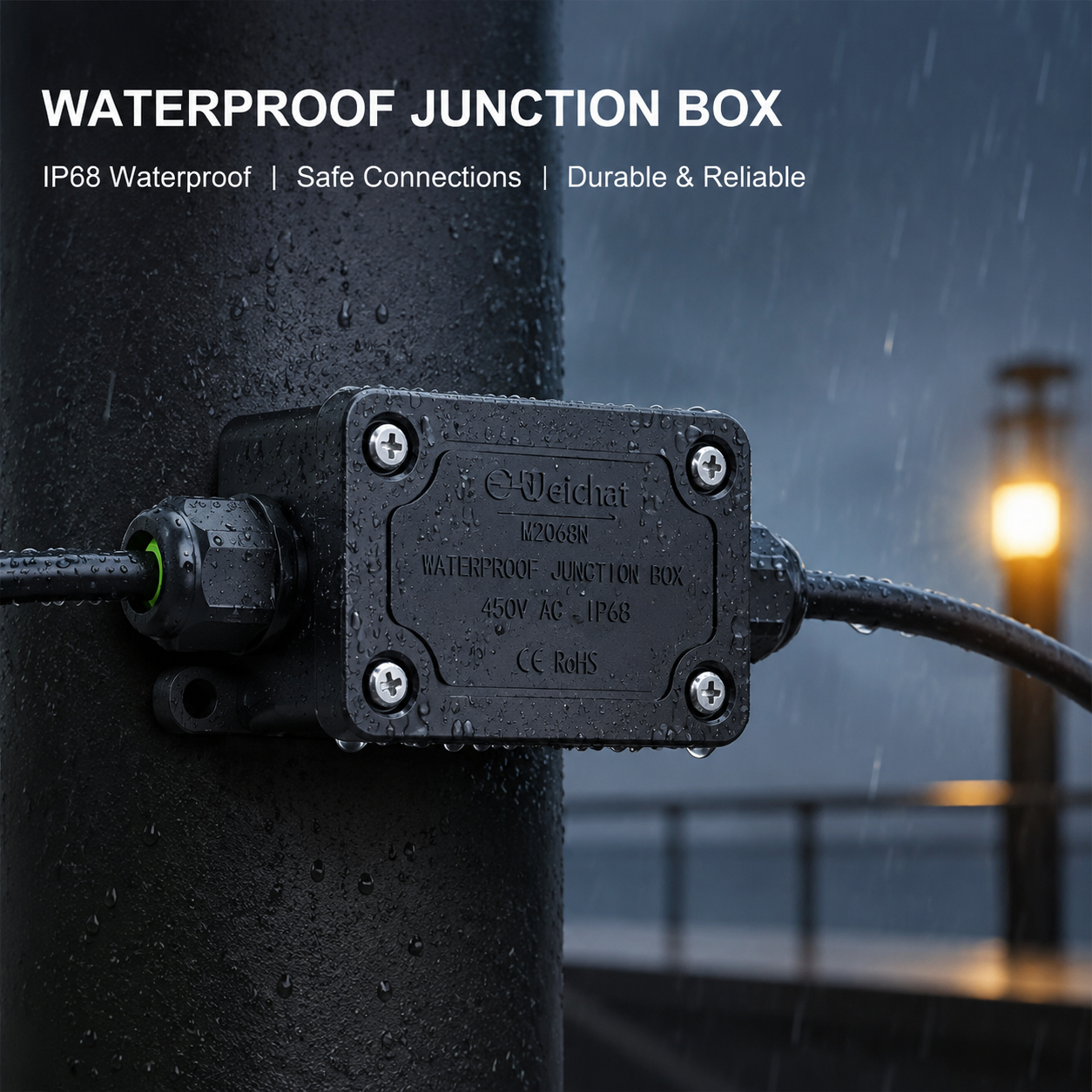

IP68 Waterproof Junction Box

To mitigate these costly environmental field hazards, a prominent municipal infrastructure contractor implemented our specialized IP68 waterproof landscape lighting connector series across a major urban waterfront development project. Operating over an extensive outdoor ambient temperature spectrum spanning from minus 40 degrees Celsius up to plus 125 degrees Celsius, these rugged waterproof profiles provide an airtight environmental barrier for heavy-duty main power distribution lines.

The outer terminal housing is injection-molded from high-tensile PA66 modified with advanced UV-stabilizers, which systematically prevents the plastic shell from becoming brittle, fading, or developing micro-cracks when subjected to direct, continuous solar radiation over decades of service. This custom material baseline ensures that the physical latching locks remain completely structural, eliminating seasonal structural cracking from shifting winter frost and intense summer heat waves.

The internal electrical design of these specialized outdoor interconnect components focuses entirely on superior power transmission efficiency. Utilizing heavy-duty purple copper T2 contacts plated with durable silver and tin, the mated assemblies eliminate the risk of surface oxidation in highly corrosive, humid coastal air. This configuration supports stable power delivery for sprawling, high-density LED frameworks, safely handling extreme operational voltage thresholds up to 1500V DC and sustaining stable currents ranging from 50A to 120A for critical sub-distribution runs. This ultra-low contact resistance limits potential voltage drops across extended long-distance line deployments, ensuring completely uniform luminosity across the entire municipal lighting array.

A central highlight of this outdoor engineering installation is the integration of our advanced one-click quick plugging structure. This press-type locking design eliminates the need for time-consuming traditional screw caps, enabling field technicians to lock down a completely waterproof seal in seconds, even while working in freezing conditions or wearing thick safety gloves.

The integrated secondary locking latch guarantees that high-velocity seasonal wind vibration, structural impacts, and high-pressure municipal washing will not disturb the internal pin alignment or breach the primary waterproof gasket. By integrating these certified IP67 and IP68 industrial interconnect solutions throughout the waterfront array, the urban illumination project recorded zero moisture-related electrical outages during its opening year, drastically cutting field maintenance costs and securing a beautifully reliable urban nightscape.

Advantages

Advantage One

Fast and Convenient
Advantage Two

Customization
