Custom Robotic Wire Harness Assemblies for Industrial Automation

Custom Robotic Wire Harness Assemblies for Industrial Automation-Robotics Industry

At Weichat, we understand that in high-throughput smart manufacturing, even a microsecond of unscheduled downtime can disrupt an entire automotive welding cell or automated packaging line. As multi-axis robotic arms execute complex spatial trajectories thousands of times per shift, their electrical infrastructure undergoes immense strain. To support global system integrators, Weichat designs high-performance industrial wire harness assemblies specifically engineered to withstand mechanical stress and maintain pristine data delivery across every moving joint.

The Field Challenges Facing Automation Engineers

When B2B procurement managers and control engineers contact Weichat, they are typically battling three recurring technical vulnerabilities in their automated production setups:

1.Signal Attrition via Micro-Vibrations

Continuous, high-frequency mechanical oscillation exerts severe fatigue on copper pins. Standard modular plugs suffer from microscopic frictional displacement within their housings. This movement breaks physical contact continuity, causing intermittent packet drops, PLC (Programmable Logic Controller) timing faults, and unexpected emergency line stops.

2. Chemical Embrittlement and Fluid Ingress

Robotic joints operating in CNC machining or stamping facilities are constantly exposed to flying sparks, atomized cutting fluids, cooling lubricants, and hydraulic oils. Standard commercial-grade cables absorb these chemical agents, causing the protective insulation to become brittle, crack, and allow fluids to penetrate, leading to short circuits.

3 Electromagnetic Noise Interference (EMI)

Modern factories are packed with high-voltage servo motors and heavy variable frequency drives (VFDs) that radiate massive electronic noise. Without comprehensive, unbroken shielding running along the robotic arm, this induced EMI distorts delicate sensor feedbacks and vision-system data streams, causing alignment or structural errors.

The Weichat Bespoke Connectivity Solution

To solve these systemic field challenges, Weichat delivers a fully integrated, factory-molded industrial connector wire harness assembly architecture.

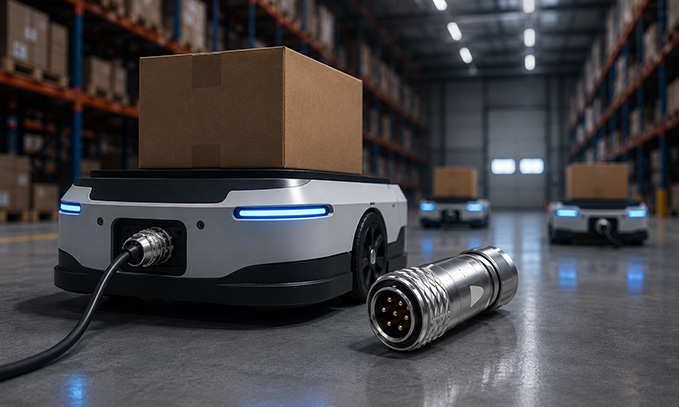

Threaded Coupling Locks for Mechanical Isolation

Weichat’s custom wire harness configurations utilize precision-engineered, circular threaded locking mechanisms. The physical lock ensures that all mechanical and torsional stresses generated during 360-degree joint rotations are entirely absorbed by the rugged outer housing rather than the fragile inner contact pins, ensuring an unbroken connection matrix.

Advanced Polyurethane (PUR) Outer Jacketing

To resist aggressive industrial fluids, our molded cable assemblies utilize high-grade Polyurethane (PUR) and specialized chemical-resistant elastomers. These materials completely prevent the absorption of petroleum-based lubricants and synthetic coolants, keeping the wire harness flexible and crack-free over millions of bending cycles.

360-Degree Braided Shielding for Noise Immunity

Weichat integrates an advanced shielding layer consisting of individual foil wraps over data pairs, covered by a high-density, tinned copper braided shield. This matrix grounds directly through the metallic connector housing, forming an unbroken Faraday cage that completely insulates weak sensor currents from surrounding factory EMI.

Manufacturing Quality and Proven ROI

Rooted in an engineering and manufacturing heritage dating back to 2006 and formally incorporated in 2016, Weichat combines a decade of corporate manufacturing expertise with state-of-the-art automated testing. Deploying our specialized robotic wire harness assemblies across client production facilities has yielded definitive operational outcomes:

Flawless PLC Data Transmission: Zero registered data drops or emergency stop faults over 18 months of intensive 3-shift operations.

Extended Service Life: Weichat’s pre-molded PUR assemblies last up to four times longer than traditional field-terminated lines before requiring routine inspection.

Rapid Component Swap-Out: Our quick-mating circular architecture reduces component replacement windows from 45 minutes down to under 5 minutes during scheduled maintenance.

Don’t compromise your automation efficiency with low-grade connectivity hardware. Partner with Weichat to future-proof your robotic production lines with chemically stable, mechanically isolated wire harness assemblies built for continuous industrial performance. Contact our engineering team today using your corporate email address to request a detailed technical consultation or a custom sample layout.
