In modern telecommunications infrastructure, routing high-density power and data lines to the network edge requires absolute physical layer security. A leading regional telecom infrastructure contractor in Southern Europe was executing a massive rollout of Fiber-to-the-Antenna (FTTA) micro-base stations and remote radio units (RRUs). The project demanded the deployment of hundreds of compact, pole-mounted optical distribution cabinets and outdoor telecommunication enclosures across diverse geographic zones—ranging from high-humidity coastal corridors to exposed mountain ridge repeating stations.

To power these dense cluster networks and distribute signals efficiently, engineers utilized a centralized "1-in, multi-out" distribution architecture. The primary engineering directive was clear: deliver uninterrupted power and high-speed data feeds from a single heavy-gauge trunkline into multiple distributed antenna nodes, while maintaining a minimum 15-year operational lifecycle without active maintenance interventions. To achieve this, the contractor needed a heavy-duty, multi-port environmental barrier to house the parallel branching splices.

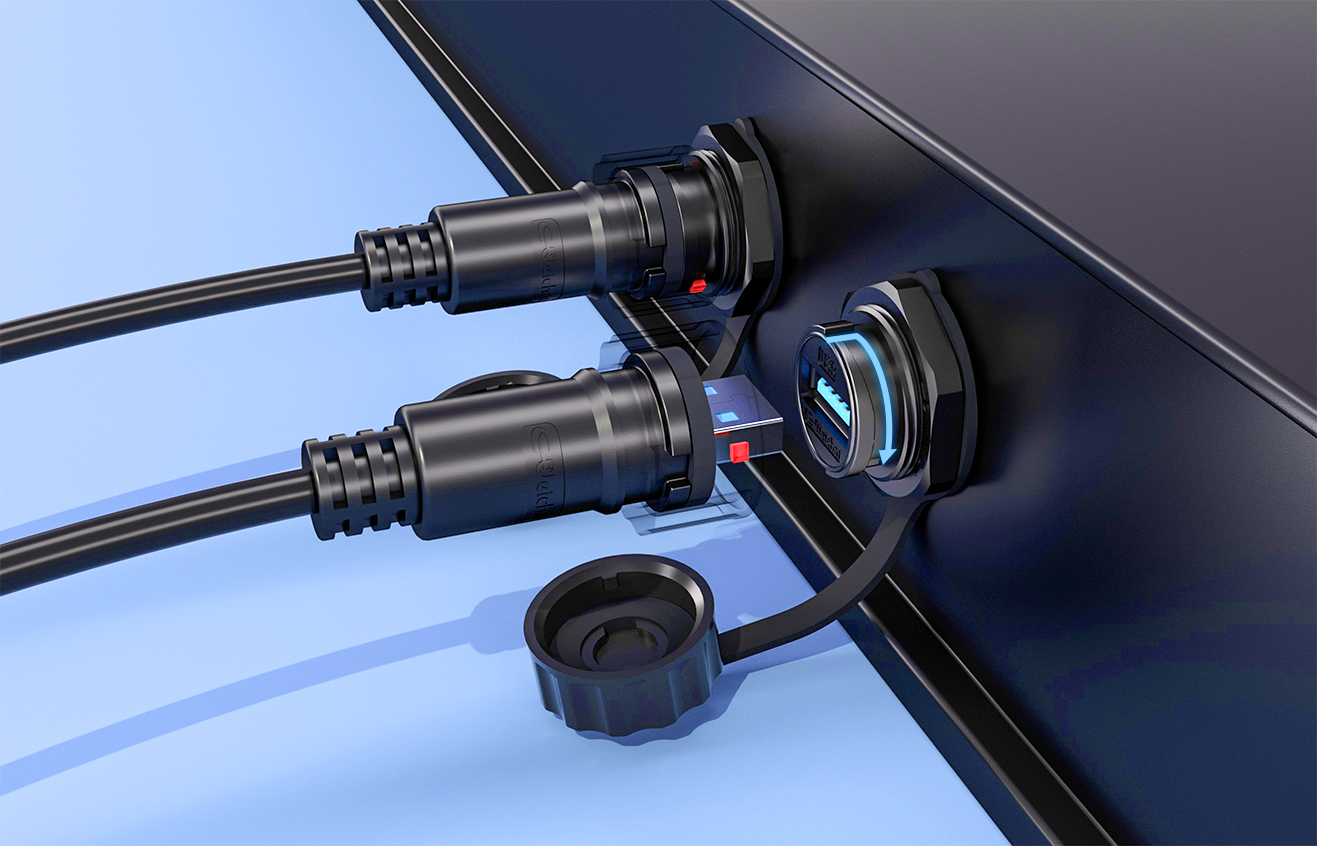

Waterproof USB-C Connector

The Core Technical Challenges & Industry Pain Points

During the initial piloting phase, the field engineering teams encountered severe operational bottlenecks that threatened project timelines and inflated the total cost of ownership (TCO):

The Nightmare of Trunkline Splicing and Cable Cutting: Traditional outdoor parallel wiring methods require field technicians to completely cut the main backbone power supply cables to create a parallel branch. Splicing heavy-gauge lines inside a cramped space is extremely time-consuming. In outdoor environments, this method significantly increases field labor hours and labor costs. More importantly, breaking the integrity of the main trunk cable introduces a permanent point of vulnerability for moisture intrusion.

Vapor Ingress via Multi-Cable Openings: In a multi-port distribution hub (ranging from a 2-way, 3-way, up to a 10-way extension layout), managing multiple incoming and outgoing cables is a massive sealing hazard. Standard distribution boxes rely on generic, separate rubber cable glands. Under extreme temperature fluctuations, the different expansion rates between the plastic enclosure shell, the rubber glands, and the cable jackets create microscopic tracking paths, drawing moisture and corrosive airborne salt spray directly into the terminal blocks.

Vibration and Mechanical Pull-Out: Telecom towers and utility poles are subject to constant micro-vibrations from high wind loads. Traditional snap-on terminal boxes or push-fit enclosures often suffer from mechanical relaxation over time. Without a robust mechanical locking device, these constant physical vibrations cause internal wiring terminals to back out, resulting in localized arcing, sudden impedance spikes, and catastrophic network downtime.

The E-Weichat Interconnect Solution

To address these critical field vulnerabilities, E-Weichat engineered a comprehensive, plug-and-play branching ecosystem utilizing our heavy-duty IP68 Waterproof Junction Box configured with custom 2-way to 10-way multi-port branching kits, combined with factory-terminated cable with plug connector assemblies.

The Central Hub: High-Capacity IP68 Waterproof Junction Box

E-Weichat deployed specialized, multi-port waterproof enclosures constructed from UV-stabilized, impact-resistant Polyamide 66 (PA66).

Innovative "No Cable Cutting" Architecture: The internal terminal block of the E-Weichat junction box supports a continuous main busbar design. Technicians no longer need to cut the main backbone supply cable; they simply strip a small section of the outer jacket and clamp it directly onto the main bridge. This preserves the structural integrity of the main line while enabling clean 2-way to 10-way extensions with absolute ease.

Integrally Molded Multi-Hole Gaskets: Rather than relying on separate individual cable glands that double the risk of leakage, E-Weichat utilizes an advanced integrally molded gasket system. The multi-hole compression block is molded as a single unified component that perfectly matches the housing profile, ensuring uniform radial compression across all cable entries and maintaining a certified IP68 underwater protection rating.

The Secure Drop-Line Connection: Waterproof Screw Connector Architecture

For the outgoing branch lines feeding the individual antenna units, the system relies on high-torque waterproof screw connector couplings linked to pre-molded cable with plug connector assemblies.

Vibration-Proof Screw Locking: The terminal plug uses a precision threaded coupling collar. Once the technician connects the drop-line to the multi-port hub, the heavy-duty waterproof screw connector mechanism is hand-tightened to lock the coupling permanently. This physical thread lock prevents any accidental disengagement caused by wind shear or tower sway.

Factory-Overmolded Quality: By substituting manual field-wired plug assembly with E-Weichat’s pre-terminated cable with plug connector cordsets, the contractor completely removed human error from the sealing equation. Every connection arrived on-site pre-tested for insulation resistance and watertightness.

Real-World Field Results & Return on Investment (ROI)

By transitioning from traditional manual cable cutting and individual gland splicing to E-Weichat's integrated IP68 multi-port connection system, the telecommunications contractor achieved remarkable improvements across all key performance indicators:

Installation Time Per Branching Node: Reduced from 50-70 minutes (due to manual trunkline cutting and individual gland assembly) down to less than 8 minutes with the E-Weichat multi-port "no-cut" system.

Field Tools Required: Traditional parallel wiring required heavy cable cutters, multiple torque wrenches, and separate gland tools. The E-Weichat system requires minimal standard tools because the main line clamps down without cutting, and branch lines secure via hand-tightened threaded collars.

Long-Term Sealing Consistency: Traditional multi-gland entries resulted in highly variable sealing quality based on field conditions. The E-Weichat system provides an absolute, factory-molded IP68 underwater defense layer across all 2-10 way ports simultaneously.

Network Maintenance Invocations: Traditional setups suffered high ground-fault failure rates due to moisture creep into the branch enclosures. The new configuration achieved zero moisture ingress or signal disruption incidents over a 24-month field tracking window.

The implementation allowed the contractor to slash field labor expenses by over 60%, successfully accelerating the network commissioning timeline. More importantly, by preventing moisture ingress and eliminating the thermal breathing vacuum traps, the network experienced zero localized outages, guaranteeing the end-users a highly stable, uninterrupted data stream.

For modern telecommunications infrastructure providers, the physical connection layer is just as critical as the digital routing protocols. E-Weichat’s architectural lineup of IP68 waterproof junction boxes, integrated waterproof screw connectors, and pre-engineered cable with plug connector assemblies proves that distributing high-density power and data through harsh outdoor environments does not require sacrificing field efficiency. By eliminating the need to cut main trunklines and unifying multi-port seals into factory-molded components, E-Weichat ensures that your outdoor network remains dry, secure, and online permanently.
