A leading European manufacturer of advanced clinical patient monitoring interfaces and high-definition diagnostic imaging systems was developing a next-generation bedside multi-parameter monitor. The system required a seamless, multi-channel interconnection to transmit critical biosensor data, high-resolution video feeds, and low-voltage power from patient-attached probes to the central processing console.

The engineering team faced severe constraints. First, the interconnect solution had to withstand rigorous clinical sterilization protocols, including repeated chemical wipe-downs with medical-grade isopropyl alcohol and occasional autoclave exposure, without suffering material degradation. Second, because clinical staff frequently attach and detach sensor probes in high-stress emergency environments, the connection mechanism required an intuitive, blind-mating design that prevented accidental disconnections. Third, the electrical integrity had to maintain absolute shielding against electromagnetic interference (EMI) generated by surrounding operating room machinery, ensuring zero data loss for micro-volt biosensor signals.

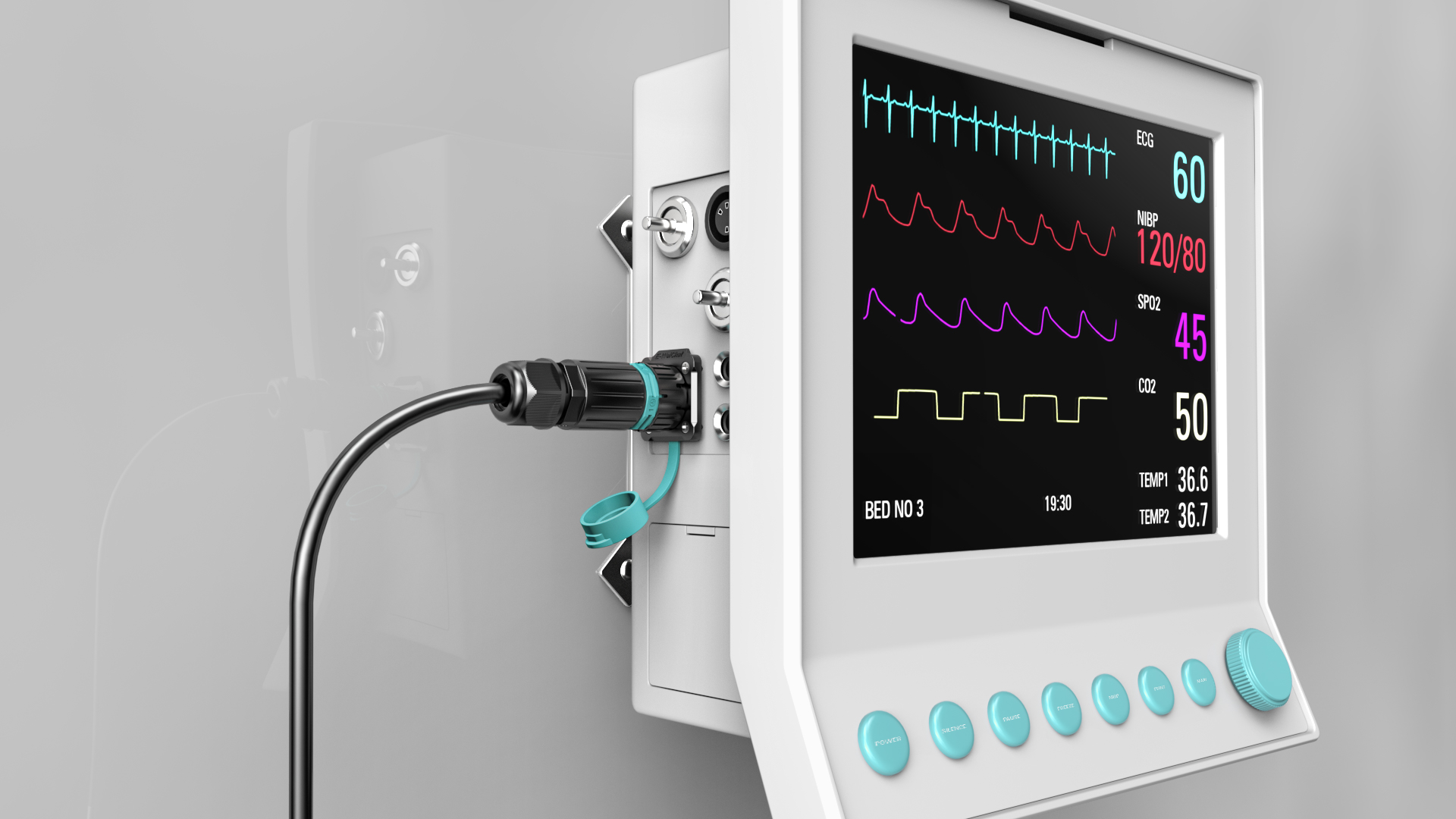

Panel Mount Connector

Tailored Technical Interconnect Solution

The client, an international innovator in surgical endoscopy, was engineering a next-generation FDA Class II laparoscopic visualization platform. The design matrix required an ultra-flexible umbilical cable assembly capable of transmitting raw 4K UHD video data simultaneously with cold-light fiber signals and power routing. However, the engineering team encountered two major bottlenecks that threatened their product launch schedule:

To ensure uninterrupted biosensor signal transmission, the internal contact configuration features up to 14 gold-plated precision pins with a high-density pitch. The contacts deliver an exceptionally low contact resistance of less than 5 milliohms. A built-in 360-degree EMC shielding sleeve was integrated into the chrome-plated brass collet nut system, neutralizing cross-talk and ambient EMI. The plug and socket interfaces are rated at IP67 and IP68 water ingress protection when mated, preventing body fluids, saline solutions, and sanitizing liquids from penetrating the conductive core. Furthermore, the mechanical structure incorporates clear color-coding and alignment keyways to facilitate error-free blind mating by medical personnel.

Implementation Results and Long-Term Value

The integration of our specialized medical push-pull connectors yielded outstanding performance benchmarks during clinical validation phases:

Zero Signal Inversion: The 360-degree EMC shielding eliminated artifact noise in electrocardiogram (ECG) and pulse oximetry (SpO2) data streams, ensuring perfect diagnostic precision.

Sterilization Compatibility: Autoclave (134 degrees C Steam), EtO (Ethylene Oxide), Gamma Radiation, and Low-Temperature Hydrogen Peroxide Plasma.

Extended Operational Lifespan: The premium gold-plated contacts successfully surpassed 5,000 mating cycles without exhibiting measurable mechanical wear or increase in electrical contact resistance.

Sterilization Resilience: After undergoing hundreds of intensive chemical sterilization and wipe-down test cycles, the high-performance plastic housings maintained total structural integrity, completely free from micro-cracking or discoloration.

Enhanced Patient Safety: The secure push-pull mechanical latching mechanism successfully eliminated accidental cable disconnections caused by patient movement or staff interference, significantly improving bedside operational safety.
