As the global transition toward renewable energy sources accelerates, utility-scale solar photovoltaic (PV) power plants and centralized battery energy storage systems (BESS) are scaling up to unprecedented capacities. To optimize power transmission efficiency and minimize line losses across massive solar rows and localized battery storage enclosures, the industry has universally shifted toward higher operating voltages, with 1500V DC becoming the standard benchmark for modern solar string inverters, combiner boxes, and battery management systems.

At these ultra-high voltage and elevated current levels, the physical layer connectivity infrastructure faces immense stress. These decentralized clean energy networks are strategically positioned in unconditioned, geographically hostile environments—ranging from arid desert basins with extreme solar irradiance to high-salinity coastal plains. Maintaining continuous, zero-loss power distribution without insulation degradation or thermal runaway is paramount for grid stability. This application case study examines how the integration of industrial-grade 1500V DC single-pin photovoltaic and high-current energy storage connectors resolves critical high-voltage physical-layer vulnerabilities, ensures maximum flame-retardant safety, and protects the twenty-five-year operational lifespan of next-generation renewable energy infrastructure.

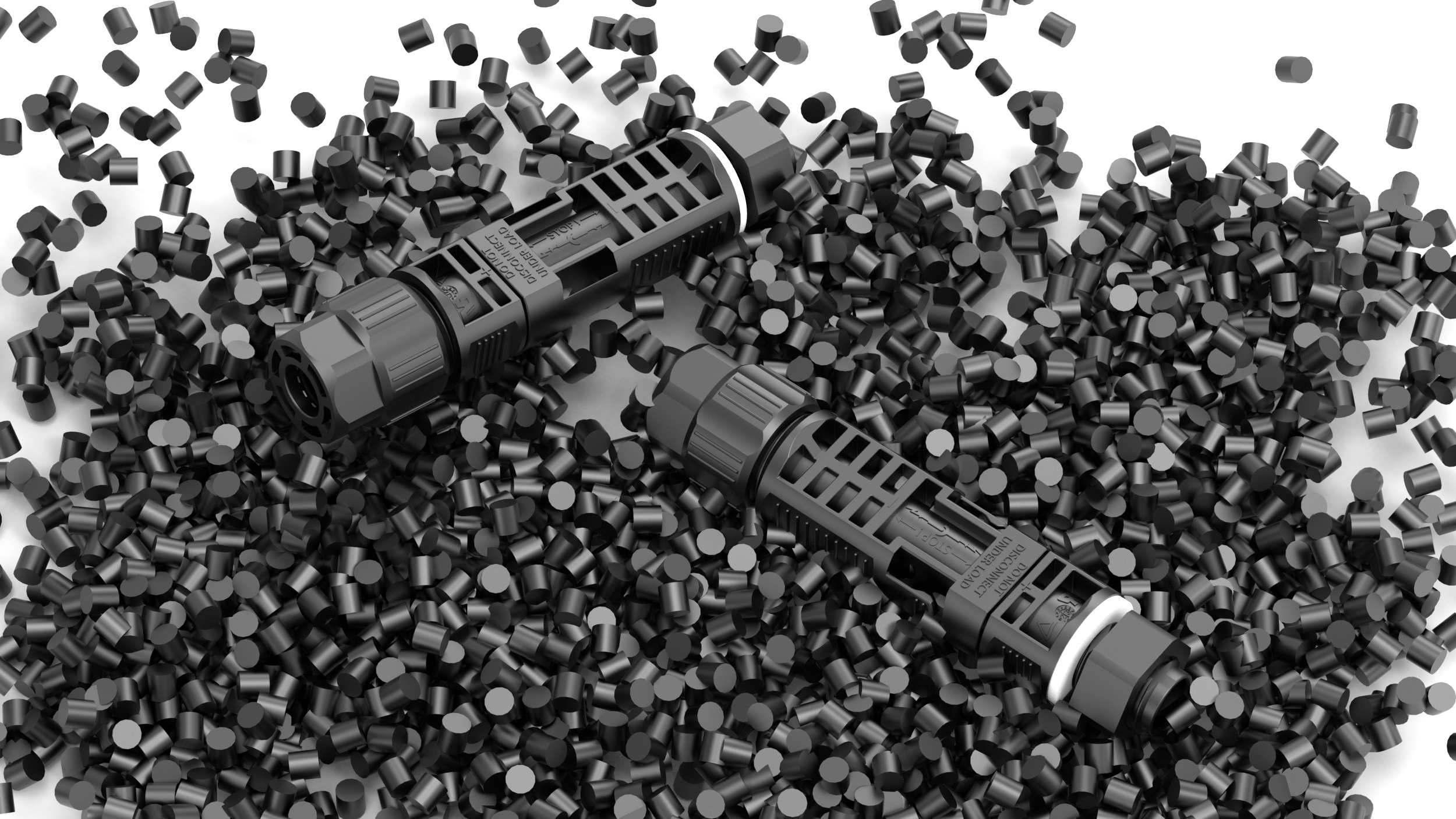

Solar Connectors MC4

Field Challenge Analysis: Environmental and High-Voltage Stressors on PV Infrastructure

A prominent international EPC contractor managing a newly commissioned five-hundred-megawatt solar facility integrated with a centralized energy storage bank reported recurrent localized system shutdowns, insulation resistance faults, and inverter error codes across multiple solar rows and battery container connections.

High-Voltage and Environmental Stressors:

Direct Current Arc Risks and Insulation Breakdown: Operating at sustained 1500V DC loads creates a high risk of electrical arcing if the connection interface suffers any micro-gaps or material fatigue. Standard plastic or low-grade nylon connectors failed to maintain absolute dielectric isolation under peak solar generation hours, leading to localized tracking grounding faults that automatically tripped string inverters.

Solar Irradiance and Thermal Runaway: The connector housings on solar combiner boxes and battery cabinets were continuously exposed to intense ultraviolet radiation and ambient temperatures exceeding forty-five degrees Celsius. Under sustained high-current throughput, standard connector materials suffered severe thermal accumulation and accelerated UV embrittlement, causing structural micro-cracks that compromised the structural integrity of the interface.

Micro-Particle Sand Ingress and Contact Resistance: High-velocity desert windstorms carried fine, abrasive dust that bypassed standard friction-fit seals. Once inside the connector housing, these particulates scraped the specialized silver or tin plating off the high-conductivity internal single-pin contacts. This increased contact resistance, causing severe localized heating and thermal damage to the internal contact grid.

High-Pressure Washing and Condensation Intrusions: To maintain solar panel efficiency, the site utilized automated high-pressure water washing systems. Standard IP67 connectors failed to withstand the targeted high-pressure, high-temperature water jets, allowing moisture bypass that caused destructive short circuits inside the high-voltage DC tracking lines and battery management system modules.

By replacing legacy hardwired junctions with pre-tested heavy-load quick connectors, the facility cut on-site deployment latencies by an estimated 75 percent, allowing for rapid commissioning. The superior contact surface retention prevented localized hotspots, ensuring uniform current distribution across the entire battery infrastructure. This successful project proves that utilizing heavy-duty, high-protection quick-mating connectors is a vital operational strategy to maximize daily megawatt yields and secure the structural longevity of modern clean energy storage grids.

Quantifiable Performance and Financial ROI

An analysis conducted twelve months post-installation across the upgraded 1500V DC solar rows and battery storage banks demonstrated a dramatic improvement in plant performance and asset protection:

Connection-Related Grounding Faults: Dropped from an average of 16.8 percent annually per tracking block down to 0.0 percent, achieving a complete elimination of high-voltage insulation tracking faults through the connection ports.

Field Installation Efficiency: The quick-mating single-core design reduced terminal connection times from twenty-five minutes per box down to under four minutes, resulting in a substantial reduction in labor expenses during the construction phase.

Energy Harvest Optimization: By eliminating localized overheating and intermittent resistance spikes, the high-voltage transmission paths maintained optimal electrical efficiency, maximizing the overall power injection into the utility grid.

Lifecycle Alignment: The UL94-V0 flame-retardant PC and modified PA66 housings completely eliminated the material cracking cycle associated with standard plastics, extending the projected service life of the connection points to match the full twenty-five-year operational lifecycle of the photovoltaic modules.

Conclusion and Future Industry Outlook

As utility-scale solar and battery energy storage installations expand into increasingly marginal and environmentally severe landscapes, relying on sub-standard physical layer connectivity presents an unacceptable financial risk to asset owners and grid operators. Minor component failures or insulation breakdowns at the high-voltage interface layer ripple upward, causing massive losses in power generation efficiency and inflating long-term operational budgets.Integrating 1500V DC single-pin connectors featuring UL94-V0 PC and modified PA66 housings into solar arrays, decentralized string inverters, and outdoor energy storage stations provides hardware manufacturers and EPC contractors with a robust, resilient field asset. By shielding sensitive electrical contacts from the destructive forces of UV radiation, moisture, and extreme thermal loads, these high-performance industrial interfaces ensure that the global clean energy transition remains stable, reliable, and highly profitable for decades to come.
