The rapid evolution of minimally invasive surgery (MIS) demands high-definition, zero-latency visual feedback loops. Modern high-resolution endoscopic cameras and surgical imaging carts process massive data streams that require uncompromised signal fidelity. However, the primary operational challenge for these medical devices lies not within the software algorithms, but at the physical interface: the interconnect system.

Medical interconnects must simultaneously safeguard delicate digital signals while surviving the brutal chemical and thermal stress of repeated clinical sterilization cycles. This application case study analyzes how a tier-one medical device OEM successfully eliminated signal degradation and premature cable failure in their next-generation endoscopy platform by integrating medical-grade, ISO 13485 compliant medical cable assemblies and high-performance autoclavable circular connectors.

Clinical and Engineering Challenges in Surgical Environments

The client, a prominent European developer of high-definition surgical endoscopy towers, was experiencing localized field failures during clinical trials of their new 4K UHD visualization system. The umbilical cable assembly, which bridges the hand-held camera head to the primary processing unit, was suffering from intermittent data packet loss and physical housing degradation after fewer than 50 sterilization cycles.

A deep-dive engineering audit identified three critical environmental and operational bottlenecks:

Thermal and Chemical Sterilization Fatigue: The clinical staff utilized steam autoclaving (up to 134°C) and aggressive hydrogen peroxide gas plasma sterilization to maintain strict hygiene standards. Standard commercial connectors experienced micro-cracking in their plastic shells and insulation breakdown.

Fluid Ingress and Contamination: During surgical procedures, equipment is routinely exposed to saline splashes, bodily fluids, and intensive chemical wipe-downs. Moisture tracking into the internal contact pins caused impedance fluctuations and localized short circuits..

Critical Patient Safety Compliance: The interconnect system required stringent dielectric insulation to meet IEC 60601-1 medical safety standards, specifically demanding high touch-proof protection and minimal leakage current to ensure absolute patient and operator isolation.

Technical Solution: Implementing High-End Medical Interconnects

To address these multi-layered compliance and durability issues, the engineering team re-engineered the camera-to-tower interface. They replaced the legacy connectors with specialized IP68 waterproof connectors for medical imaging equipment, featuring a high-density, autoclavable circular design.

The overhauled architecture implemented a dual-connector configuration:

- Camera Head Interface: An ultra-reliable autoclavable circular connector in surgical devices, engineered with premium polyetheretherketone (PEEK) insulators capable of enduring over 2,000 autoclave cycles without dimensional warping.

- Console Input Hub: A customized panel-mount receptacle paired with ISO 13485 compliant medical cable assemblies, featuring medical-grade silicone jackets and integrated EMI/RFI shielding grids.

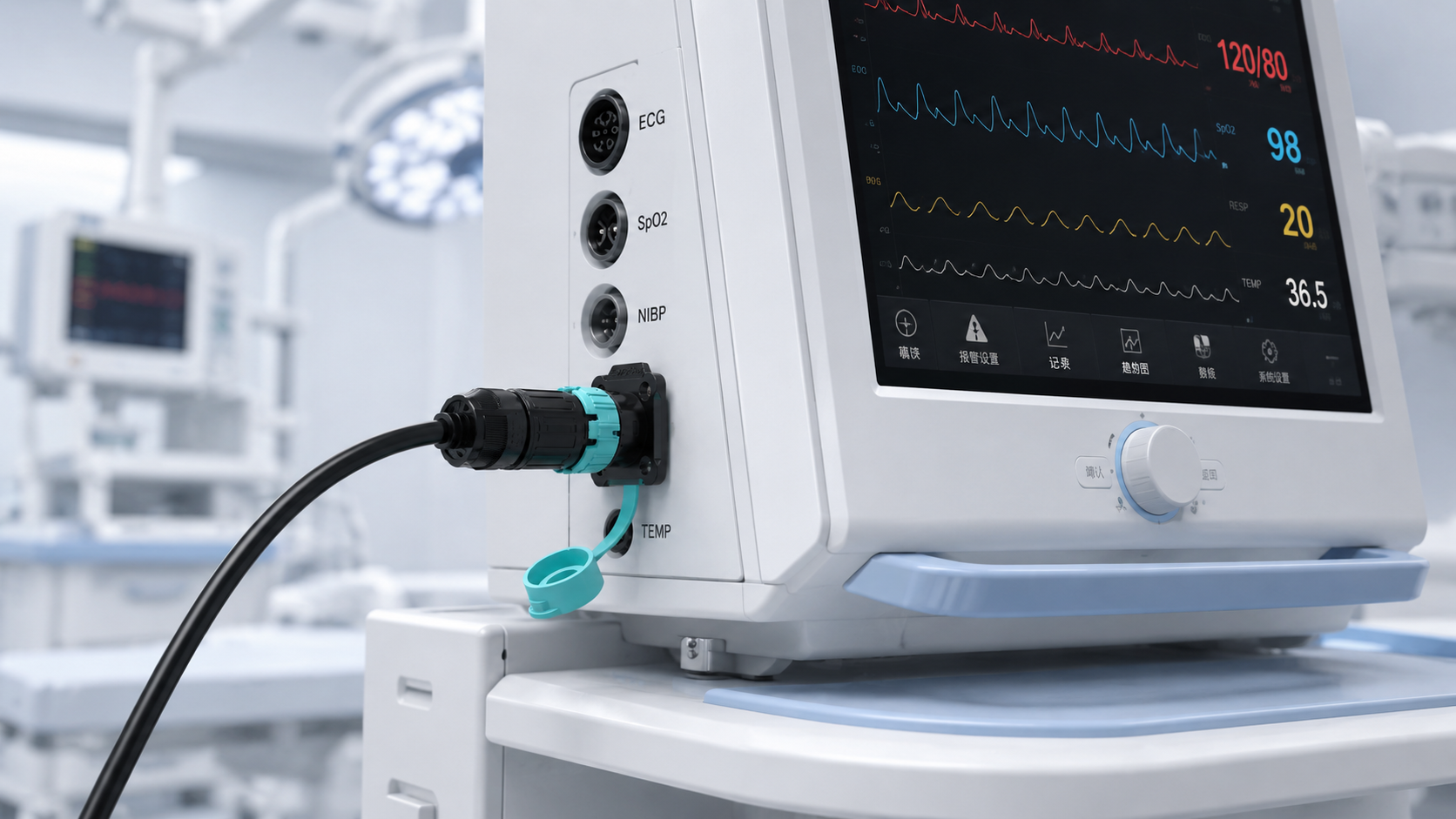

Waterproof Plug Connectors

Technical Engineering Advantages:

Specialized Autoclave and Chemical Resilience: The PEEK and chrome-plated brass housing configuration maintains structural integrity through relentless thermal expansion and contraction cycles, preserving the internal seal perimeter.

True IP68 Submersion Protection: Utilizing precision-molded Viton O-rings and internal potting, the assembly achieves an IP68 waterproof rating. It blocks fluid tracking even when fully immersed in chemical disinfection baths.

High-Density Signal and Power Integration: The interface accommodates a hybrid contact layout. It routes high-speed differential data lines alongside low-voltage power tracks, using gold-plated solid copper alloy contacts to keep contact resistance below 5mOhm.

Measurable Clinical and Operational Outcomes

Following the integration of the advanced medical-grade circular connectors, the endoscopy platform underwent rigorous validation testing, yielding exceptional performance metrics:

Extended Lifecycle Durability: The new interconnect assemblies successfully surpassed 1,500 autoclave sterilization cycles with zero structural degradation, extending the standard cable lifespan by 400%.

Flawless 4K Signal Transmission: The comprehensive EMI shielding and low contact resistance completely eliminated video artifacting and data latency, ensuring crystal-clear visualization during critical surgical maneuvers.

Regulatory Approval Acceleration: Utilizing components manufactured under strict ISO 13485 quality management systems streamlined the client's FDA 510(k) and CE MDR compliance documentation, significantly reducing time-to-market.

Conclusion and Strategic Market Outlook

As surgical robotics and high-definition diagnostics continue to dominate modern operating rooms, component reliability dictates clinical success. Investing in robust, sterilization-ready interconnect frameworks prevents costly equipment downtime and ensures unyielding patient safety. For medical device manufacturers seeking to optimize diagnostic clarity and device longevity, incorporating dedicated IP68 waterproof connectors for medical imaging equipment is a vital design strategy that meets both strict regulatory mandates and demanding clinical realities.
