An international green energy utility developer constructing a decentralized 50MW rooftop photovoltaic (PV) array paired with a centralized Battery Energy Storage System (ESS) required an ultra-reliable power distribution layout. The facility utilized high-density lithium iron phosphate (LFP) battery banks integrated into heavy-duty outdoor containers. To maintain maximum round-trip energy efficiency, the multi-channel DC power lines from separate battery racks needed to be grouped and routed to the main power conversion system (PCS) with absolute minimal voltage drops.

Utility-scale battery grids operate under highly demanding electrical and environmental conditions. During rapid charge and discharge cycles, heavy current surges generate substantial thermal stress across the electrical paths. Traditional bolted busbars and screw-clamping terminals inside packed junction blocks require extensive manual wire stripping and create significant installation bottlenecks. More importantly, loose manual connections under continuous vibratory loads can cause micro-arc tracking, thermal creep, and catastrophic insulation breakdown, creating severe safety risks under scorching summer ambient heat.

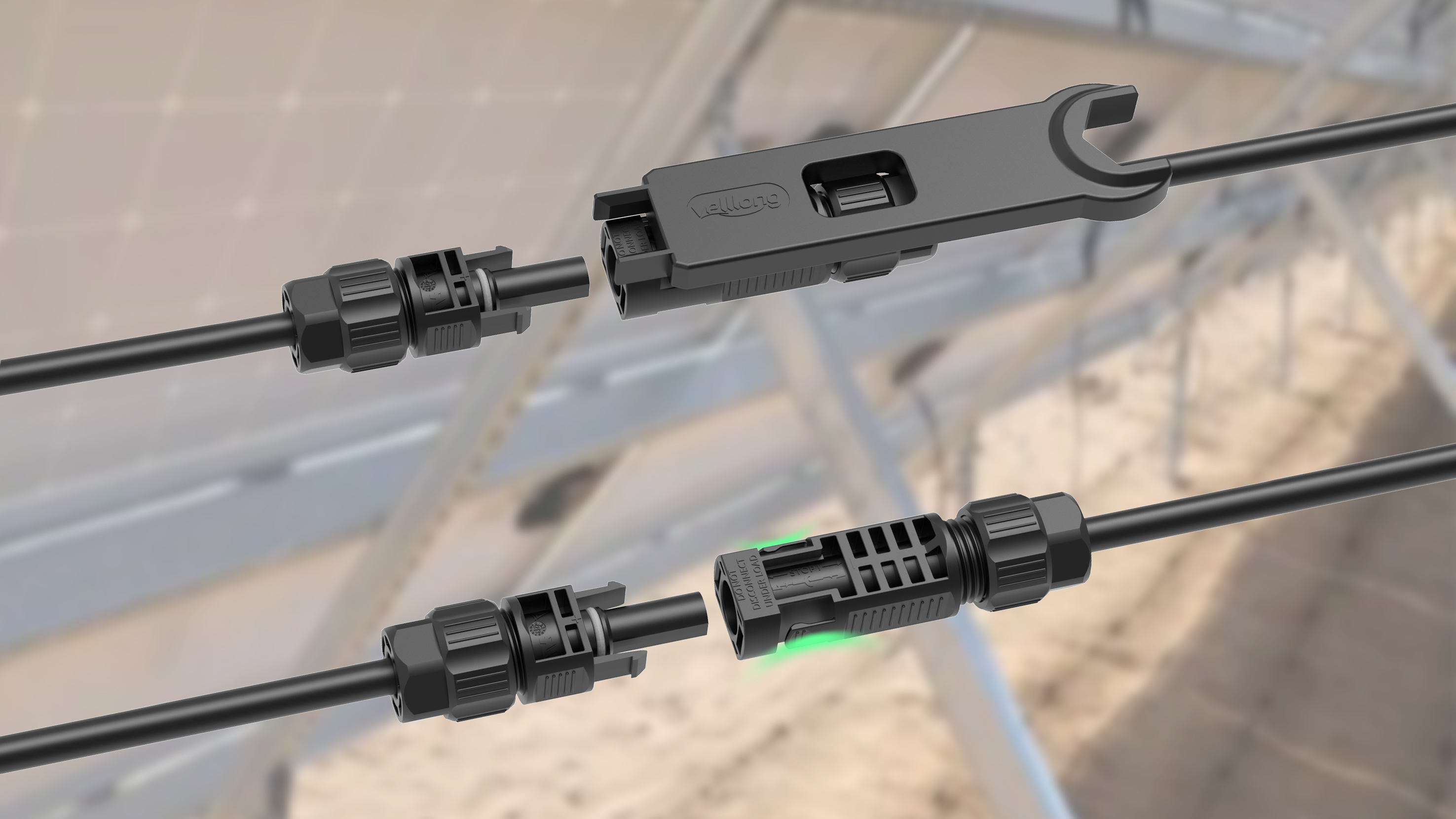

pv connector

The Solution: Heavy-Duty Quick-Pluggable Power Splice Framework

To overcome these structural alignment and thermal efficiency hurdles, the design engineers deployed heavy-duty, multi-pole inline quick connectors featuring specialized high-conductivity copper contacts. These quick-mating components were integrated directly into the battery module outputs and external power distribution panels.

Key Engineering Milestones Achieved:

Massive Ampacity & Low Resistance: The connection interface successfully managed continuous heavy DC current rails without thermal degradation, dropping contact impedance to an ultra-low threshold to fully prevent energy loss over long cable runs.

Advanced Structural Armor: Constructed from premium fiberglass-reinforced engineering plastics passing strict UL94 V-0 self-extinguishing criteria, the rugged housings maintained full mechanical rigidity across extreme temperature bounds of minus 40C up to plus 105C.

Submersible Weatherproofing: The IP68 marine-grade water seal completely isolated the internal copper nodes from ambient moisture, humidity accumulation, and seasonal heavy rainstorms, eliminating systemic earth faults.

By replacing legacy hardwired junctions with pre-tested heavy-load quick connectors, the facility cut on-site deployment latencies by an estimated 75 percent, allowing for rapid commissioning. The superior contact surface retention prevented localized hotspots, ensuring uniform current distribution across the entire battery infrastructure. This successful project proves that utilizing heavy-duty, high-protection quick-mating connectors is a vital operational strategy to maximize daily megawatt yields and secure the structural longevity of modern clean energy storage grids.
