High-Current IP68 Waterproof Inline Connectors for Solar PV

High-Current IP68 Waterproof Inline Connectors for Solar PV-New Energy Industry

Utility-scale solar farms are shifting toward intelligent solar PV tracking systems that continuously adjust panel angles to maximize solar radiation absorption. These dynamic tracking networks require constant power and signal feeds across expansive, exposed outdoor grids. A major renewable energy developer faced repeated system maintenance shutdowns due to wire splice degradation in their high-current DC power distribution lines.The standard wire joints previously installed by a contractor suffered from UV degradation and ozone cracking, which allowed airborne sand and moisture to compromise the copper terminal block. The client urgently needed a heavy-duty, solar PV tracking system connector capable of safely handling up to 32A/450V while operating reliably in arid desert tracking fields subject to extreme temperature swings.

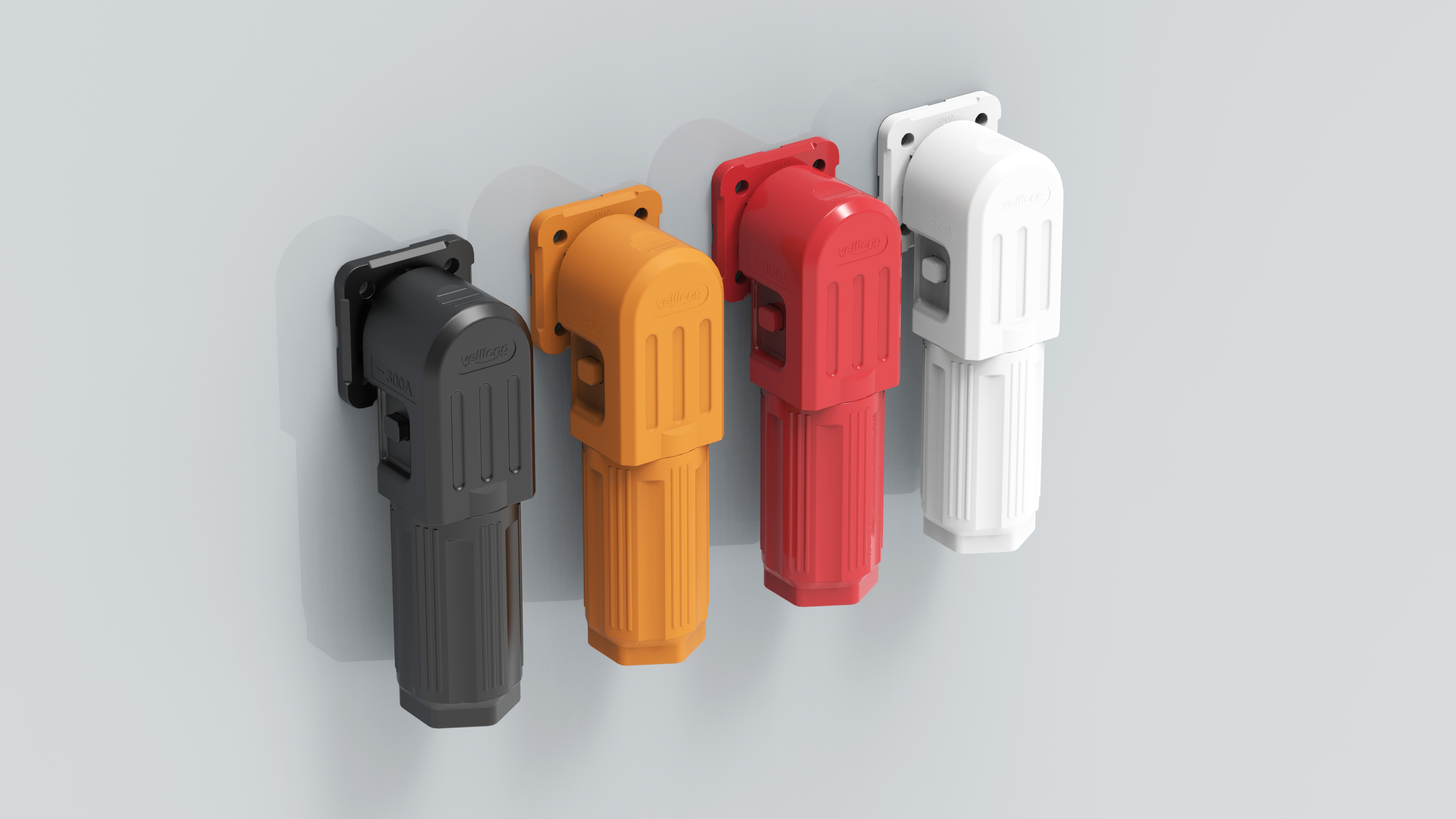

Weichat engineered a robust, field-deployable high-current waterproof inline connector utilizing an ultra-tough, fiber-reinforced Polyamide 66 (PA66) enclosure. Engineered with an integrated UV-resistant outdoor power splitter architecture, this junction configuration provides a 1-input to multi-output distribution array to clean up complex parallel cabling fields.The internal layout features thick, screw-locking brass blocks that accept wire diameters up to 4.0 mm² to accommodate high-current loads without thermal build-up. To ensure permanent hermetic isolation from blowing desert dust and flash flooding, the enclosure utilizes premium compression glands with dual-layer silicone gaskets, achieving certified IP68 water and dust ingress protection.

Measurable Results & Field Performance

By integrating Weichat's specialized heavy-duty renewable energy plug infrastructure, the solar facility successfully turned around its operational reliability:

Maximized Grid Uptime: The utility-scale solar facility achieved a 99.9% power grid transmission uptime, completely eliminating tracking system faults due to cable connection failures.

Superior Thermal Performance: Thermal imaging verified that the internal screw terminal connections maintained cool operating temperatures even when running at a continuous 32A electrical load in 45°C ambient desert weather.

Extended Service Life: The UL94-V0 rated PA66 housings showed zero signs of environmental stress cracking or UV fading, ensuring an estimated operational lifespan matching the 25-year lifecycle of the solar panels.

Advantages

Advantage One

Fast and Convenient
Advantage Two

Customization
