IP68 Outdoor LED Connectors & PBT Junction Boxes Case Study

IP68 Outdoor LED Connectors & PBT Junction Boxes Case Study-Lighting Industry

As cities across the globe, particularly in Southeast Asia, transition to LED-based Smart City infrastructure, the demand for reliable outdoor connectivity has skyrocketed. Modern street lighting poles are no longer just light sources; they are hubs for 5G small cells, CCTV cameras, and IoT sensors. This complexity requires a robust wiring system that can withstand 24/7 exposure to the elements without triggering circuit failures.

Environmental Hazards & Structural Prerequisites

The decentralized nature of highway luminaire networks requires highly stable branch-wiring connections that can withstand relentless outdoor exposure:

Accelerated Salt-Spray Corrosion: Salt-laden coastal air carries high concentrations of sodium chloride, acting as an aggressive electrolyte that triggers rapid galvanic corrosion on any exposed copper or low-grade metal terminations.

Thermal Inversion and Condensation: Extreme shifts from intense daytime solar radiation to cool night downpours cause localized vacuum pressures inside electrical enclosures, pulling airborne moisture past substandard seals.

Continuous UV Exposure: Unshaded highway installations subject structural plastics to prolonged ultraviolet radiation, causing common polymers to rapidly embrittle, crack, and lose their hydrophobic sealing properties.

The Implementation Blueprint & Material Science Solution

The engineering framework bypassed traditional hard-wired linear splicing altogether, transitioning the entire highway electrical matrix to a modular, decentralized branch-wiring architecture. The implementation utilized structural multi-port T-type splitters and heavy-duty 1-in-multiple-out junction boxes mounted securely inside the base of each municipal lighting column.

Advanced Polymer Sealing & Weatherability

The multi-port junction boxes are molded from high-grade PBT (Polybutylene Terephthalate) resin. PBT exhibits exceptional dimensional stability and tensile strength, showing zero material degradation under intense UV-B radiation or continuous exposure to harsh chemical detergents and coastal salinity. The enclosure compound includes a strict UL94-V0 flame-retardant rating, ensuring that internal electrical arc faults instantly self-extinguish before bridging into catastrophic external structural fires.

Hermetic IP68 Dual Sealing Technology

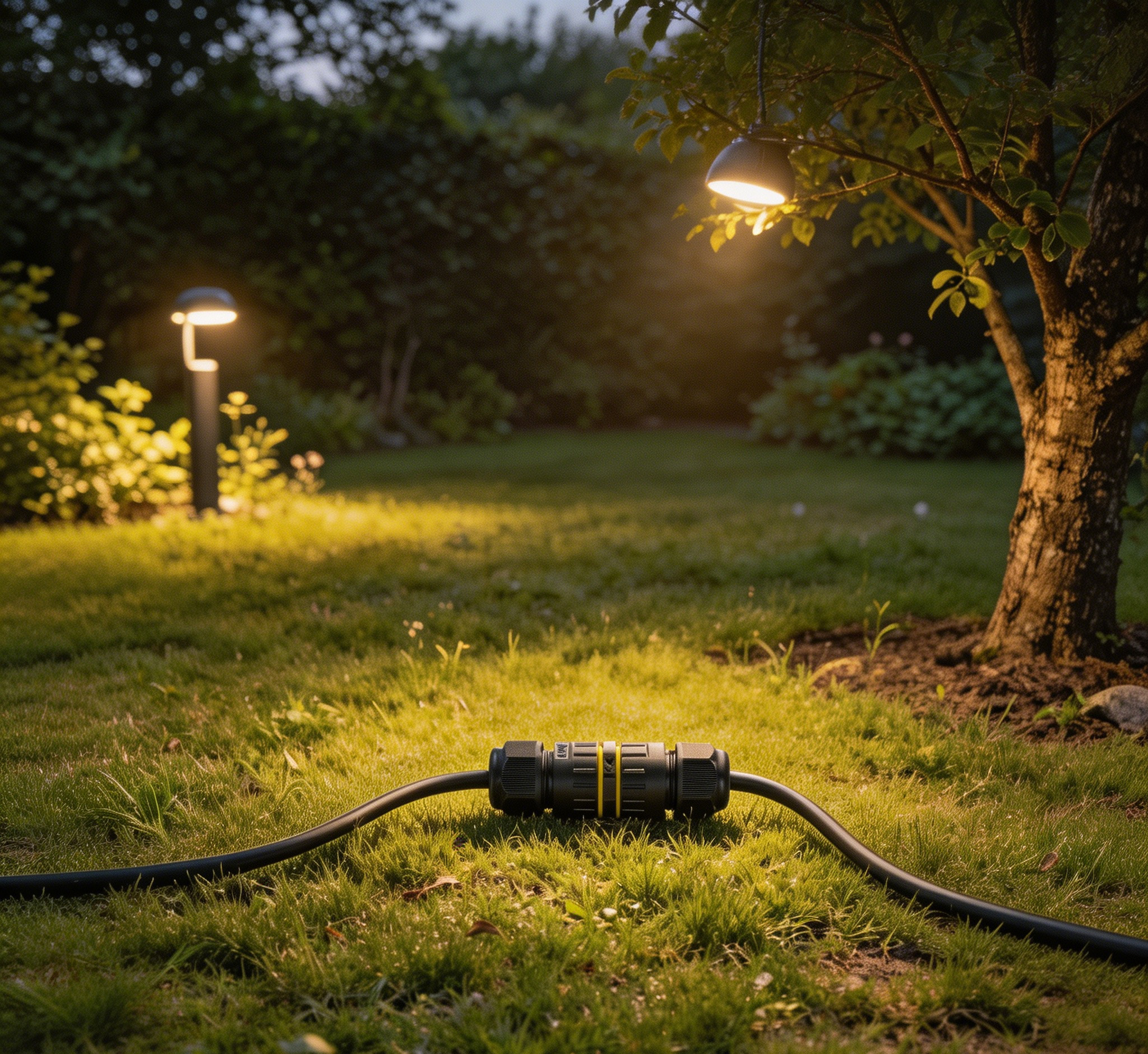

To counteract moisture breathing caused by thermal cycles, the terminal enclosures utilize dual-layer silicone compression gaskets that maintain a gas-tight seal over a wide operating temperature spectrum (-40°C to +85°C). The branching ports connect directly to compact inline circular quick-connect connector adapters. This plug-and-play topology allows field installers to securely couple lighting nodes to the primary power loop with a simple manual twist-lock, ensuring a factory-grade seal without the risk of manual stripping errors on-site.

Quantifiable Field Results & ROIs

The decentralized infrastructure successfully completed two full winter storm cycles with immaculate performance records:

Absolute Moisture Isolation: Post-monsoon physical audits confirmed 100% dry conditions inside all checked PBT enclosures, with zero recorded ground faults across the entire highway grid.

75% Acceleration in Field Deployment: The utilization of pre-wired multi-port splitters allowed installation crews to connect up to five times more lighting fixtures per shift compared to standard junction splicing methods.

Dramatic Operations Savings: The municipal maintenance division reported a 92% drop in emergency call-out dispatches, slashing structural upkeep budgets and maximizing system uptime.
