Connecting High-Voltage Energy Storage To Supply Power

Connecting High-Voltage Energy Storage To Supply Power-New Energy Industry

The rapid growth of renewable energy has driven strong demand for reliable and safe energy storage systems. In this application case, E-Weichat provided a comprehensive range of DC Battery Connectors and Battery Storage Connector solutions for a new energy project integrating photovoltaic generation, battery energy storage, and backup power systems.

Energy storage systems operate as the core link between power generation and power consumption. They must handle high current transmission, frequent charge and discharge cycles, and long-term outdoor or semi-outdoor exposure. Electrical connections within these systems are critical to overall safety, efficiency, and operational stability. Any connector failure can result in power loss, system shutdown, or safety risks.

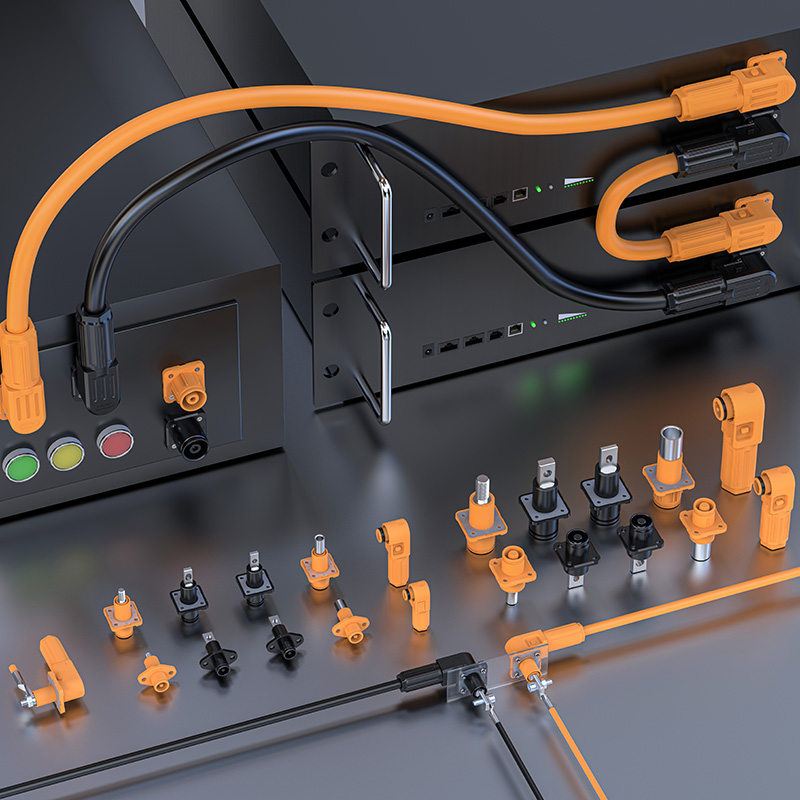

E-Weichat connectors were applied across multiple levels of the energy storage architecture, including battery modules, power conversion systems, and backup power interfaces. The Energy Battery Storage Connector solutions used in this project were designed to support stable DC power transmission while maintaining strong resistance to moisture, dust, and environmental stress. Their robust housings and precision contact structures help ensure consistent electrical performance throughout the system lifecycle.

Within the battery packs, DC Battery Connectors play a vital role in connecting individual battery cells and modules. These connectors must maintain low contact resistance and high current capacity while withstanding thermal variation caused by repeated charge and discharge cycles. E-Weichat connectors are engineered with high-quality conductive materials and secure locking mechanisms to ensure reliable performance under continuous operation.

For system-level backup and power continuity, UPS connector solutions were integrated into the energy storage system. These connectors support seamless power transfer during grid interruptions and ensure that critical equipment remains operational. Their stable connection design reduces the risk of power fluctuation and enhances overall system reliability.

In high-capacity installations, the project required connectors capable of handling elevated voltage and current levels. High Voltage Battery Energy Storage Connector solutions from E-Weichat were selected to meet these demands. These connectors feature reinforced insulation, secure mating structures, and advanced sealing technology to protect against environmental exposure and electrical stress. This ensures safe operation in large-scale energy storage systems used in commercial and industrial applications.

Another important aspect of the project was installation efficiency and long-term maintenance. Energy storage systems are often deployed in modular configurations to allow future expansion. E-Weichat connectors support fast installation and easy replacement, enabling technicians to connect or disconnect battery modules without complex wiring procedures. This reduces installation time, lowers maintenance costs, and improves overall system scalability.

Environmental durability was also a key requirement. Many energy storage systems are installed outdoors or in environments with high humidity, dust, or temperature variation. E-Weichat waterproof connector solutions provide reliable sealing protection, helping prevent corrosion and electrical failure over long operating periods.

By integrating E-Weichat Battery Storage Connector and High Voltage Battery Energy Storage Connector solutions, the project achieved enhanced system safety, improved operational efficiency, and long-term reliability. This application demonstrates how advanced waterproof connector technology supports the growing demand for stable and efficient energy storage solutions in the global new energy market.
