The global transition to renewable energy is fundamentally reshaping how we generate, distribute, and consume power. At the very core of this revolution lies battery energy storage systems (BESS), the critical enablers that mitigate the intermittency of solar and wind power, provide grid stability, and empower energy independence. These systems, ranging from massive grid-scale installations to commercial and residential units, are essentially massive banks of lithium-ion cells that must operate with unwavering reliability and safety.

Within these complex assemblies, the humble electrical connector undergoes a profound transformation into a high-stakes component known as the battery storage connector. This is not a standard link; it is a high-current, high-reliability lifeline designed to handle immense power flows, manage thermal rise, and maintain absolute integrity under constant electrical stress and environmental challenge. A failure here is not merely an inconvenience; it can lead to dangerous arcing, thermal runaway, catastrophic system failure, or worse. Therefore, the battery storage connector emerges as a paramount safety and performance feature, engineered to ensure that the promise of clean, reliable energy is delivered without compromise, 24/7.

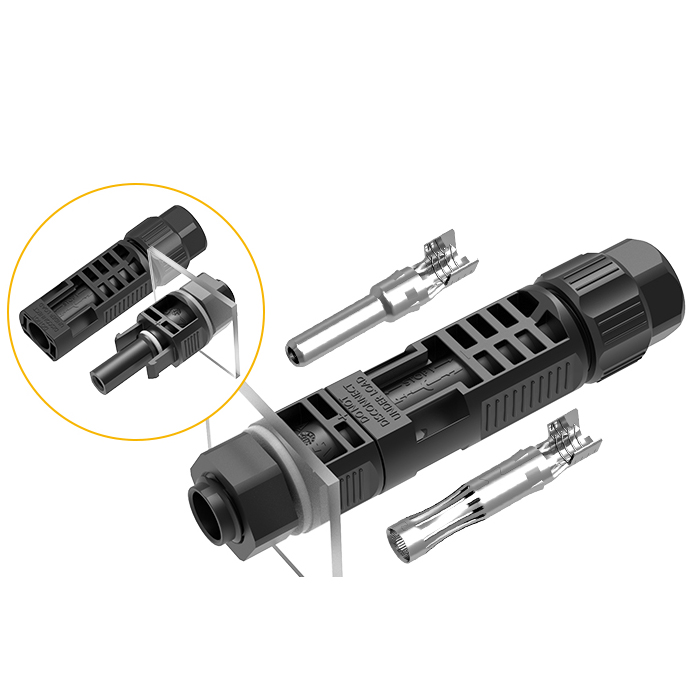

PV Connectors

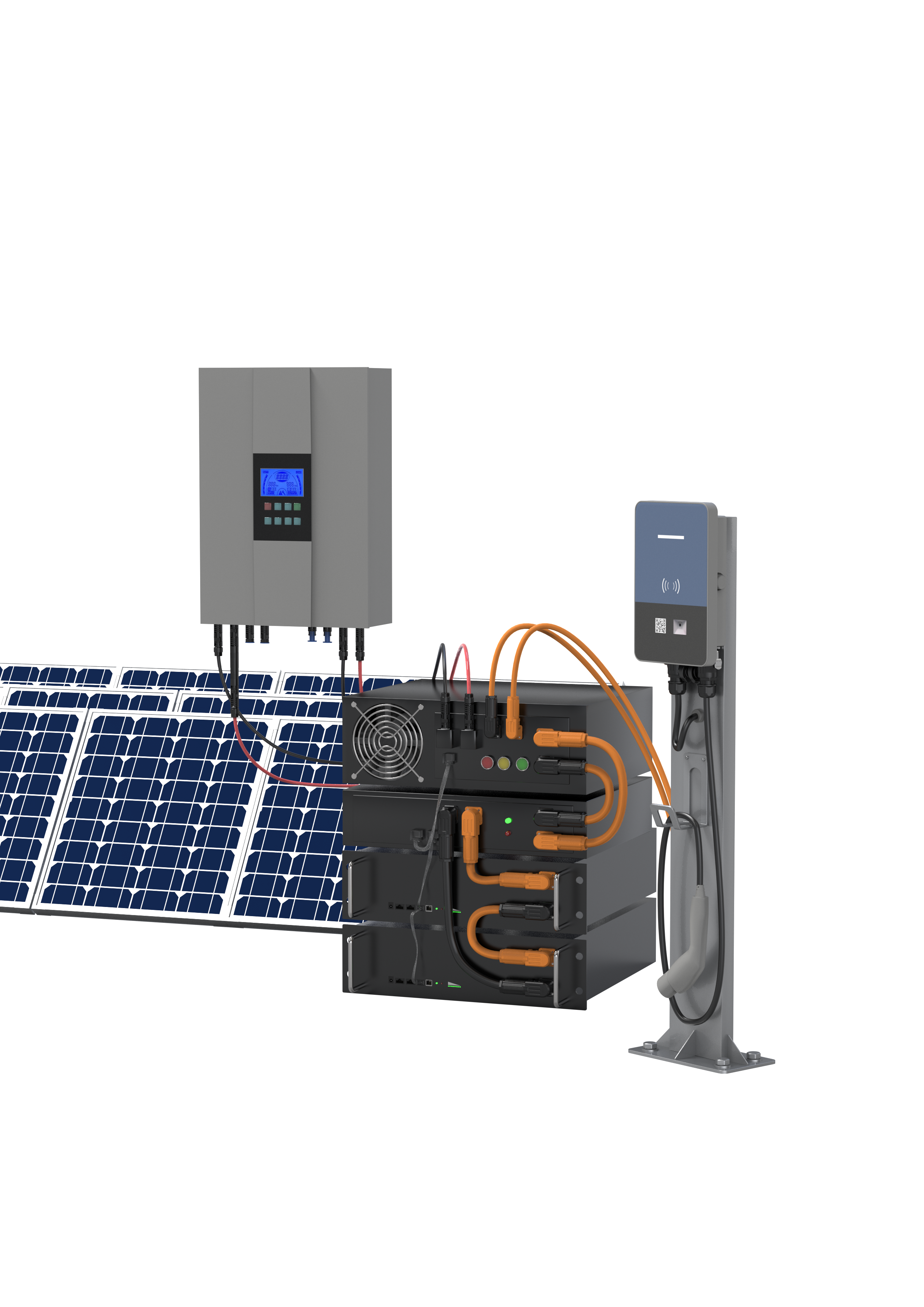

The application of these specialized connectors within a typical BESS illustrates their multifaceted role in system architecture and safety. Within a battery module, cells are interconnected using robust connectors designed for low resistance and excellent thermal management to prevent hot spots. These modules are then aggregated into racks, where high-power connectors link them in series and parallel to achieve the required system voltage and capacity, often exceeding 1000VDC and hundreds of amps.

These inter-rack connections must be designed for flawless engagement and disengagement, often utilizing blind-mate or quick-connect features to facilitate safe installation and maintenance by technicians. Furthermore, the main DC output from the battery bank to the power conversion system (PCS) requires the most robust connectors of all, capable of handling peak fault currents without welding or degradation. Beyond power, smaller, sealed signal connectors are used for the Battery Management System (BMS), continuously transmitting critical data on voltage, temperature, and state of charge. The integrity of these signal connections is equally vital, as a single faulty sensor reading could lead to improper charging and a safety hazard.

The strategic specification of high-performance connectors delivers a powerful and multi-layered return on investment (ROI) that is critical for the economic viability of any energy storage project. The most significant value is realized through enhanced safety and risk mitigation. A connector failure that triggers a thermal event can lead to millions of dollars in asset loss, not to mention immense reputational damage and potential liability. Premium connectors, with their superior materials (e.g., high-conductivity copper alloys), precision machining, and secure locking mechanisms, are a primary defense against such catastrophes.

Secondly, they ensure maximum energy efficiency. Low-electrical-resistance connections minimize parasitic power loss as current flows through the system; over the 15-20 year lifespan of a BESS, this saved energy translates into a substantial amount of additional revenue from energy arbitrage and grid services. Finally, they reduce operational expenditures (OpEx). connectors designed for easy mating and unmating reduce maintenance time and labor costs during inspections or module replacements, while their inherent durability eliminates the need for frequent re-tightening or replacement due to creep or corrosion. This combination of safety, efficiency, and low maintenance makes them a foundational investment for a profitable and sustainable energy storage asset.

The critical performance demands on these connectors are pushed to their absolute limits in the world's most challenging new energy applications. In large-scale grid storage facilities located in deserts, connectors must withstand extreme daily temperature swings, UV radiation, and abrasive dust without degrading. For offshore battery systems supporting wind farms, they must resist constant saltwater spray and corrosive atmospheres, requiring materials like marine-grade stainless steel and advanced sealing.

In cold climate installations, connectors must remain mechanically functional and electrically sound at temperatures far below freezing, with elastomer seals that do not become brittle. The rise of mobile energy storage, such as in containerized systems for temporary grid support or disaster relief, introduces constant vibration and mechanical shock that can loosen inferior connections. In each scenario, the connector is not just a passive component but an active guardian of system performance, ensuring that energy is available precisely when and where it is needed most, regardless of the environmental duress.

Selecting the optimal battery storage connector is a complex systems engineering decision that must balance electrical, mechanical, and environmental factors with total cost of ownership. The primary electrical considerations are current rating (continuous and peak), voltage level, and electrical resistance, which must be meticulously calculated to minimize losses and thermal rise under full load. The mechanical interface is equally critical; many systems utilize threaded coupling for the highest vibration resistance, while others may prefer a quick-disconnect design for operational flexibility.

The material science behind the connector is paramount: contact materials must offer high conductivity and resistance to welding, while housings often require UL94 V-0 rated plastics or metals for flame retardancy. Environmental sealing to at least IP67 is a baseline requirement for most installations to guard against dust and moisture ingress. Furthermore, with safety as a paramount concern, connectors should be certified by internationally recognized bodies (e.g., UL, TÜV) for their intended use. Partnering with a manufacturer that provides comprehensive technical data, simulation support, and a proven track record in the energy sector is not a procurement decision—it is a strategic partnership in building a safer, more efficient, and more reliable energy future.
