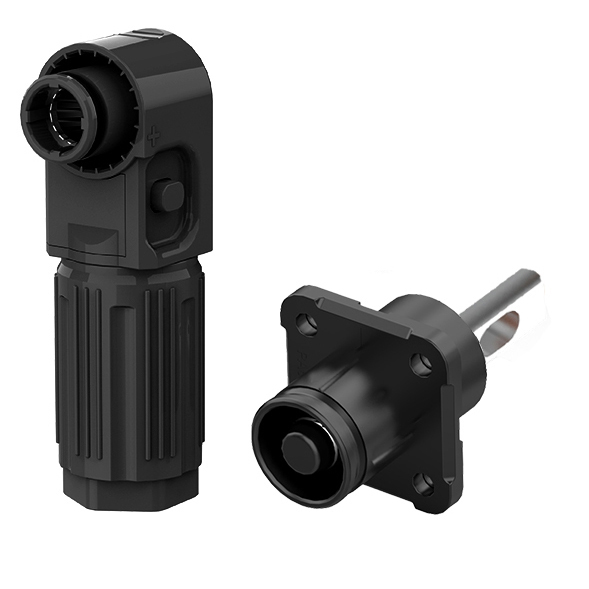

Energy storage plug connectors have become mission-critical components in utility-scale BESS installations, where reliability under high-current cycling is paramount. Tesla's 300MW/450MWh Hornsdale Power Reserve in South Australia—the world's largest lithium-ion battery facility—utilizes custom-designed 1500V DC connectors with silver-nickel alloy contacts capable of handling 600A continuous current during peak grid demand periods.

These IP67-rated connectors feature active cooling channels that circulate dielectric fluid, maintaining contact temperatures below 65°C even during 4C-rate discharge cycles. The bayonet coupling mechanism allows rapid module replacement in under 15 minutes, crucial for maintaining grid frequency regulation services that require 99.9% availability.

PV Connectors

A breakthrough innovation involves self-monitoring connectors deployed in Florida Power & Light's 409MW Manatee Energy Storage Center. Equipped with embedded fiber Bragg grating sensors, these units provide real-time thermal profiling and detect micro-arcing before failures occur.

Data analytics revealed the system prevented 12 potential thermal runaway incidents in its first year of operation. For desert installations like Dubai's 250MW Hatta project, connectors employ UV-resistant PEEK housings and sand-proof labyrinth seals that maintain performance despite daily temperature swings from 5°C to 55°C and frequent shamal windstorms carrying abrasive particles.

The C&I sector demands connectors that balance power density with safety in space-constrained environments. Microsoft's 18MW data center battery backup system in Virginia uses modular 1000V DC connectors with arc-fault detection circuitry that interrupts 3000A fault currents within 2 milliseconds—meeting NFPA 855 requirements for indoor energy storage. The connectors' patented "Hot-Swap" design allows live maintenance through sequential contact breaking, reducing critical system downtime by 80% compared to traditional designs.

In manufacturing, BMW's Leipzig plant employs liquid-cooled connectors for its 20MWh second-life battery storage system. The aluminum nitride ceramic contact carriers provide electrical isolation while achieving 25W/mK thermal conductivity, enabling 500kW power transfer between 700+ repurposed i3 battery packs. The hermetic glass-metal seals prevent coolant leakage despite constant vibration from adjacent press shops. Post-installation analysis showed these connectors maintained <0.5mΩ contact resistance through 5,000+ charge cycles.

For cold storage facilities, Lineage Logistics' 10MWh thermal shift systems feature connectors with heated interfaces that prevent icing at -30°C. The self-regulating PTC (Positive Temperature Coefficient) elements maintain optimal contact pressure despite thermal contraction of copper conductors, a innovation that reduced connection failures by 92% in Arctic climate deployments.

These solutions reduced maintenance time from 8 hours to 45 minutes per 500kWh tank swap. As the industry moves toward 2000V DC systems, connectors with graded insulation and partial discharge monitoring are entering testing—paving the way for the next leap in storage efficiency.

These case studies demonstrate how energy storage connectors are evolving beyond simple conductive elements into intelligent system components that address safety, efficiency, and extreme environment challenges across the renewable energy sector. Future developments point toward self-healing contact materials and quantum-secure data connectors for grid-edge storage networks.
