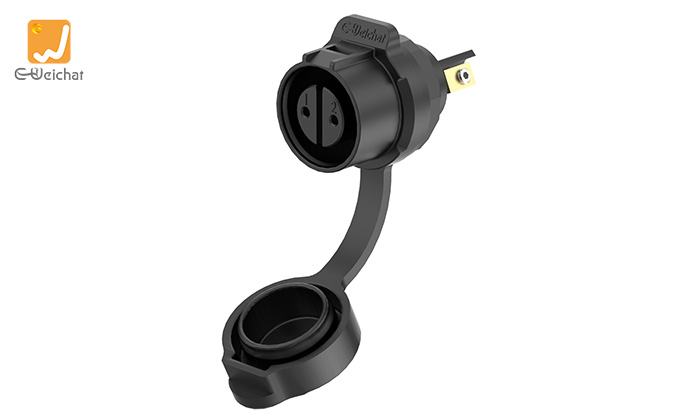

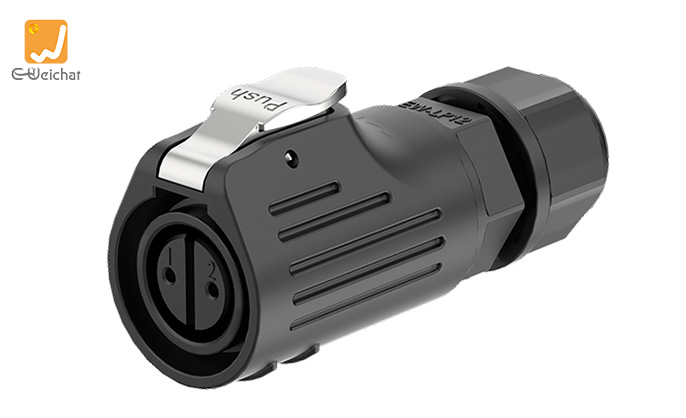

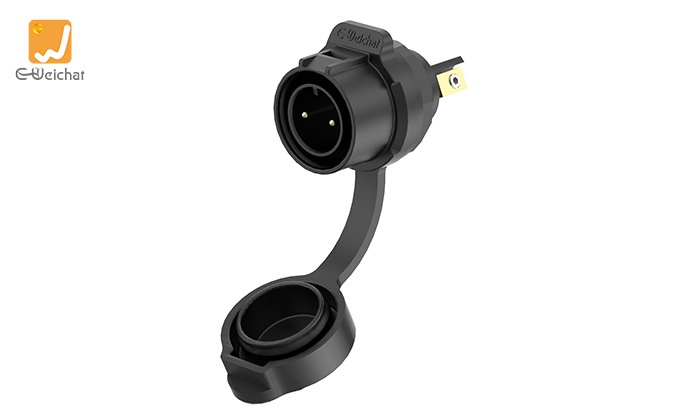

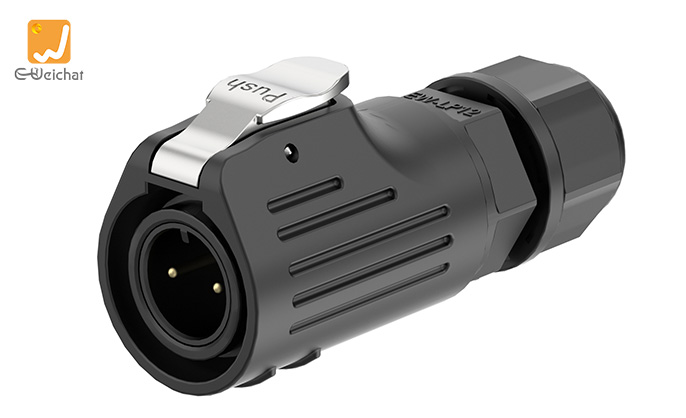

LP12 2 Pin Panel Outdoor Waterproof Wire Connectors Aviation Waterproof Connector Screw Connection Type All Plastic

Main parameter
Wiring ModeScrew Type
Installation ModePanel Type
Pins 2pins
Material Plastic
Applicable Wire Gauge0.75~1 mm²
Waterproof Ring5-7mm
Protection LevelIP67
Part NoEW-LP12S-0215BMB07/EW-LP12L-02151FB/EW-LP12S-0215BFB07/EW-LP12L-02151MB
Product Categories
Product Specifications
Product features Product parameters Product size Product recommendations Product application
Product features

LP Waterproof Connector

Product parameters
Product LP12 LP16 LP20 LP24 LP28
Number of Pins 2-8P 2-9P 2-5/7/9/12P 2-24P 2-6/8P
Rated Current 5/3A 10/5A 20/10/5A 30/10/5A 35/30/15A
Rated Voltage 125/100V 500/250V 500/250V 500/400/250V 500/400/300V
Wire Section 0.34-0.5m㎡ 1-1.5/03.4-0.75m㎡ 2.5-4/1-1.5/0.34-0.75m㎡ 4/1.5/0.5m㎡ 16/10/6/4m㎡
Temperature Range -40℃ ~ +105℃
Cable Diameter Φ3-Φ6mm Φ4-Φ9mm Φ8-Φ12mm Φ9.5-Φ14mm Φ13-Φ20.5mm
