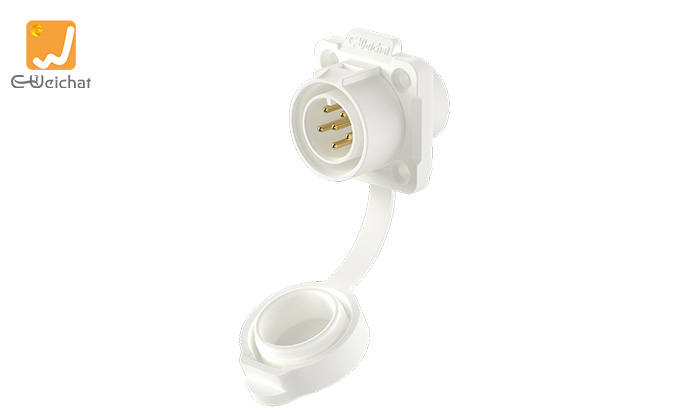

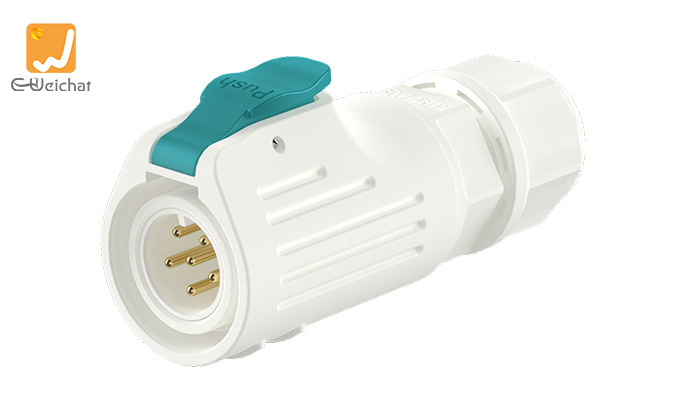

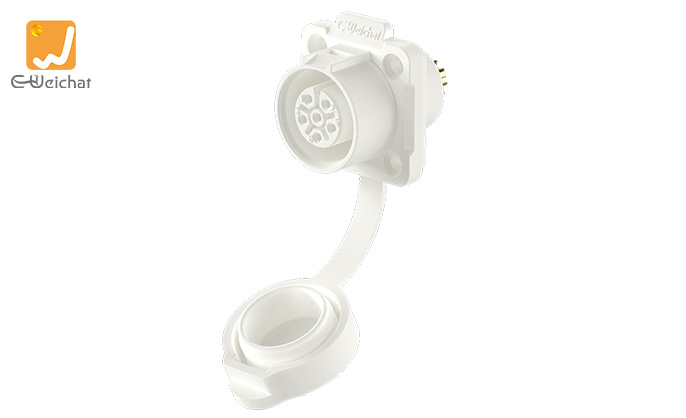

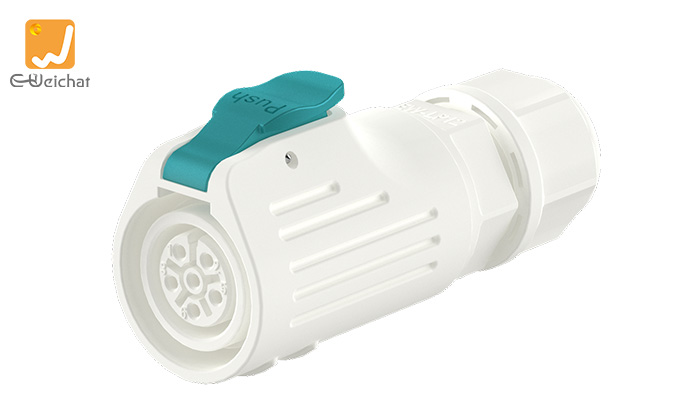

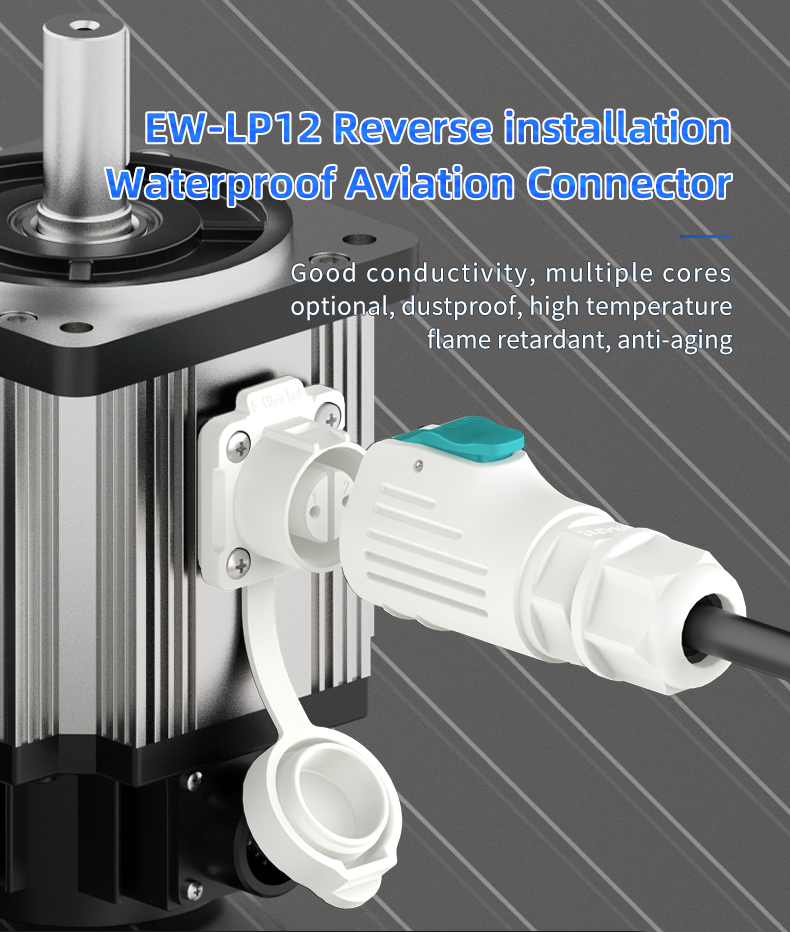

LP12 White Flange 6 Pin Industrial Waterproof Connector Aviation Plug Connector Socket

Main parameter

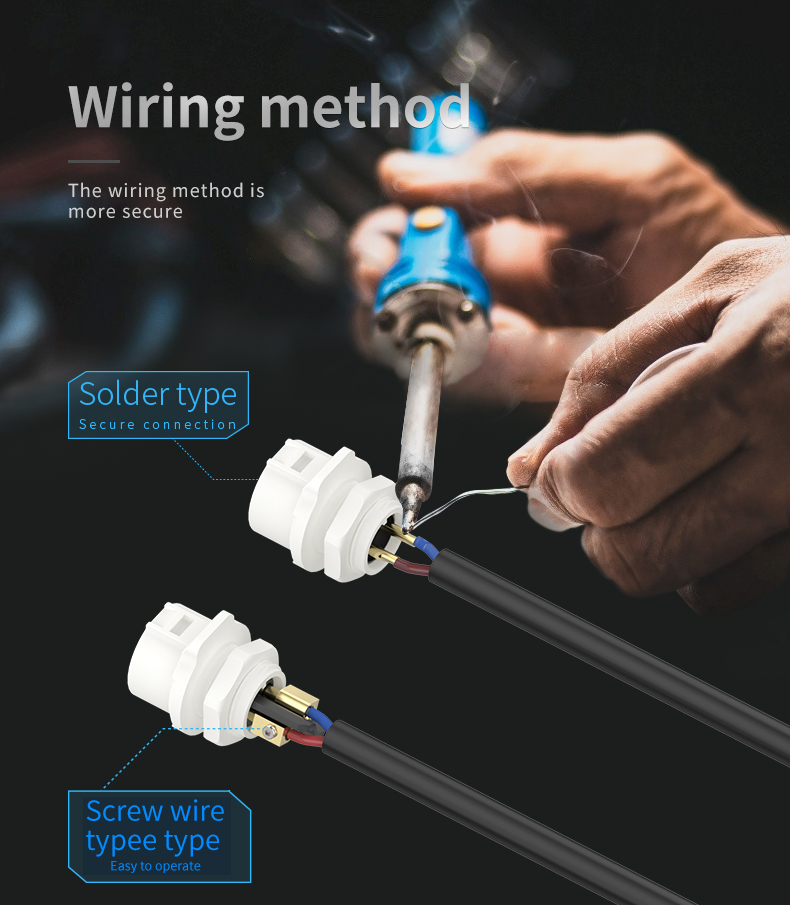

Wiring ModeSolder Type
Installation ModeFlange Type
Pins 6pins
Material Plastic
Applicable Wire Gauge0.34~0.75 mm²
Waterproof Ring5-7mm

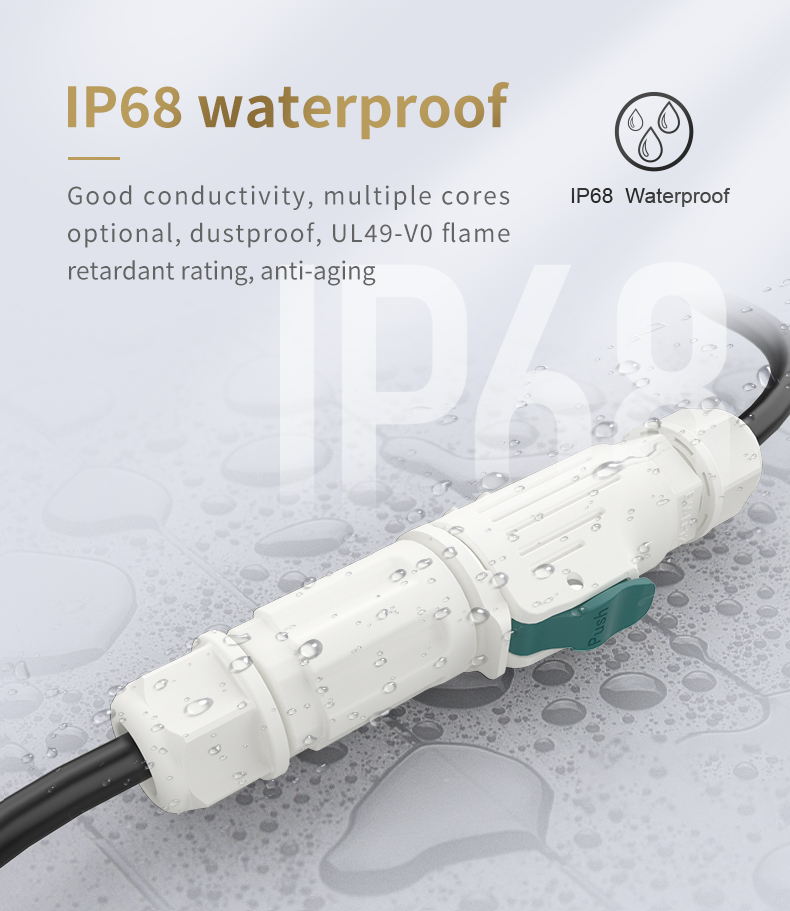

Protection LevelIP67
Part No
Product Specifications
Product features Product parameters Product size Product recommendations Product application

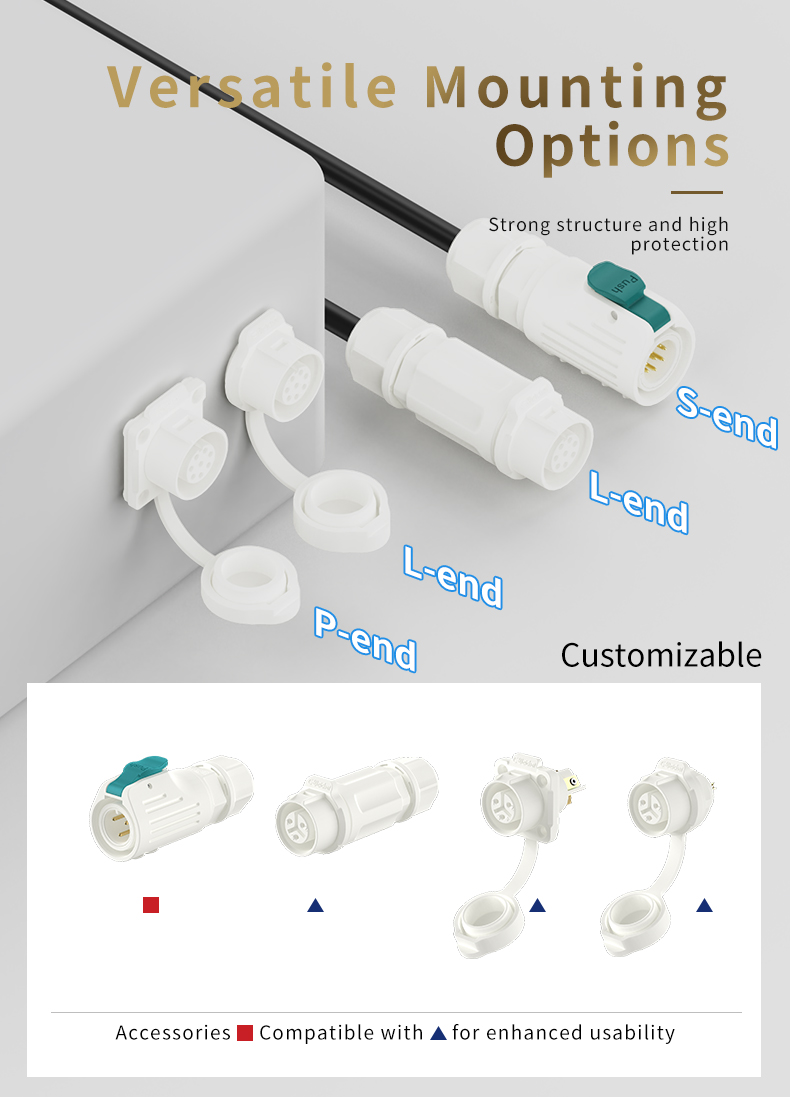

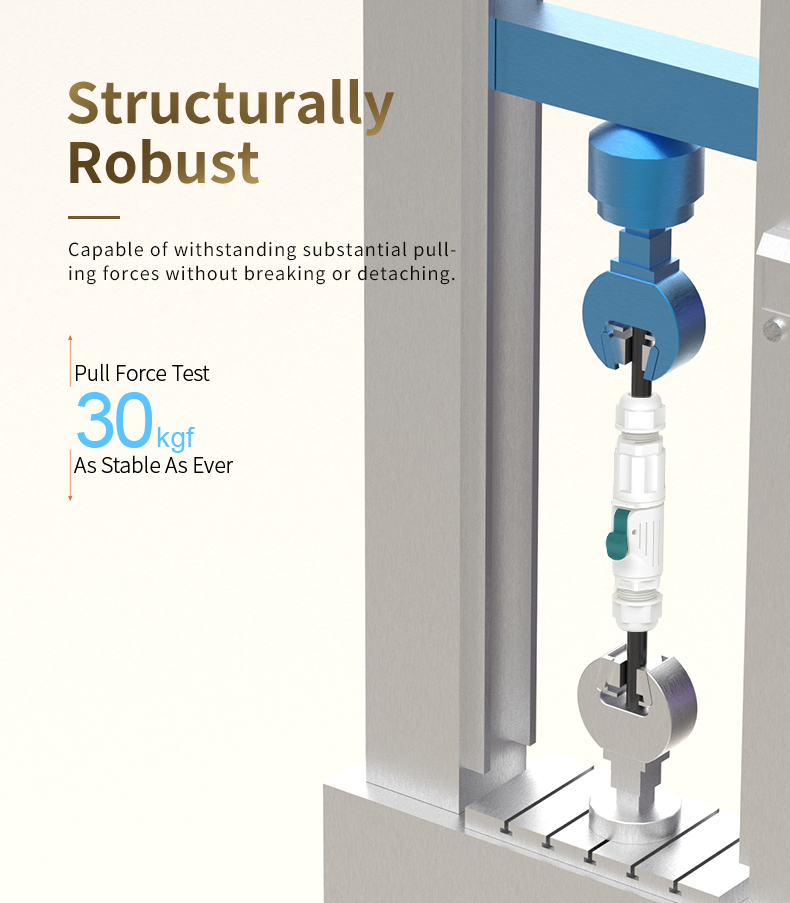

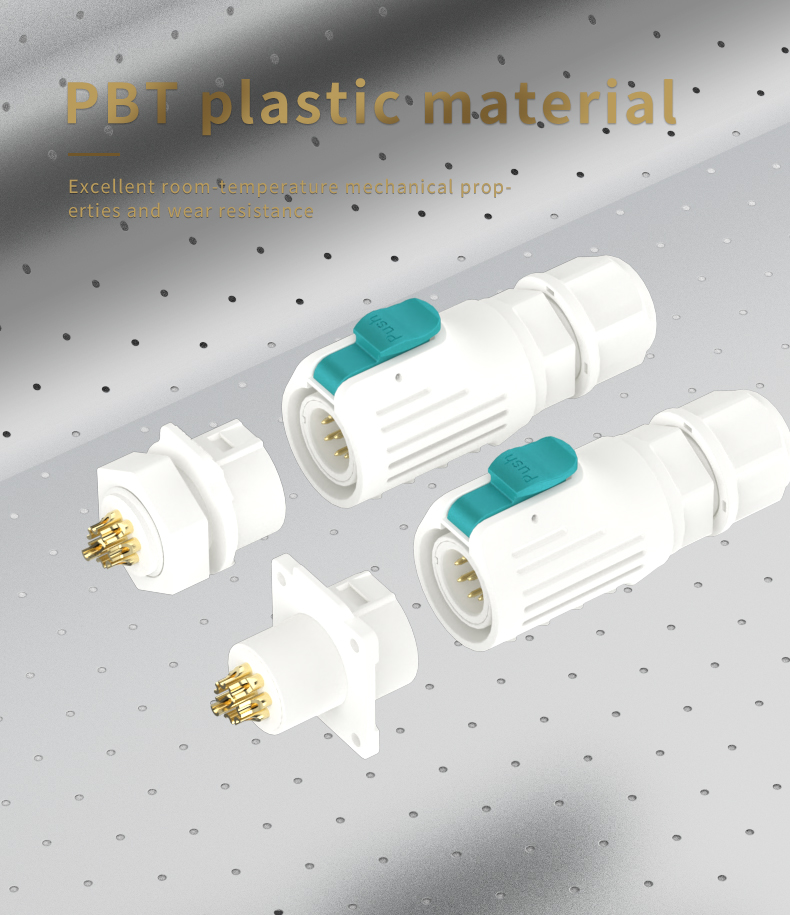

Product features

LP Waterproof Connector

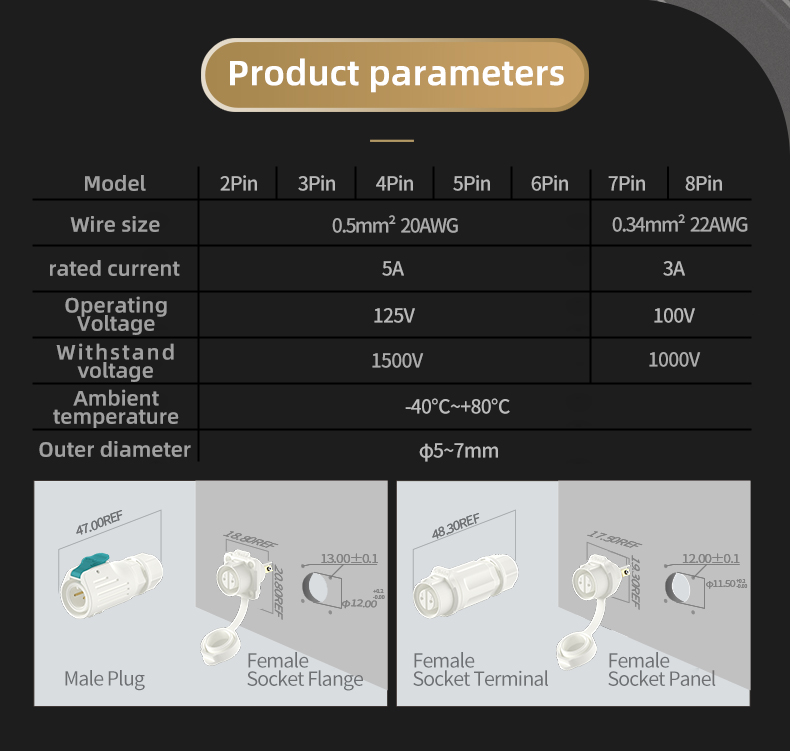

Product parameters
Product LP12 LP16 LP20 LP24 LP28
Number of Pins 2-8P 2-9P 2-5/7/9/12P 2-24P 2-6/8P
Rated Current 5/3A 10/5A 20/10/5A 30/10/5A 35/30/15A
Rated Voltage 125/100V 500/250V 500/250V 500/400/250V 500/400/300V
Wire Section 0.34-0.5m㎡ 1-1.5/03.4-0.75m㎡ 2.5-4/1-1.5/0.34-0.75m㎡ 4/1.5/0.5m㎡ 16/10/6/4m㎡
Temperature Range -40℃ ~ +105℃
Cable Diameter Φ3-Φ6mm Φ4-Φ9mm Φ8-Φ12mm Φ9.5-Φ14mm Φ13-Φ20.5mm
Product size
